HIR15/RC05
PIR Highbay | 0-10V dimmable | Adjustable detection range
CARACTERÍSTICAS
- Cost-effective: Small IP65 Sensor Zhaga Book 18 Ready
- Practical: Motion & Daylight Sensing Integrated
- User-friendly: All sensor settings via IR controller-HRC05
APLICACIONES

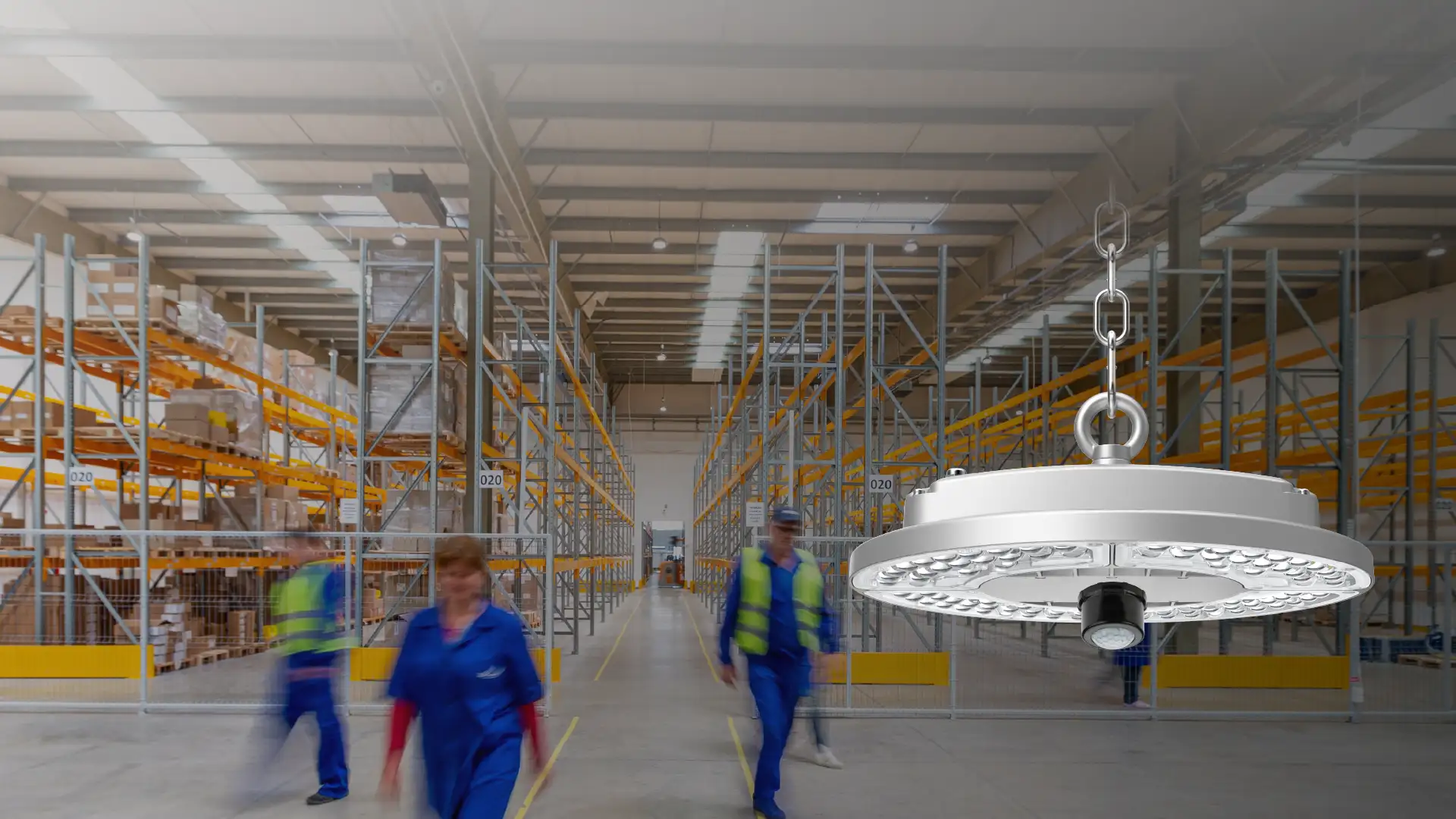

- UFO luminaires with a height of up to 15m
- Warehouse/ Logistic
- Outdoor/Street lights
Información sobre el producto "HIR15/RC05"
HIR15/RC05 is an PIR motion sensor and compatible with the Zhaga book 18 standard. With daylight sensor instance, it achieves dimming control. HIR15/RC05 is also designed with a robust IP65 structure and suitable for high-bay applications as the capacity can be up to 15m installation height, which is ideal for the typical outdoor lamp (such as a streetlight).
| Aprovechamiento de luz diurna: | Sí |
|---|---|
| Grado de protección IP: | IP65 |
| Human Centric Lightning (HCL): | No |
| Humedad máx: | 90 % |
| Humedad mín: | 0 % |
| Inicialización: | 30 s |
| Interfaz de regulación: | 0-10V |
| Métodos de detección: | Infrarrojo Pasivo (PIR) |
| Métodos de puesta en marcha: | Mando a distancia IR |
| Rango de detección (Diámetro): | 20×15 |
| Temperatura ambiente máx.: | 50 °C |
| Temperatura ambiente mín.: | -25 °C |
| Temperatura de almacenamiento max. : | 70 °C |
| Temperatura de almacenamiento min. : | -35 °C |
| Tipo de lente: | High-bay |
| Tipo de montaje: | Para integrar, Zhaga |
| Tri-nivel (Función pasillo): | No |
| Voltaje de salida: | 0-10 V |
| Ángulo de detección: | 360° |
Fichas técnicas
Ficha técnica del producto: hir15-rc05.pdf
