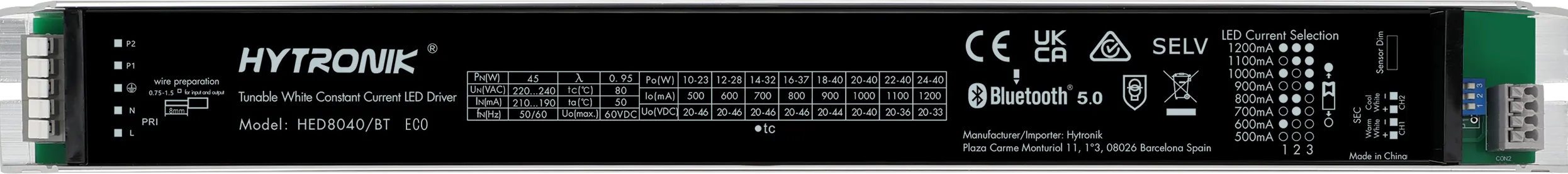

HED8040/BT ECO
Bluetooth LED Driver 40W (CC) | Tunable white | Built-in
FEATURES
- Compact: Constant current LED Driver with Bluetooth interface
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Produktinformationen "HED8040/BT ECO"
HED8040/BT is a Bluetooth dimming and color tuning LED driver with 40W max power output. It has a Switch-Dim interface via a Push switch. It is ideal for direct projects or new luminaire designs for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects.
| Ausgangsleistung: | 26 - 44W |
|---|---|
| Betriebsart: | Konstantstrom |
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Bluetooth-Plattform: | Nordic nRF52832 |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Einbauöffnung: | 4.2000 mm |
| Human Centric Lightning (HCL): | Ja |
| IP-Schutzart: | IP20 |
| Installationstyp: | Einbau |
| Korridorfunktion: | Nein |
| Produktbreite: | 32.0000 mm |
| Produkthöhe: | 27.0000 mm |
| Produktlänge: | 330.0000 mm |
| Treiber Typ: | Dimmung und Farbsteuerung |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 88 % |
