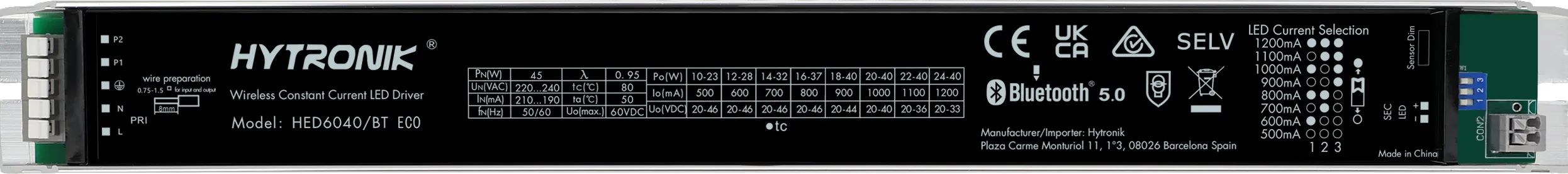

HED6040/BT ECO

Bluetooth LED Driver 40W (CC) | Dimmable | Built-in

FEATURES

Compact: Constant current LED Driver with Bluetooth interface
Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh

ANWENDUNGEN

Retrofit projects with no extra wiring for control
Offices
Classrooms

Datenblatt herunterladen

Produktinformationen "HED6040/BT ECO"

HED6040/BT ECO is a Bluetooth dimming LED driver with 40W max poweroutput. It has a Switch-Dim interface via a Push switch. It is ideal for direct projects or new luminaire designs for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects.

Ausgangsspannung:	20-46V
Betriebsart:	Konstantstrom
Betriebsspannung:	220-240 VAC 50/60 Hz
Bluetooth Frequenz:	2.4 GHz - 2.483 GHz
Bluetooth Reichweite:	10-30m
Bluetooth Sendeleistung:	4 dBm
Bluetooth System:	Koolmesh
Dimm-Schnittstelle:	Switch-Dim
Human Centric Lightning (HCL):	Nein
IP-Schutzart:	IP20
Inbetriebnahme-Methoden:	App & Web (Bluetooth), DIP-Schalter
Installationstyp:	Einbau
Korridorfunktion:	Nein
Lagertemperatur:	70 °C
Max. Luftfeuchtigkeit:	90 %
Min. Lagertemperatur:	-40 °C
Min. Luftfeuchtigkeit:	10 %
Produktbreite:	39.7000 mm
Produkthöhe:	21.3000 mm
Produktlänge:	358.0000 mm
Taster Eingänge:	2
Treiber Typ:	Nur Dimmung
Umgebungstemperatur max.:	50 °C
Umgebungstemperatur min.:	-20 °C
Wirkungsgrad:	88 %
