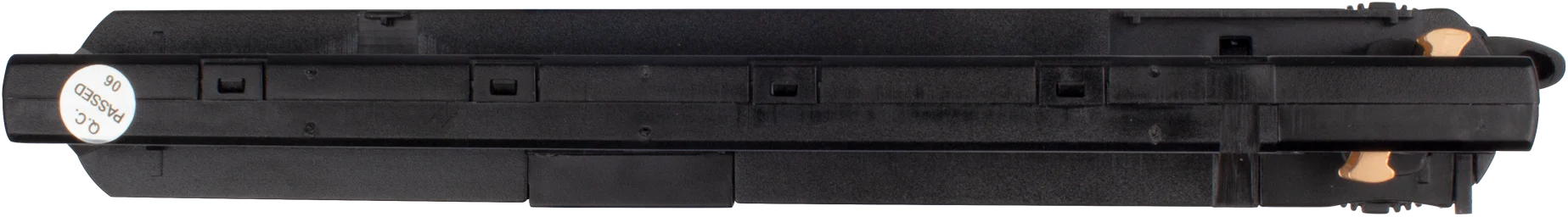

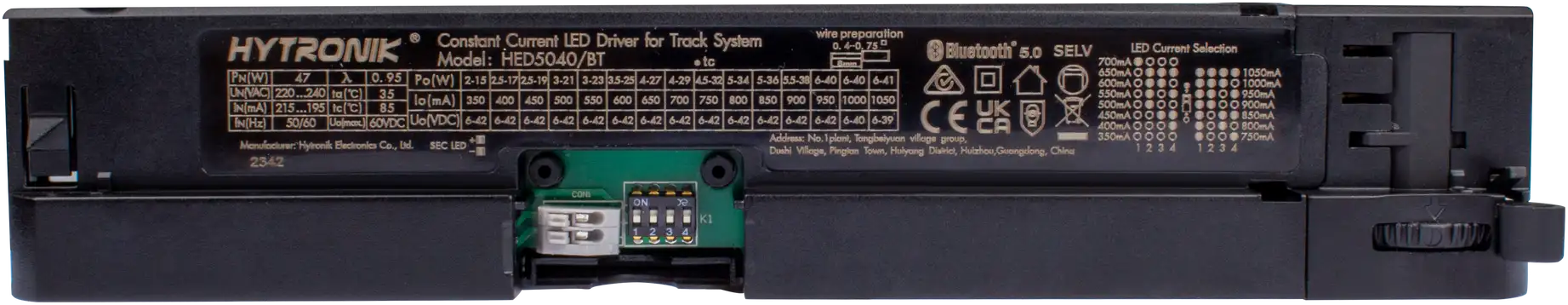

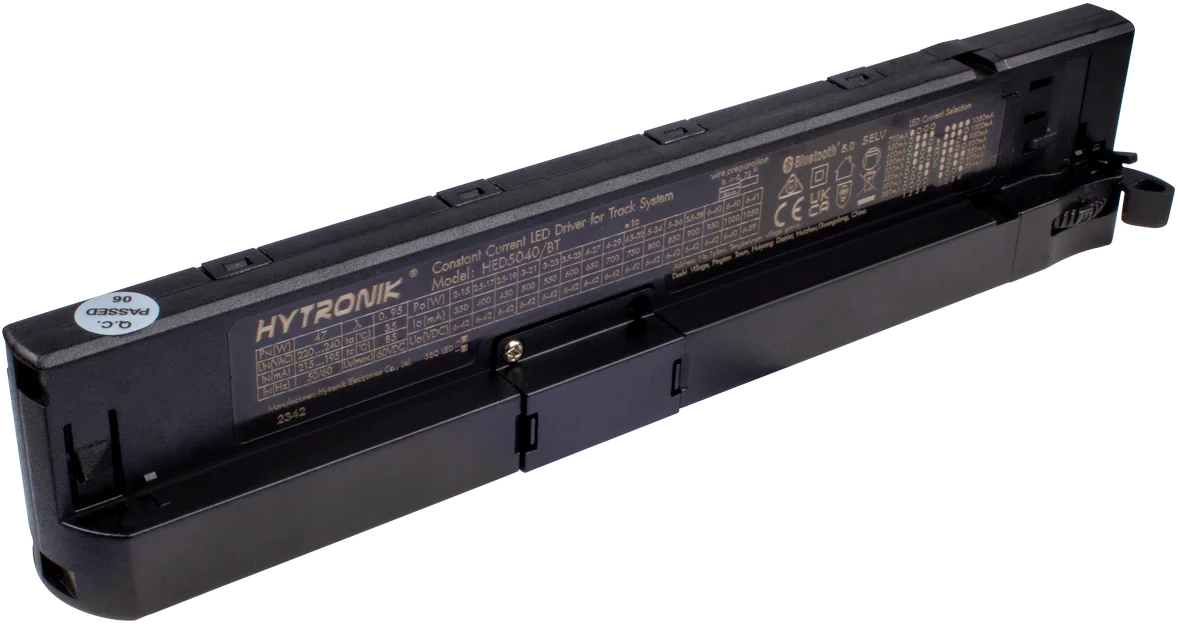

HED5040/BT
Bluetooth LED Driver 40W Dimmable | 6 Wires 3 Circuits | Track System Stucci
Vorteile
- Standardized: 3-phase dial for phase selection
- Professional: Bluetooth dimming interface via Koolmesh app
- Easy configuration: via Dip-switch/Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Designed to fit into stucci track system
- Offices, Retail stores, Warehouse
- Museums, Galleries
Produktinformationen "HED5040/BT"
HED5040/BT is a Bluetooth LED driver, with 3-phase dial and maximum
power output of 40W. The installation only requires simple insertion into the track. HED5040/BT has a Bluetooth dimming interface, is ideal for both
direct track light projects and new luminaires designed for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects. Meanwhile, all simple device setup and commissioning can be done via Koolmesh app.
| Ausgangsspannung: | 6~42V |
|---|---|
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Dimmschnittstelle: | DALI |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Installationstyp: | Stromschienen Beleuchtung |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Operating Mode: | Constant Current |
| Product height: | 43.4000 mm |
| Produktlänge: | 230.5200 mm |
| Produkttiefe: | 31.0000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | |
| Treiber Typ: | Dimming Only |
| Umgebungstemperatur: | 35 °C |
| Umgebungstemperatur min.: | -10 °C |
| Wirkungsgrad: | 88 % |
