HC005S/BT
HF Lowbay | Bluetooth/ ON/OFF | Photocell Advance
Vorteile
- Compact: Super compact size - ON/OFF Sensor
- Simple: Daylight, detection range and holdtime setting
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Produktinformationen "HC005S/BT"

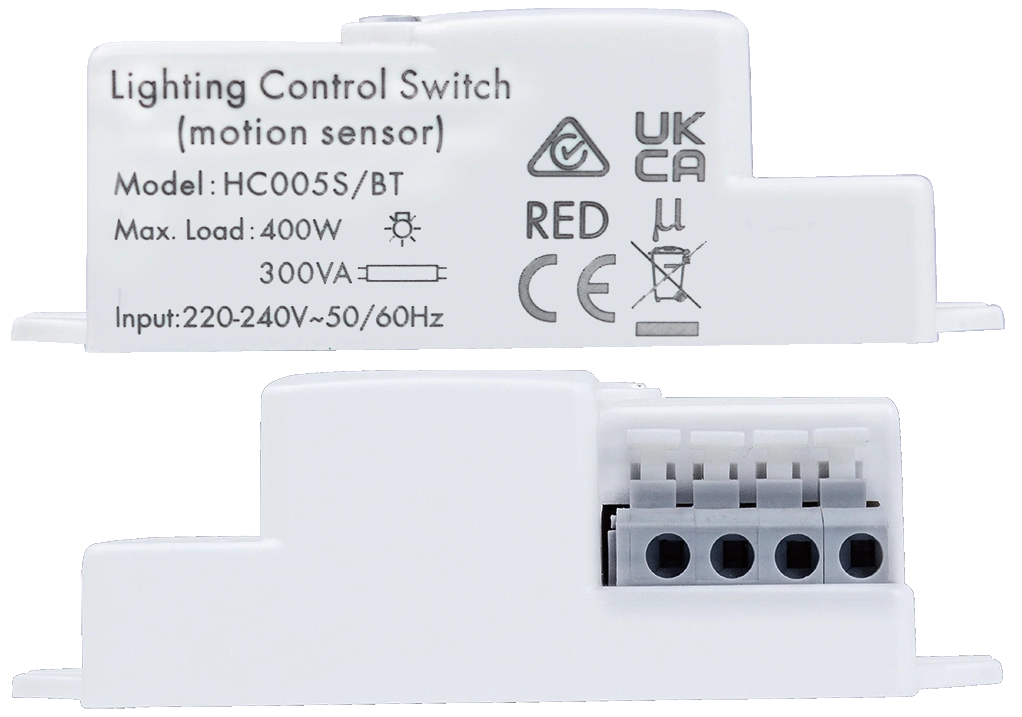

HC005S/BT is a Bluetooth built-inmicrowave motion sensor with ON/OFF control. It is designed for professional lighting manufactures who would like to incorporate wireless control into their luminaires. HC005S/BT is suitable for any typical indoor applications such as office, classroom, car park, warehouse and other commercial/industrial areas. With Bluetooth wireless mesh networking, it makes communication much easier without any hardwiring, which eventually adds values to luminaires and saves costs for projects. Meanwhile, simple device setup and commissioning can be done via koolmesh app.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | Relais On/Off |
Ausgangsspannung: | 220-240VAC 50/60Hz |
Befestigungsloch: | 4.2000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Daylight Harvest: | Ja |
Detektionsverfahren: | Microwave (MW) |
Erfassungsbereich (DxH): | 10x6 |
Features: | Daylight Harvest, Tri-level (Corridor Function) |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Ja |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Built-in |
Lens type: | Standard Low-bay |
Maximale Montagehöhe: | 6.0000 m |
Montagehöhe: | Low-bay |
Product height: | 26.0000 mm |
Produktlänge: | 80.5000 mm |
Produkttiefe: | 36.5000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Photocell Advance |
Taster Eingänge: | |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Zhaga: | No |
