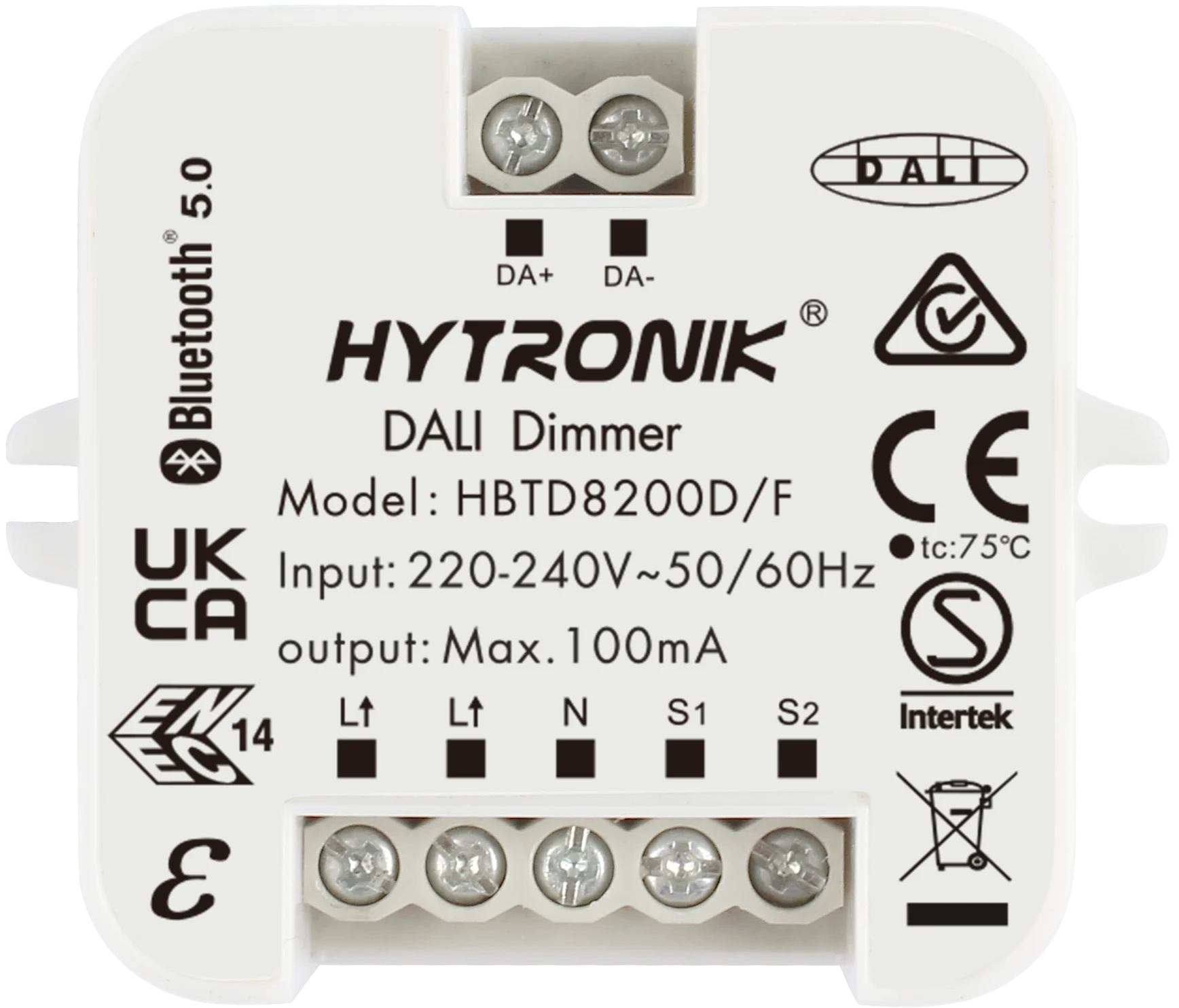

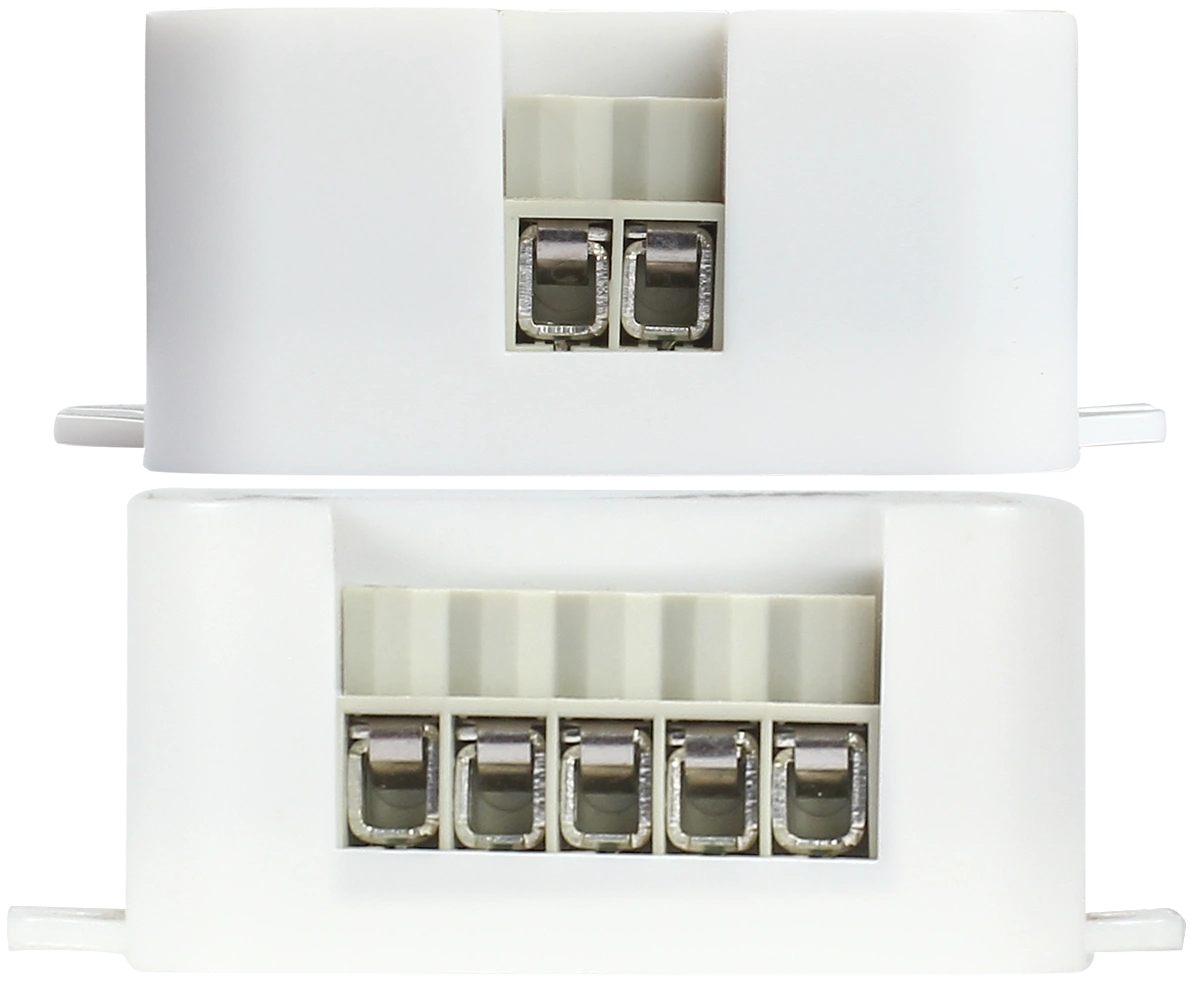

HBTD8200D/F
DALI/Bluetooth Converter | Integrated 100mA PSU | Screw Mounting
Vorteile
- Small: DALI/Bluetooth converter in a tiny module
- Professional: Powered-DALI to control DALI2 drivers
- Flexible: 2 Push inputs for manual control
ANWENDUNGEN

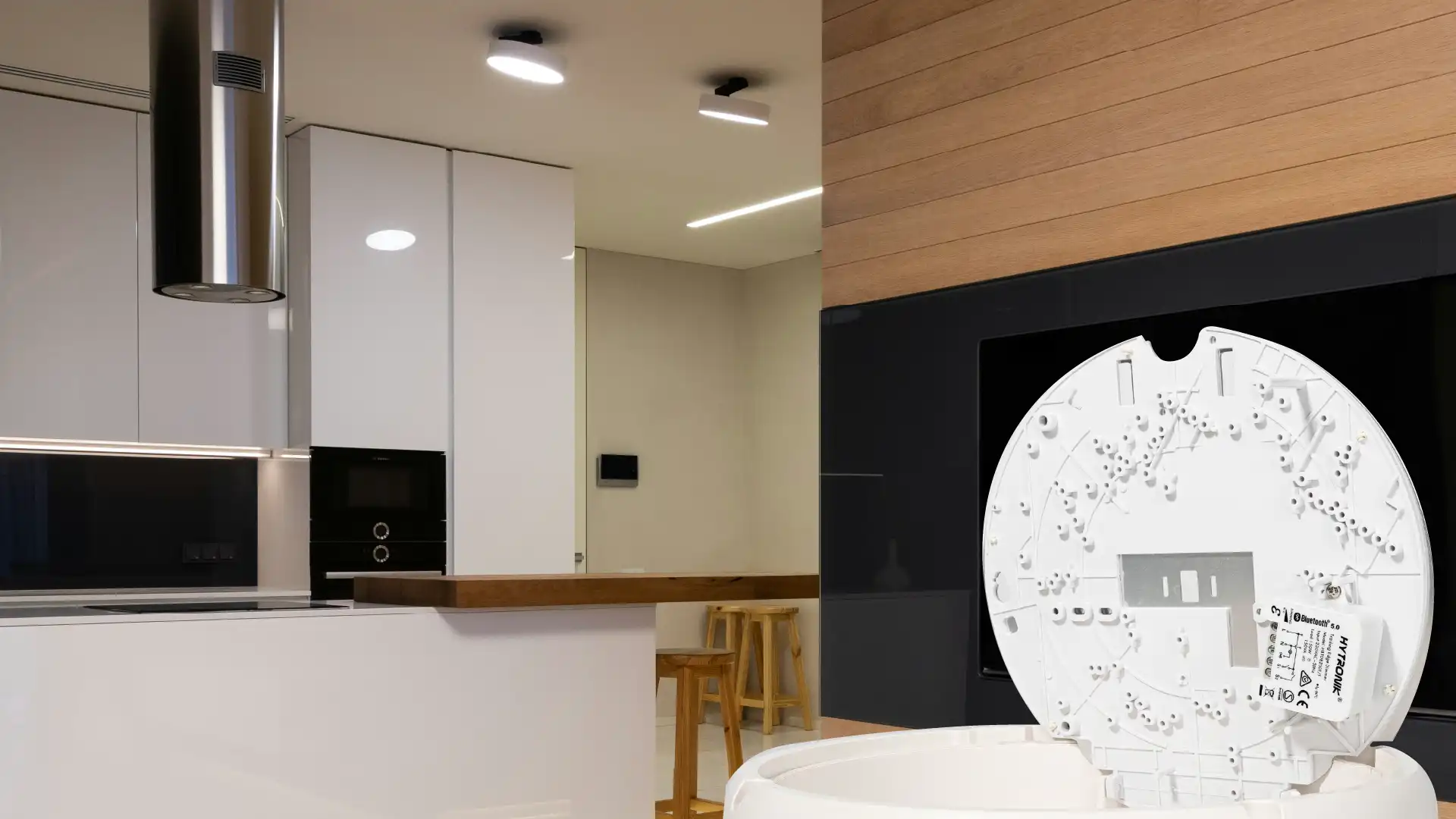

- Built-in luminaries
- Bluetooth receiver node
- Offices, Classrooms, Industry and Healthcare Spaces
Produktinformationen "HBTD8200D/F"
HBTD8200D/F is a Bluetooth Receiver Node with DALI Version .
Application Type: | Controller for Built-in Luminaire |
---|---|
Ausgangsschnittstelle: | DALI |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
DALI Max Geräteanzahl: | 50 |
Erforderlicher DALI-Strom: | 100.0000 mA |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Lagertemperatur: | 60 °C |
Lagertemperatur min.: | -20 °C |
Product height: | 22.0000 mm |
Produktlänge: | 58.0000 mm |
Produkttiefe: | 46.0000 mm |
Schutzart: | IP20 |
Taster Eingänge: | 2 |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 45 °C |
Umgebungstemperatur min.: | -20 °C |
Zhaga: | No |
