HBTD8200D
DALI/Bluetooth Converter | Integrated 100mA PSU | Wall Junction Box
Vorteile
- Small: DALI/Bluetooth converter in a tiny module
- Professional: Powered-DALI to control DALI2 drivers
- Flexible: 2 Push inputs for manual control
ANWENDUNGEN
- DALI Application
- Bluetooth receiver node
- Offices, Classrooms, Industry and Healthcare Spaces
Produktinformationen "HBTD8200D"

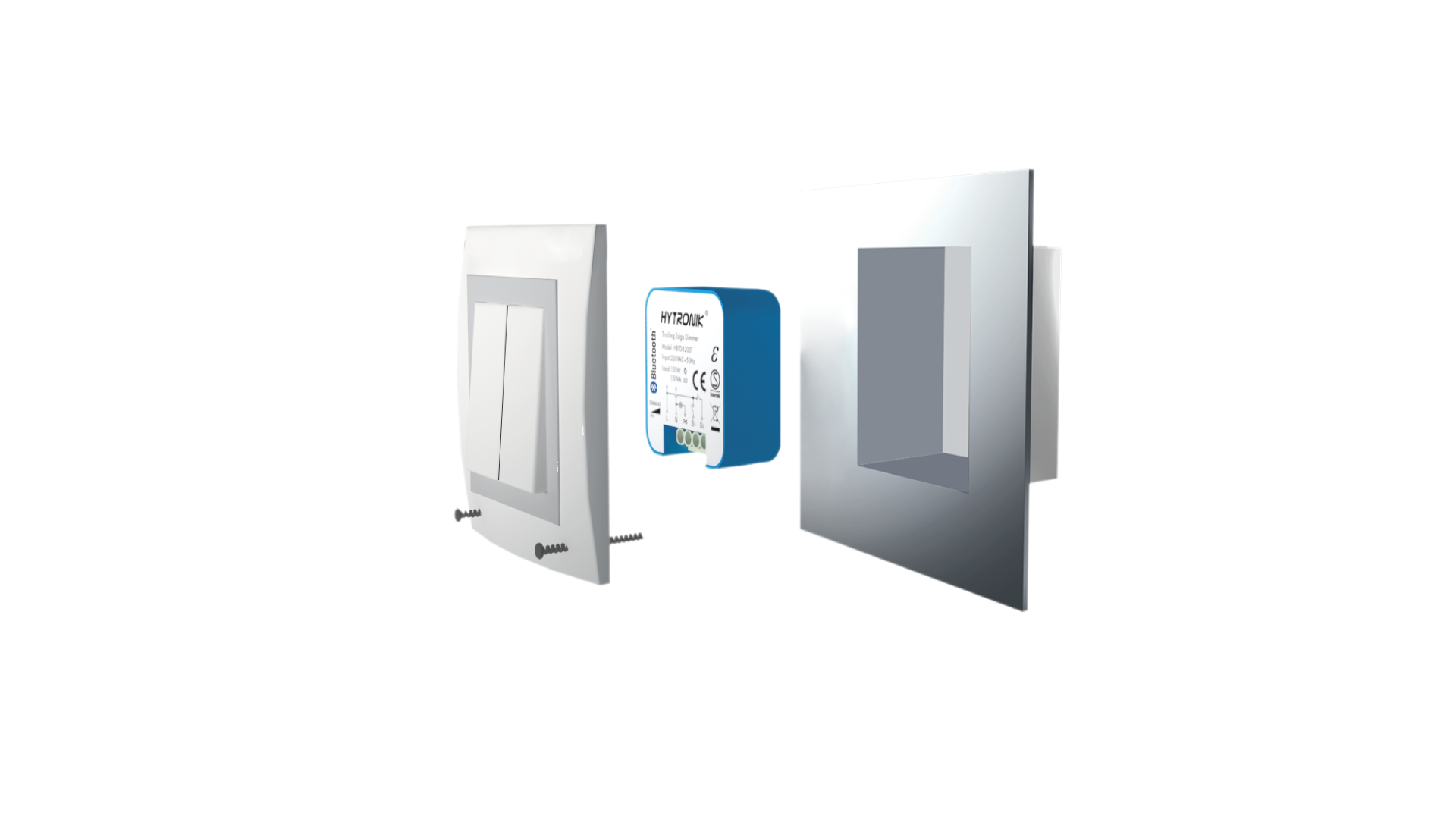

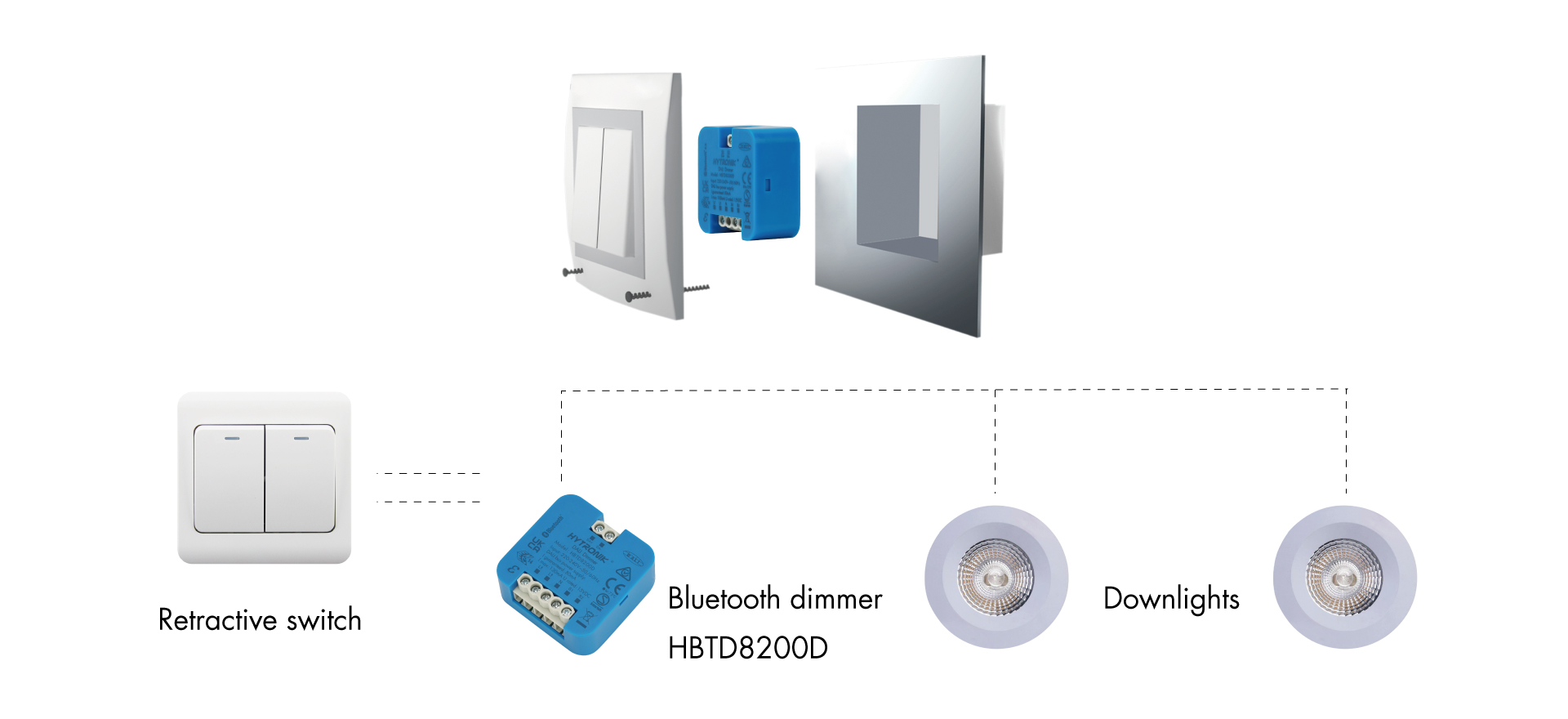

HBTD8200D is designed to fit into a junction box or
electrical box to make Push switch (retractive switch) to achieve
on/off control, dimming control, colour tuning and even scene
recall. Whether used for new build or retro-fit projects to add
intelligent control to standard lighting fixtures, HBTD8200 series
does it all. Simple device setup and commissioning can be done
via Koolmesh app.
Application Type: | Dimmers for Wall Junction Box |
---|---|
Ausgangsschnittstelle: | DALI & DALI-2 |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Product height: | 22.0000 mm |
Produktlänge: | 46.0000 mm |
Produkttiefe: | 46.0000 mm |
Schutzart: | IP20 |
Umgebungstemperatur: | 45 °C |
Umgebungstemperatur min.: | -20 °C |
Zhaga: | No |
