HBTD54
Bluetooth Dimmer | 6 Wires 3 Circuits| Track system stucci
Vorteile
- Integrated: Bluetooth module built-in + DALI broadcast output
- Standardized: 3-phase dial for phase selection
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Designed to fit into stucci track system
- Offices, Retail stores, Warehouse
- Museums, Galleries
Produktinformationen "HBTD54"

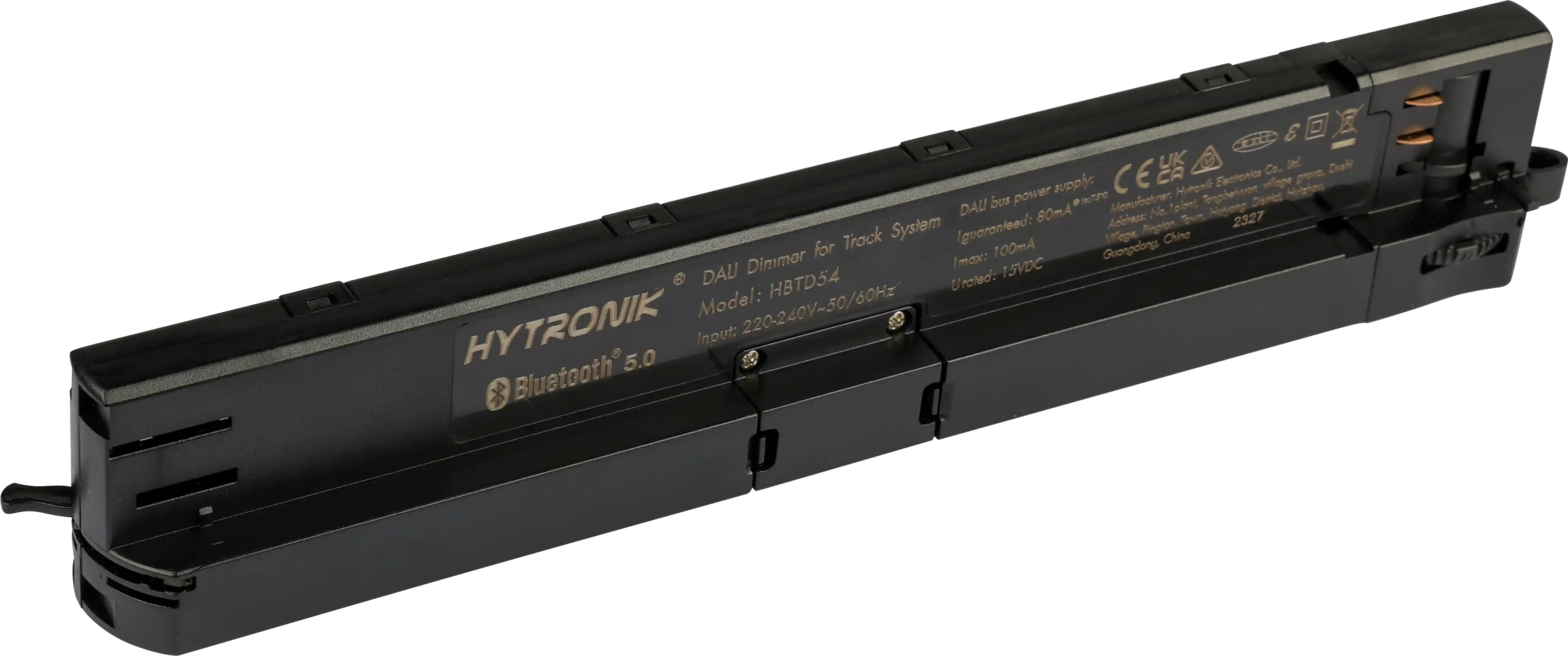

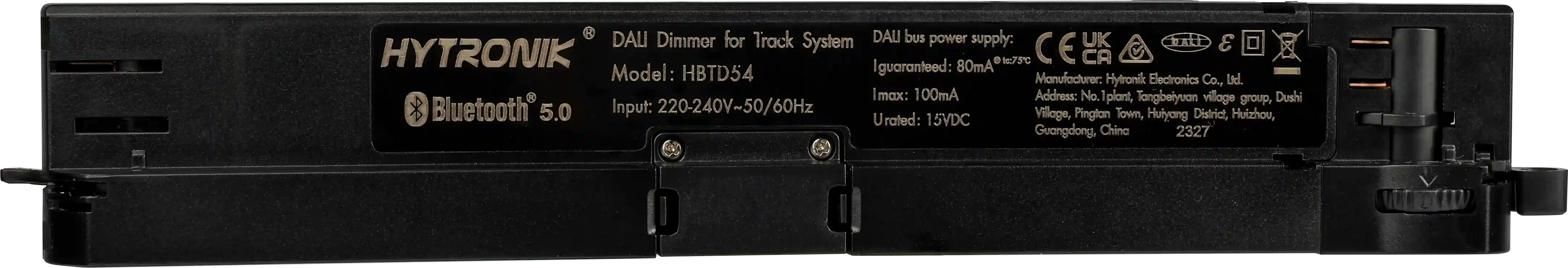

HBTD54 is a Bluetooth dimming controller for the DALI track system, with
3-phase dial, DALI broadcast output and PSU integrated. The installation only
requires simple insertion into the track, to achieve on/off control, dimming
control, colour tuning and even scene recall. HBTD54 is suitable for the track
light which used for new builds or retrofit projects to add intelligent control to
standard lighting fixtures. Moreover, HBTD54 is practical and good-looking
since needless wiring. All simple device setup and commissioning can be done via Koolmesh app.
| Application Type: | Controller for Track Lighting |
|---|---|
| Ausgangsschnittstelle: | DALI & DALI-2 |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Erforderlicher DALI-Strom: | 80.0000 mA |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Product height: | 45.9000 mm |
| Produktlänge: | 261.6000 mm |
| Produkttiefe: | 31.0000 mm |
| Schutzart: | IP20 |
| Taster Eingänge: | |
| Umgebungstemperatur: | 40 °C |
| Umgebungstemperatur min.: | -10 °C |
| Zhaga: | No |
