HBIR36
PIR Lowbay | Bluetooth DALI with PSU | Trailing-edge
Vorteile
- Adaptable: Lens and blind variants for different detection ranges
- No extra wiring: PIR sensor with phase-cut control and Bluetooth
- Easy: Motion and Daylight harvest configuration via Koolmesh app
ANWENDUNGEN
- Remote ceiling or surface mounting (with accessory)
- Retrofit installations with phase-cut luminaires
- Offices, classrooms, healthcare
Produktinformationen "HBIR36"

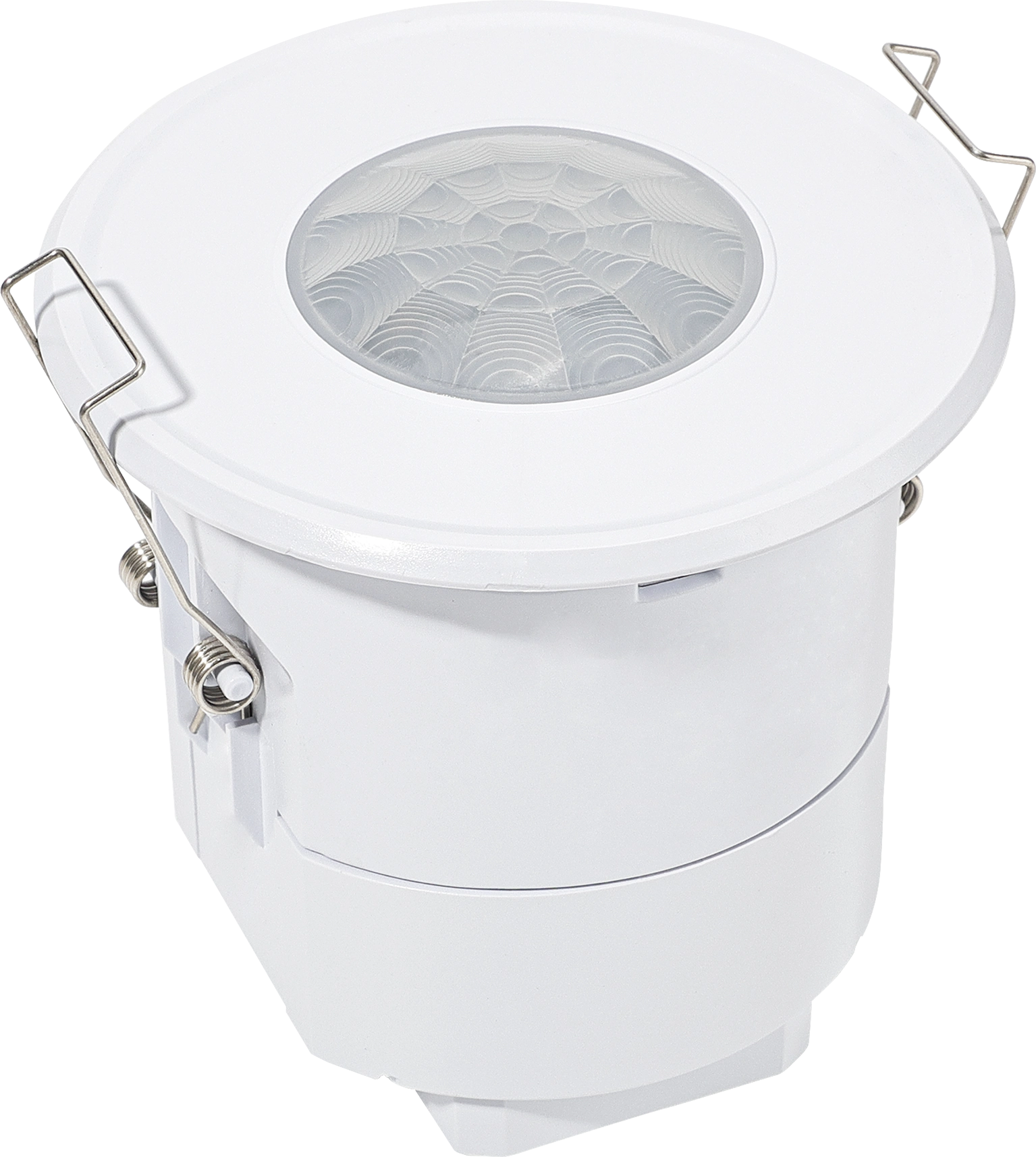

HBIR36 is a Bluetooth PIR motion sensor with 2 x 100VA trailing edge output, ideal for retrofitting traditional lamp installations. It uses Bluetooth wireless mesh networking for easy luminaire communication without additional wiring, making it perfect for hassle-free upgrades in old buildings. Commissioning is simple with the Koolmesh app.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | Trailing edge (Phasenabschnittsteuerung) |
| Befestigungsloch: | 66.0000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Daylight Harvest: | Nein |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 9x6 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Stand-alone |

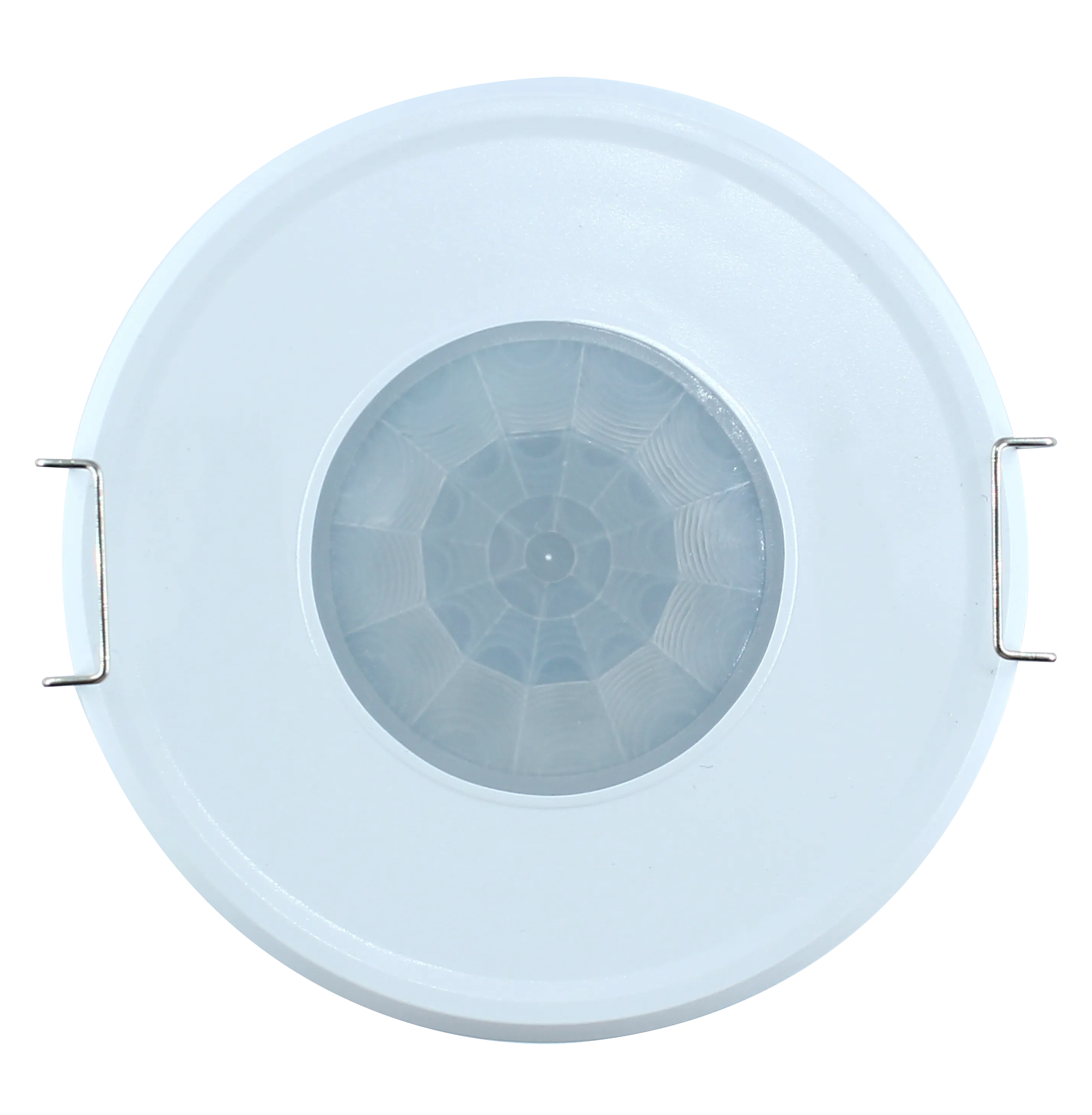

| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 75.2000 mm |
| Produkttiefe: | 78.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | 2 |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 45 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
