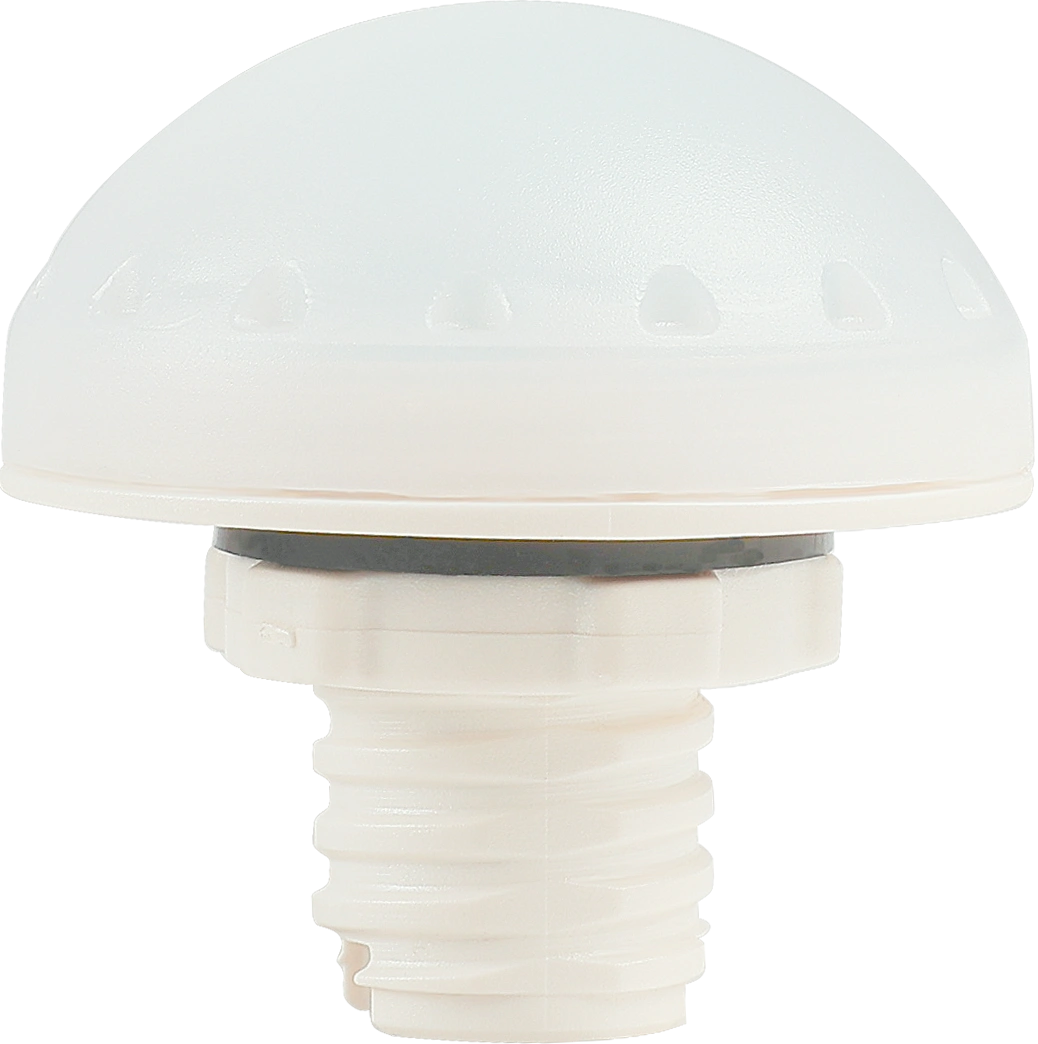

SAM5/IP65
HF Lowdbay IP65 | Tri-level dimming | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming control based upon occupancy
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Master luminaire with sensor
- Schools / Classroom
- Office/Commercial Lighting
Produktinformationen "SAM5/IP65"

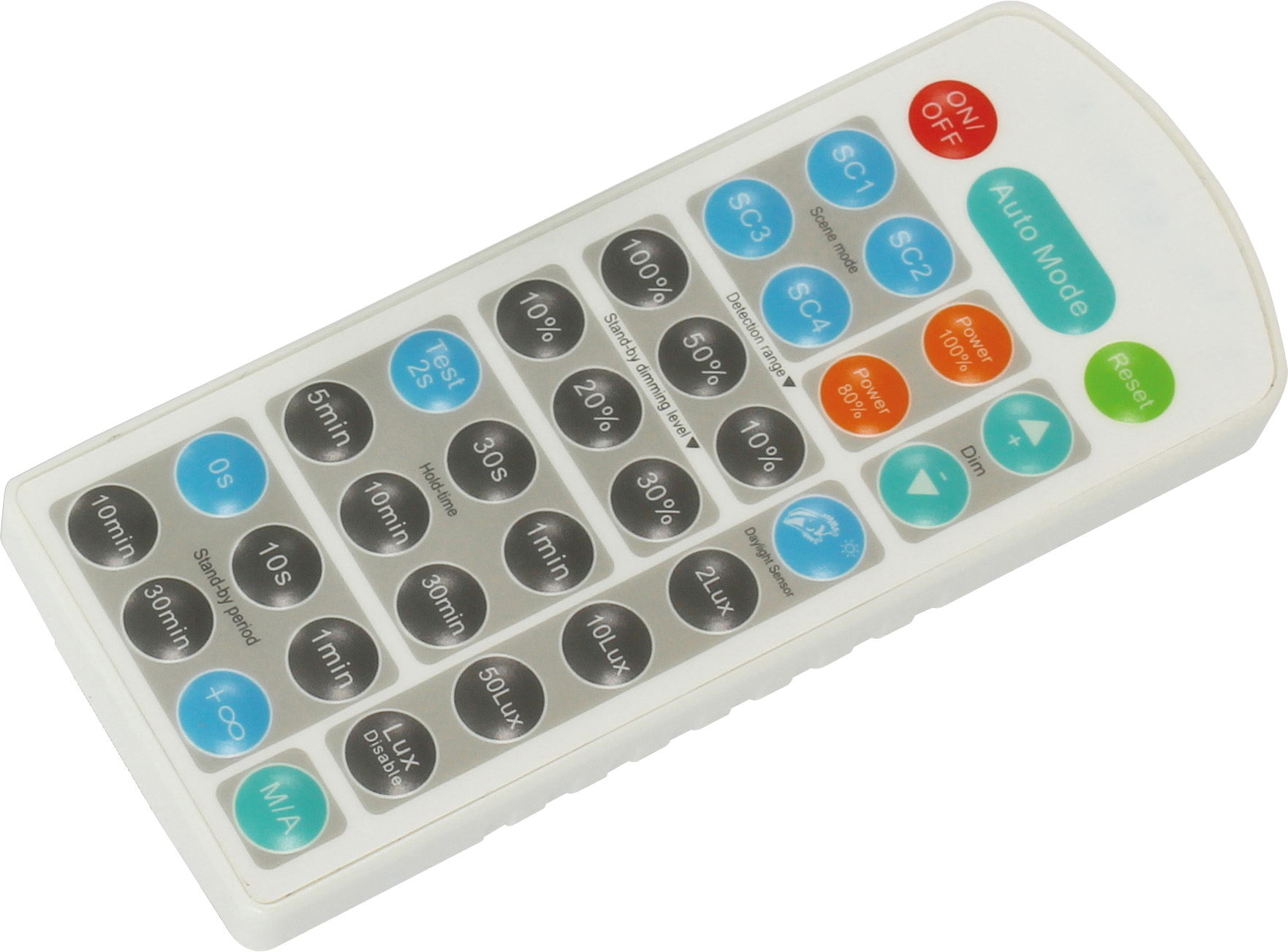

This sensor features microwave (HF) detection and is designed for conduit installation (M16 * 3mm). It includes tri-level dimming, a photodiode (PD), active lux switching capabilities, with a maximum installation height of 6m and a detection range up to Ø = 12m. Sensor settings can be adjusted using the HRC-05 handset, and it boasts an IP65 rating for protection against dust and water ingress.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Conduit screws, Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 40.3000 mm |
| Produktlänge: | 41.0000 mm |
| Produkttiefe: | 41.0000 mm |
| Schutzart: | IP65 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
