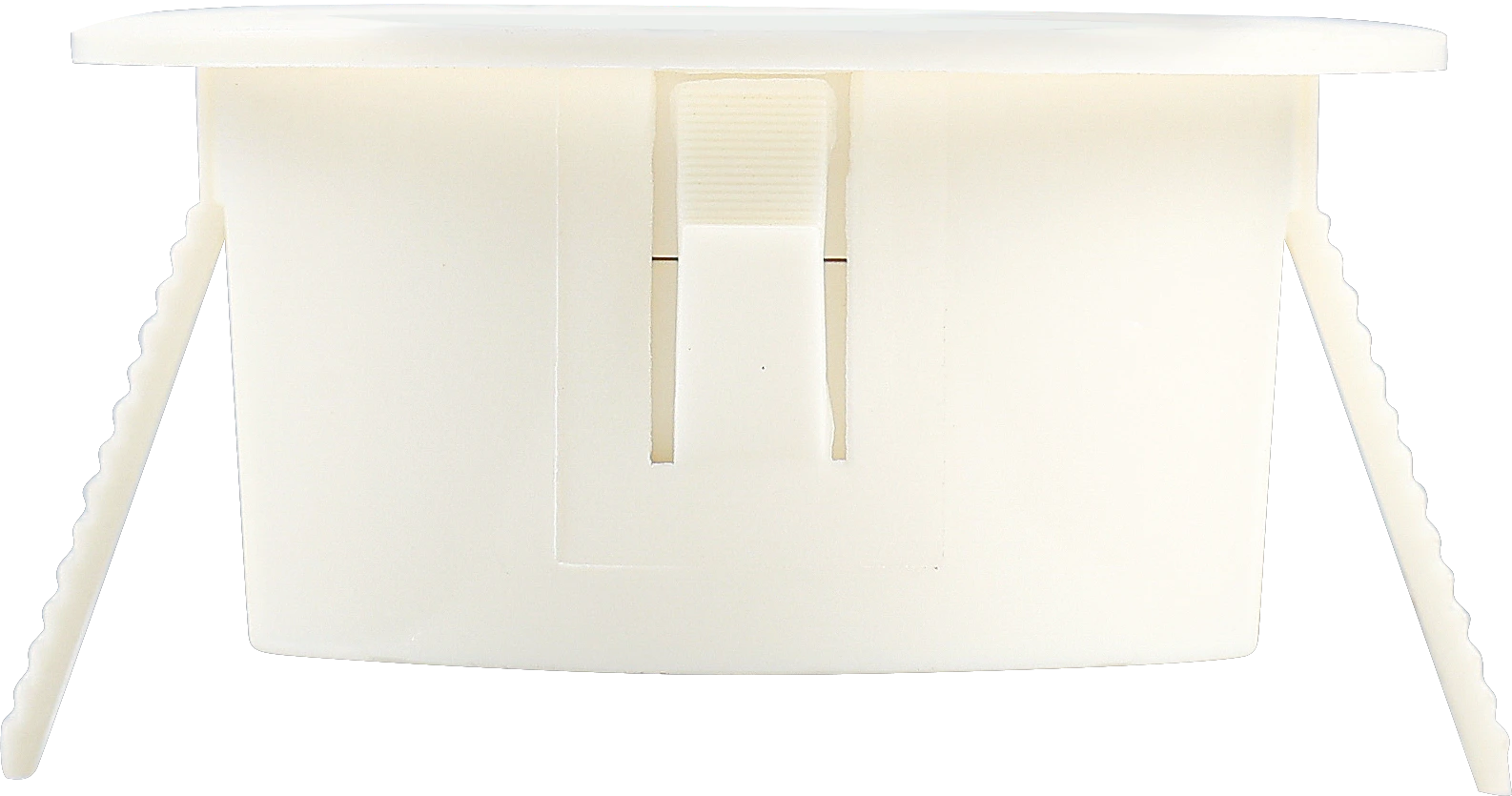

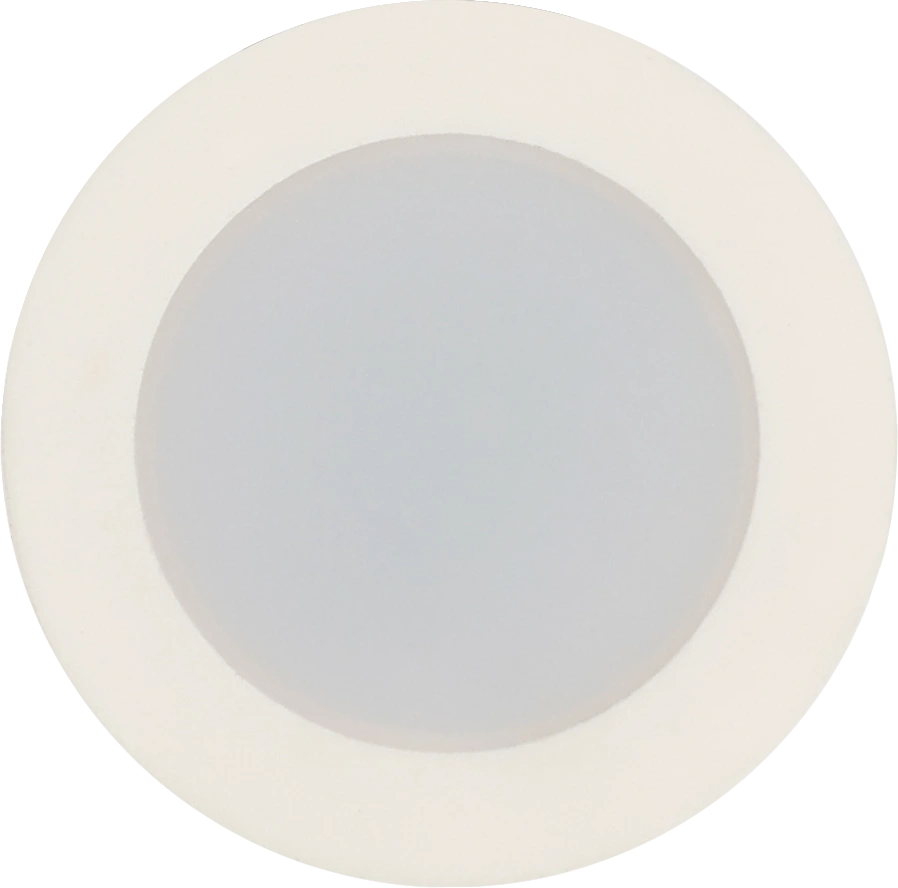

SAM5/FM
HF Lowdbay | Tri-level dimming | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming control based upon occupancy
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Flush mount installation
- Classrooms
- Offices
Produktinformationen "SAM5/FM"
This sensor features microwave (HF) detection and is designed for flush mount installation. It includes tri-level dimming, a photodiode (PD), active lux switching capabilities, with a maximum installation height of 6m and a detection range up to Ø = 12m. Sensor settings can be adjusted using the HRC-05 handset.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Detektionsverfahren: | Microwave (MW) |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Plug & Play Sensor Heads |
| Montagehöhe: | Low-bay |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Ja |
| Voltage Type: | DC |
| Warming-up: | 20 s |
