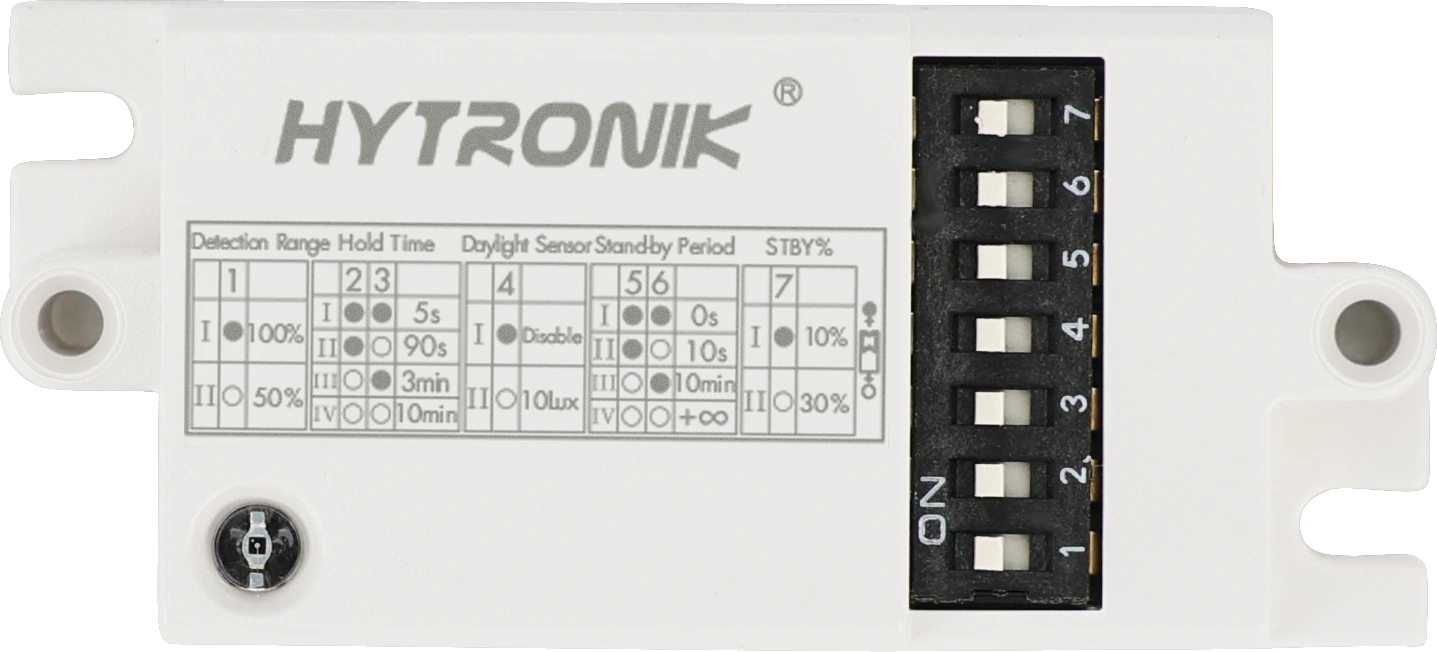

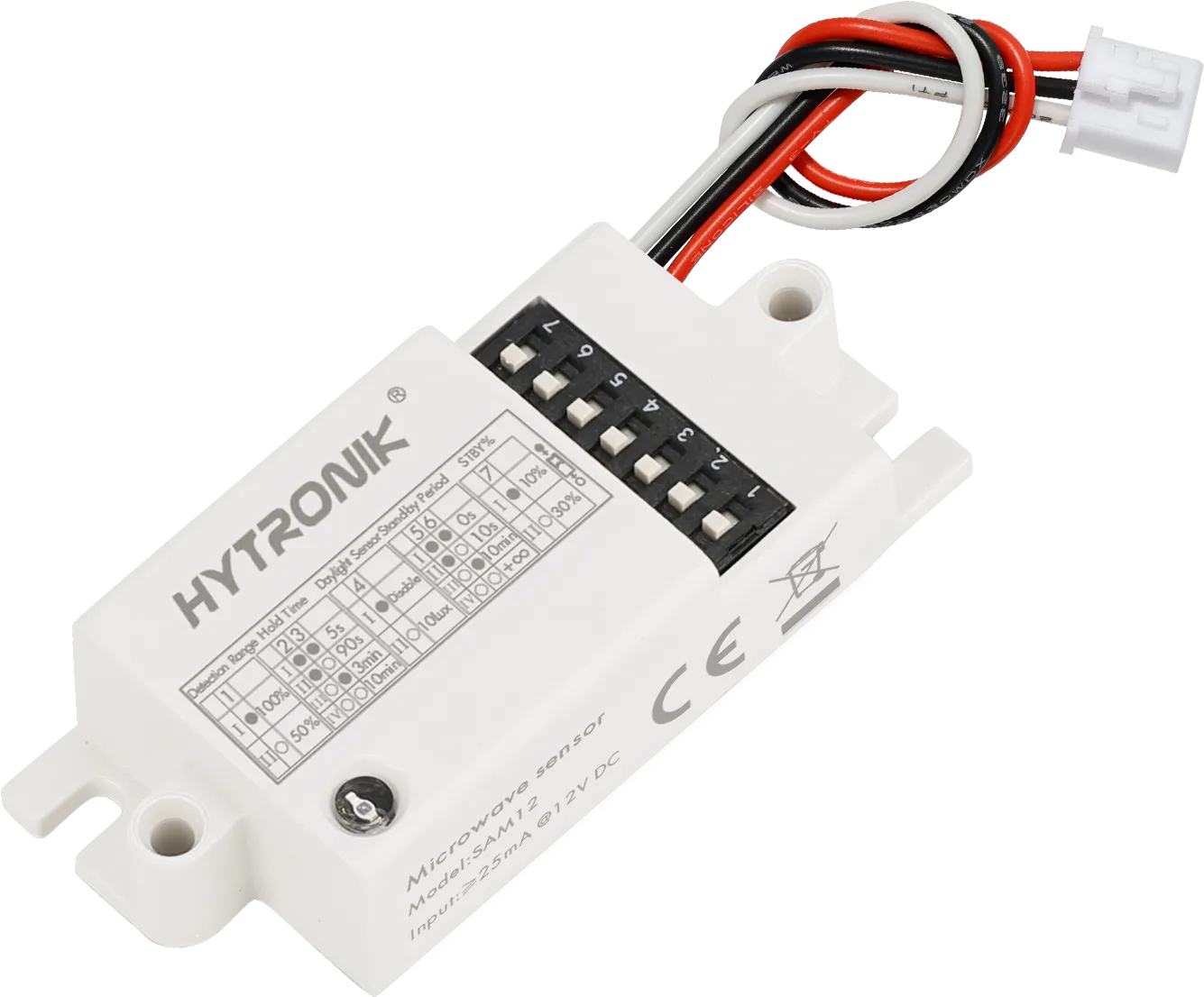

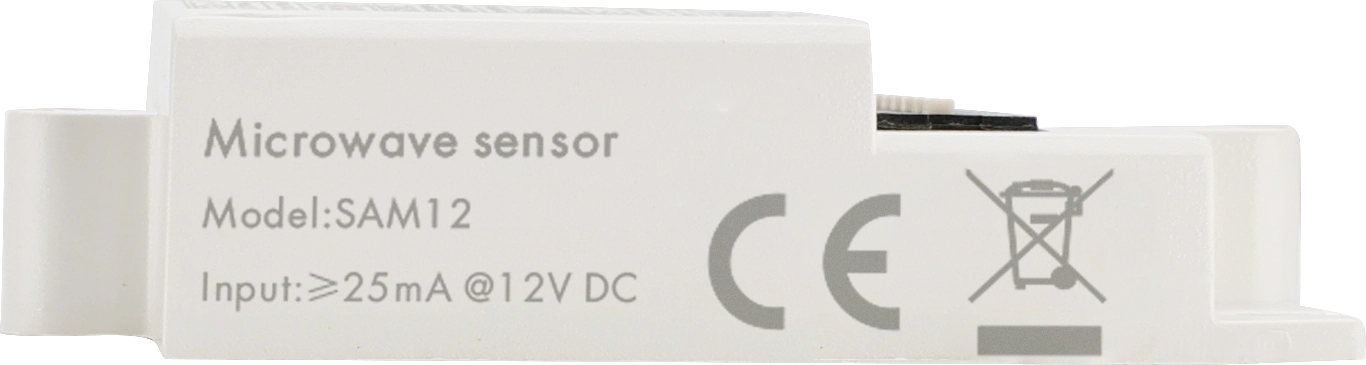

SAM12
HF Lowdbay VDC | Dreistufiges Dimmen | RJ12-Stecker zum Steuergehäuse
FEATURES
- Kompakt: Rechteckiges Standard-Plug&Play-Sensordesign
- 2 in 1: 12VDC Eingang + dreistufiges Dimmen
- Einfach: Sensoreinstellung über DIP-Schalter
ANWENDUNGEN
- Master-Leuchte mit Sensor
- Klassenzimmer
- Ämter
Produktinformationen "SAM12"
SAM12 ist ein reiner Sensorkopf mit 12VDC Eingang und 5V 1kHz PWM
Ausgang, es ist bereit, in einen LED-Treiber eines Drittanbieters integriert werden, keine Kontrolle
Basis benötigt. Es ist geeignet für Bulkhead, tri-proof, LED-Panel, linear,
Hängeleuchte, High-Light.
Betriebsspannung: | 12DVC |
---|---|
Detektionsverfahren: | Mikrowellensensor (MW) |
Eigenschaften: | Korridorfunktion |
Einbauöffnung: | 2.5000 mm |
Einschwingzeit: | 20 s |
Erfassungswinkel: | 30° - 150° |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Nein |
IP-Schutzart: | IP20 |
Inbetriebnahme-Methoden: | DIP-Schalter |
Installationstyp: | Einbau |
Korridorfunktion: | Ja |
Lagertemperatur: | 70 °C |
Max. Luftfeuchtigkeit: | 90 % |
Maximale Montagehöhe: | 6.0000 m |
Min. Lagertemperatur: | -40 °C |
Min. Luftfeuchtigkeit: | 10 % |
Montagehöhe: | Low-bay |
Produktbreite: | 22.5000 mm |
Produktgewicht: | 34.0000 g |
Produkthöhe: | 12.5000 mm |
Produktlänge: | 50.5000 mm |
Spannungsart: | DC |
Tageslichtsensor-Option: | Photodiode/Fotowiderstand |
Umgebungstemperatur max.: | 60 °C |
Umgebungstemperatur min.: | -20 °C |
Zhaga: | Nein |
Datenblätter
Produktdatenblatt: sam12.pdf
