HTG02
Real-time keeper | Bluetooth repeater module | Antenna option
Vorteile
- Tiny: Fits in many mounting boxes
- Reinforced: Optional external antennas to improve signal
- Convinient: Accurate timekeeping for up to 12 weeks during power loss
ANWENDUNGEN
- Warehouses, manufacturing plants
- Large areas with "signal dead spots"
- Sites with general on/off cycles
Produktinformationen "HTG02"

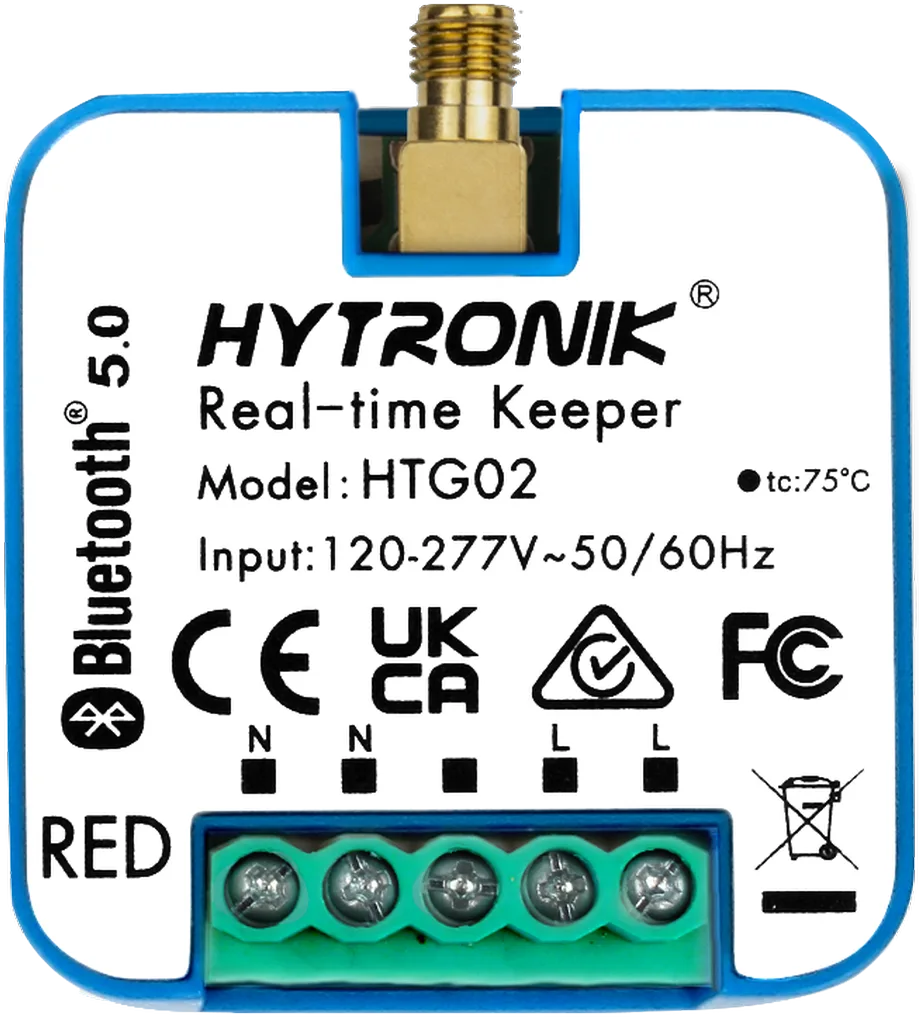

HTG02 is a Bluetooth modules with a real-time chip built in that can keep real time running for up to 12 weeks during power loss, which is very convenient for Bluetooth system/network where there is constant need for power on/off. When a product group mesh network is created, the entire network takes HTG02 as the authoritative time. The external Bluetooth antenna of HTG02 can be connected for a longer Bluetooth broadcast distance.
Betriebsspannung: | 120 - 277 VAC |
---|---|
Bluetooth Frequenz: | 2.4 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Category - System Level Components: | Real-time Keeper/Repeater Module |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Nein |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -20 °C |
Product height: | 22.0000 mm |
Produktlänge: | 46.0000 mm |
Produkttiefe: | 46.0000 mm |
Schutzart: | IP20 |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 60 °C |
Umgebungstemperatur min.: | -20 °C |
