Aktiv / Neu
HIR62/TKN
PIR Lowbay | Bluetooth Transceiver | 4 Wires 3 Circuits
FEATURES
- Adjustable: Max. 180° vertical tilt + 360° horizontal rotation
- Flexible: Supports grouping, scenes, and signal coordination
- Simple: Allowing fast wireless commissioning via app
ANWENDUNGEN
- Compatible with Global, Powergear, and equivalent standard track systems
- Offices, Retail stores, Warehouse
- Museums, Galleries
Produktinformationen "HIR62/TKN"

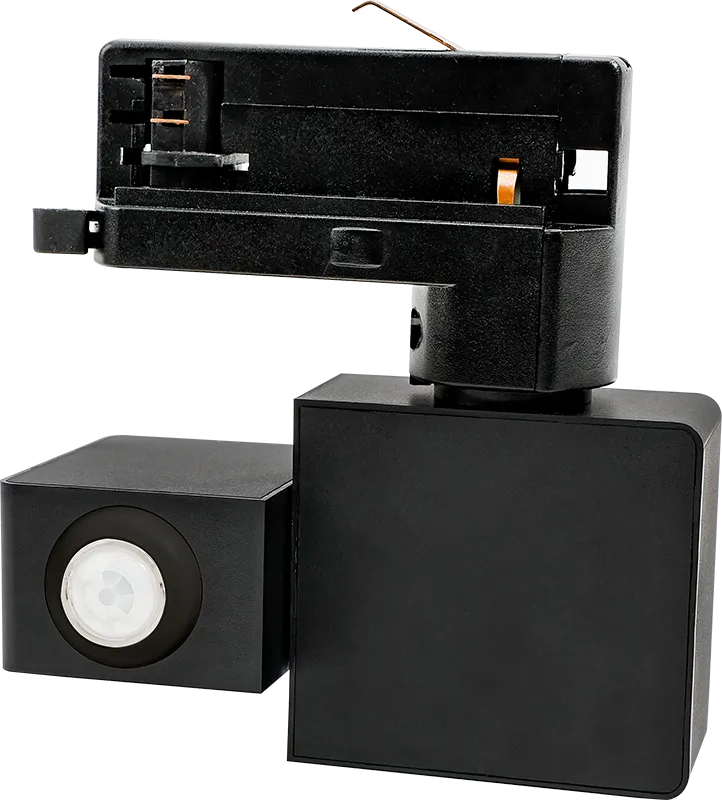

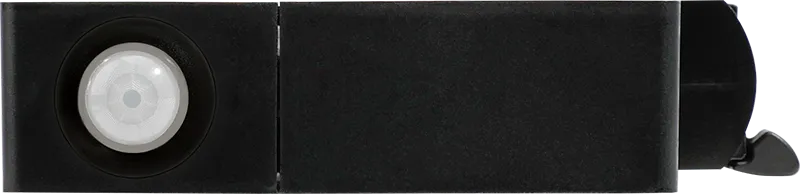

HIR62/TKN is a Bluetooth node for track lighting systems, designed to enable signal exchange and coordination between devices through Bluetooth communication. As a functional node within a Bluetooth Mesh network, it supports wireless grouping, scene triggering, and inter-device signaling without additional wiring. Featuring plug-and-play installation into the track, all parameters can be configured wirelessly via the Koolmesh app. Its compact, integrated track-mounted design makes it suitable for both commercial and residential track lighting applications.
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
|---|---|
| Bluetooth-Plattform: | Nordic nRF52832 |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Detektionsbereich (Durchmesser): | 12x3 |
| Detektionsverfahren: | Passiv-Infrarot (PIR) |
| Detektionswinkel: | 360° |
| Dimm-Steuersignal: | Bluetooth Dimmung |
| Eigenschaften: | Korridorfunktion, Tageslichtsteuerung |
| Human Centric Lightning (HCL): | Ja |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth) |
| Installationstyp: | Stromschienen Beleuchtung |
| Korridorfunktion: | Ja |
| Lagertemperatur: | 70 °C |
| Linsentyp: | Standard Low-bay |
| Max. Luftfeuchtigkeit: | 90 % |
| Maximale Montagehöhe: | 3.0000 m |
| Min. Lagertemperatur: | -25 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Montagehöhe: | Low-bay |
| Produktbreite: | 31.0000 mm |
| Produkthöhe: | 124.3000 mm |
| Produktlänge: | 110.7000 mm |
| Produktstatus: | Aktiv / Neu |
| Spannungsart: | AC |
| Tageslichtsensor-Option: | Fotowiderstand |
| Tageslichtsteuerung: | Ja |
| Taster Eingänge: | 1 |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Zhaga: | Nein |
Datenblätter
Produktdatenblatt: hir62-tkn.pdf
