Active / Make to Stock
HIR60/R/NLC
PIR Highbay | Bluetooth® NLC/ DALI-2 D4i | Zhaga Book 20 Standard
FEATURES
- Kompakt: Super kompakter Zhaga Book 20 Sensor
- All-in-one: Bewegungsdetektion, Circadianer-Rhythmus + Bluetooth® NLC
- Zukunftssicher: NLC-zertifiziertes Lichtmanagement mit offenem Bluetooth-Protokoll

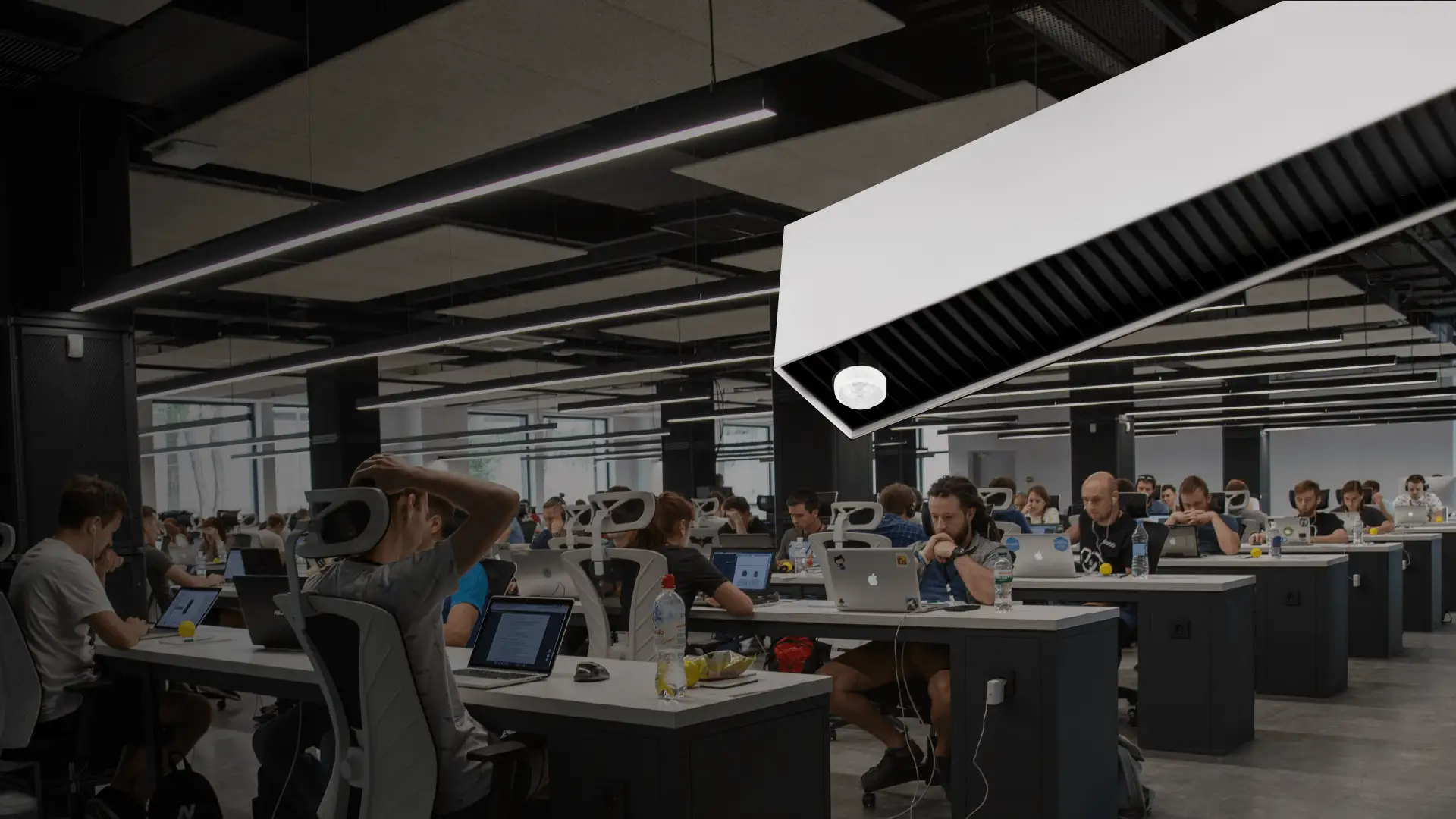

ANWENDUNGEN
- Für Lichtbänder/ Hallenstrahler bis zu 8/12m Höhe
- Lager/Logistik
- Produktion

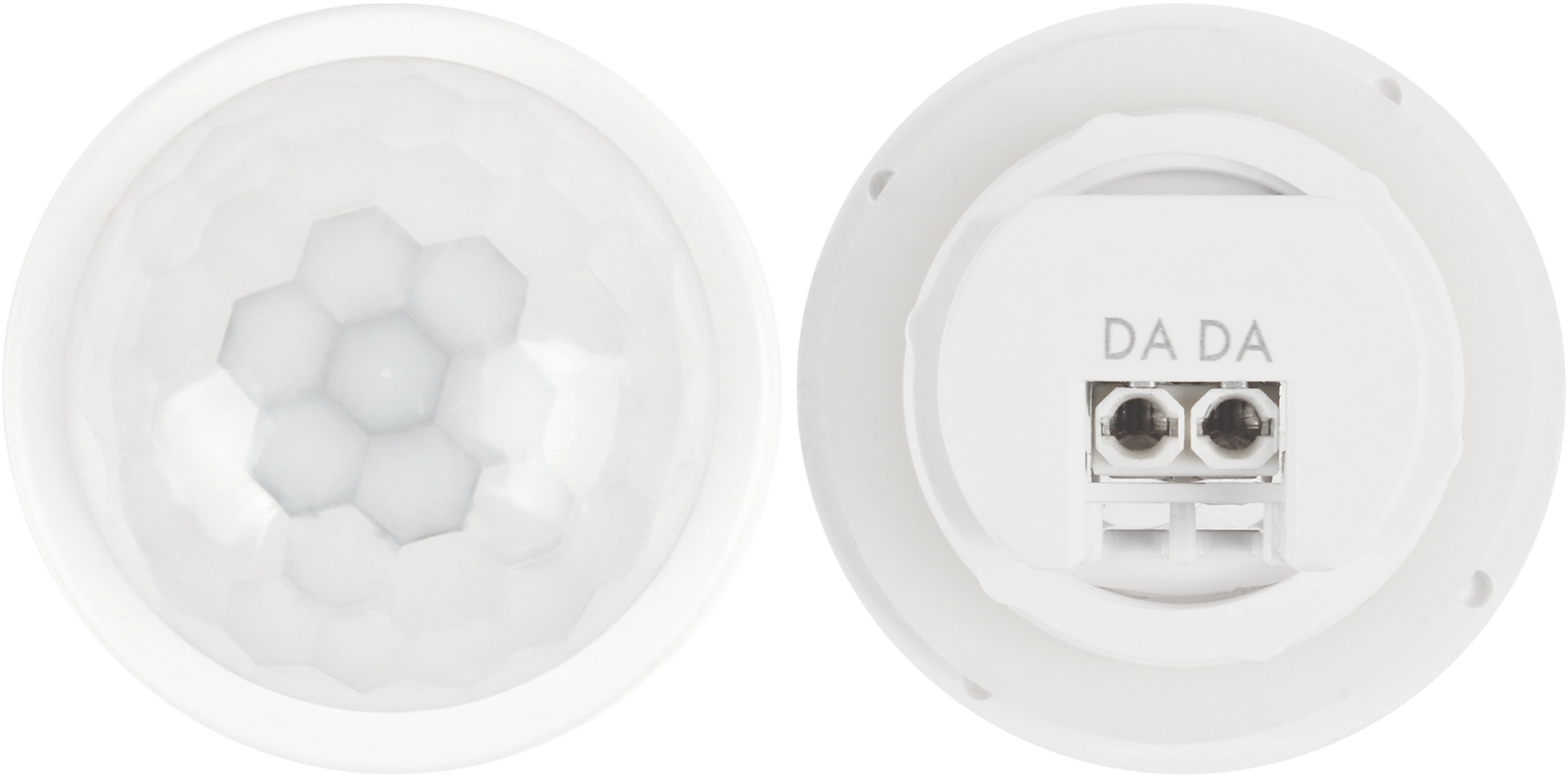

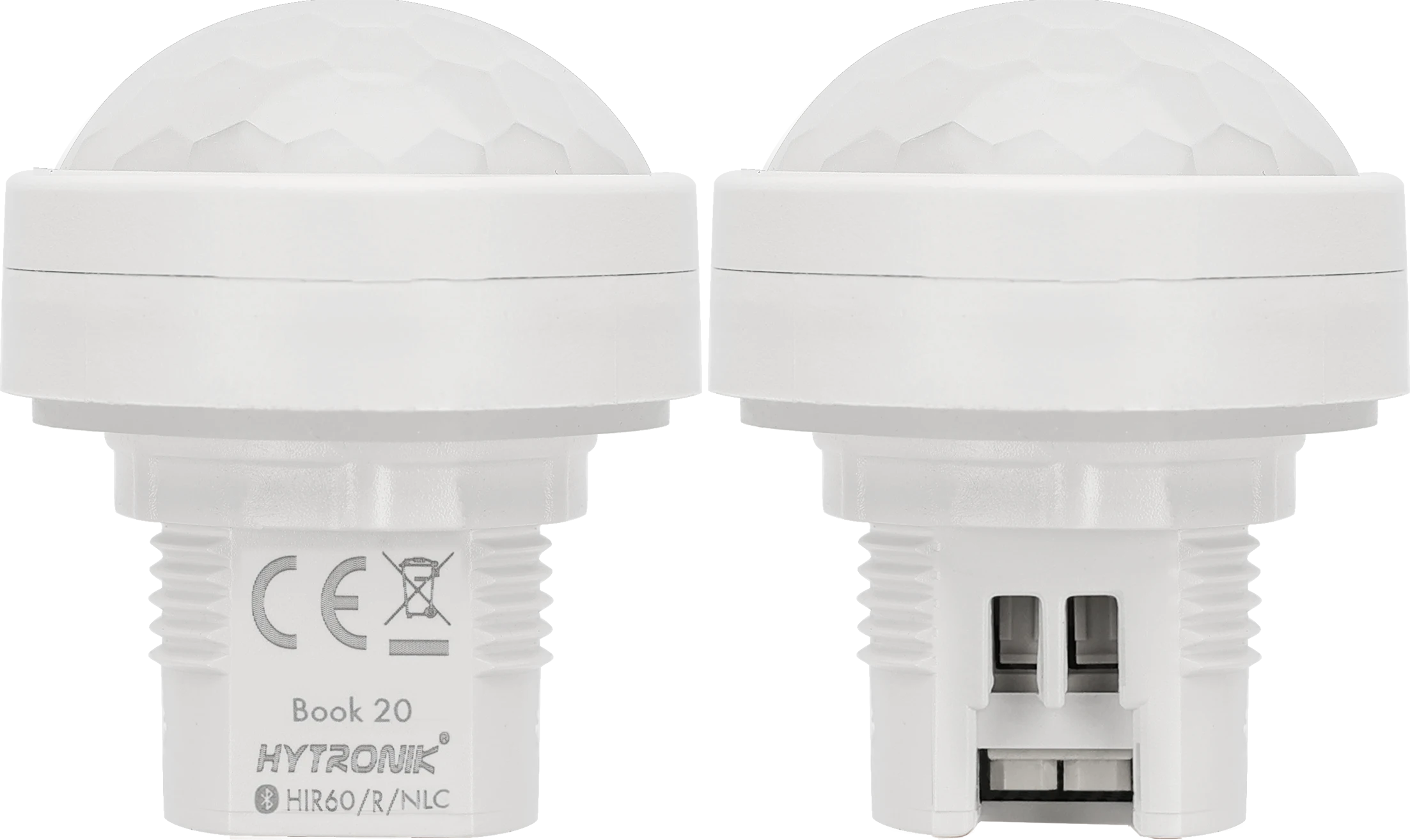

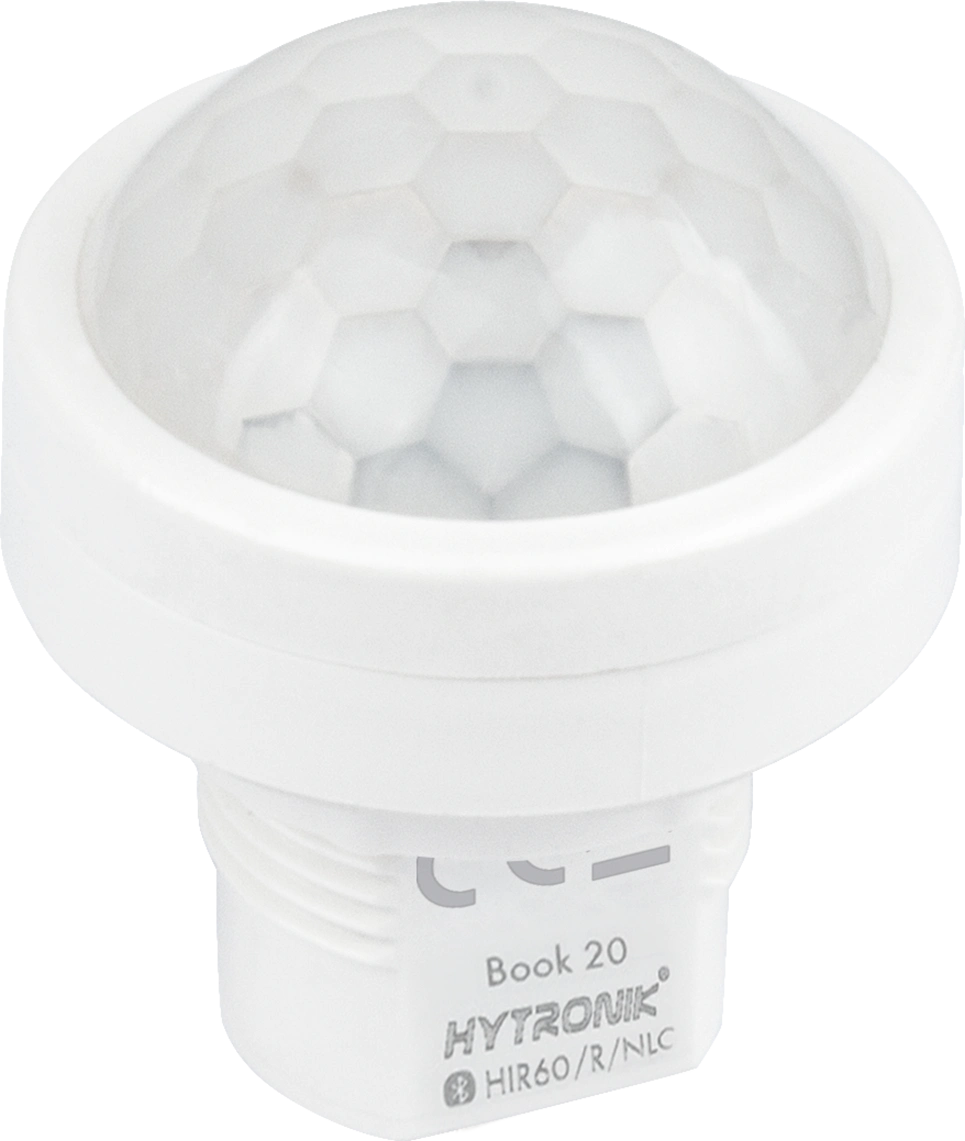

Produktinformationen "HIR60/R/NLC"
HIR60/NLC/R ist ein auf SILVAIR basierender PIR-Sensor für den Anschluss an Zhaga Book 20-Leuchten. Er unterstützt DALI-2 Broadcast über eine externe Stromversorgung, Tri-Level-Dimmung und Tageslichtregelung über eine Fotodiode (PD). Über die SILVAIR-App ermöglicht er eine einfache Inbetriebnahme und Konfiguration des PIR-Sensors. Durch die Kombination von Hytroniks außergewöhnlicher Hardware-Technologie mit SILVAIRs NLC erfüllt er die DLC NLC5-Zertifizierung für eine nahtlose Integration in NLC-Bluetooth-Netzwerke.
| Anschlusstyp: | Zhaga book 20 |
|---|---|
| Betriebsspannung: | 9.5-22.5 VDC |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Silvair |
| Detektionsbereich (Durchmesser): | 14x12 |
| Detektionsverfahren: | Passiv-Infrarot (PIR) |
| Detektionswinkel: | 360° |
| Dimm-Steuersignal: | DALI |
| Eigenschaften: | Tageslichtsteuerung |
| Einbauöffnung: | 22.2300 mm |
| Human Centric Lightning (HCL): | Nein |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth) |
| Installationstyp: | Einbau, Zhaga |
| Korridorfunktion: | Nein |
| Lagertemperatur: | 70 °C |
| Max. Luftfeuchtigkeit: | 90 % |
| Maximale Montagehöhe: | 12.0000 m |
| Min. Lagertemperatur: | -40 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Montagehöhe: | Mid & High-bay |
| Produktbreite: | 36.7000 mm |
| Produktgewicht: | 10.0000 g |
| Produkthöhe: | 43.4000 mm |
| Produktlänge: | 36.7000 mm |
| Produktstatus: | Active / Make to Stock |
| Spannungsart: | DC |
| Taster Eingänge: | 0 |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Zhaga: | Ja |
Datenblätter
Produktdatenblatt: hir60-r-nlc.pdf
