HIM84/UH-B
HF+PIR Highbay | Bluetooth DALI | Rohrleitungsschrauben
FEATURES
- Hohe Genauigkeit: DUAL Sense mit HF- und PIR-Technologie
- Einfach: Dreistufige Steuerung & Tageslichtnutzung
- Einfache Konfiguration: Drahtloses Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Freistehende Installation für Decken bis zu 21m
- Lagerhaus
- Produktion

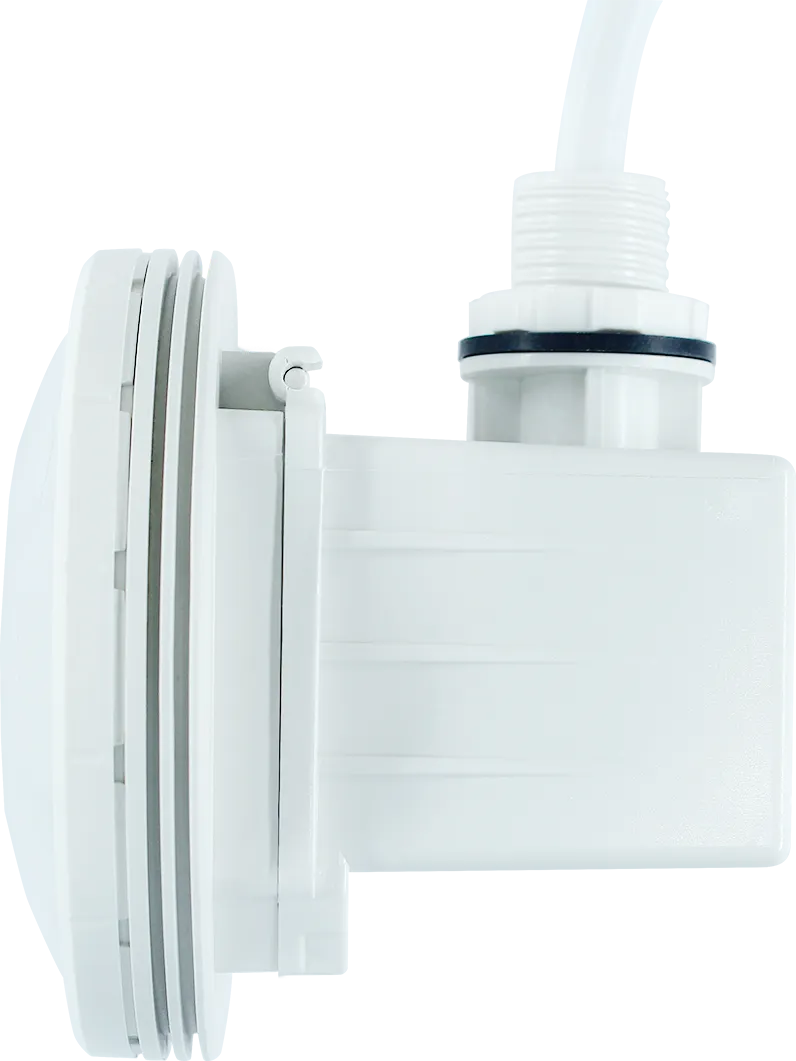

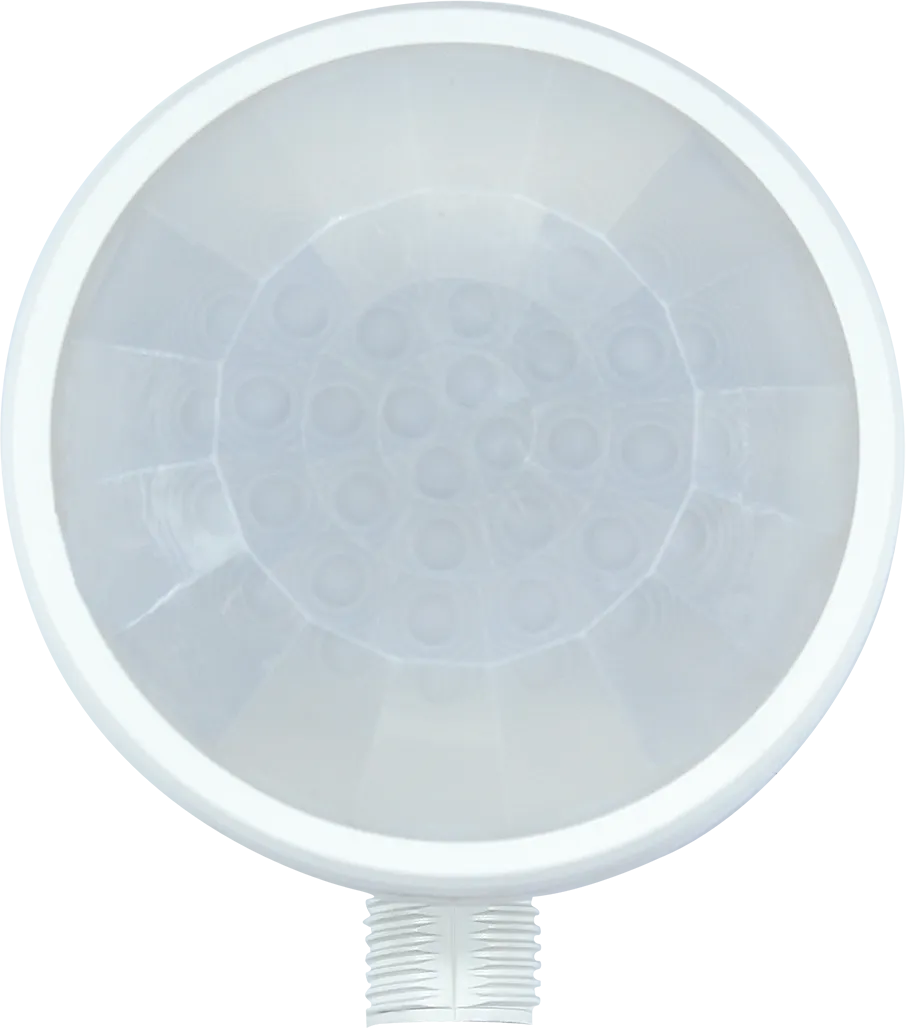

Produktinformationen "HIM84/UH-B"
HIM84/UH ist ein Bluetooth-fähiger Dual-senseTM-Bewegungsmelder für DALI/DALI2-Systeme, der Mikrowellen- und PIR-Technologie kombiniert. Er unterstützt Installationshöhen von bis zu 21 m und verfügt über eine robuste IP65-Struktur. Er nutzt das drahtlose Bluetooth-Mesh-Netzwerk für eine einfache Einrichtung und Inbetriebnahme über die Koolmesh-App.
| Anschlusstyp: | 2-adrig |
|---|---|
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Detektionsbereich (Durchmesser): | 26×21 |
| Detektionsverfahren: | Dual-Sense (MW+PIR), Mikrowellensensor (MW), Passiv-Infrarot (PIR) |
| Detektionswinkel: | 360° |
| Dimm-Steuersignal: | DALI/DALI-2 |
| Eigenschaften: | Korridorfunktion, Tageslichtsteuerung |
| Einschwingzeit: | 30 s |
| Erforderlicher DALI-Strom: | 80.0000 mA |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Ja |
| IP-Schutzart: | IP65 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth) |
| Installationstyp: | Aufschraubvariante |
| Korridorfunktion: | Ja |
| Lagertemperatur: | 70 °C |
| Linsentyp: | Ultra high-bay |
| Max. Luftfeuchtigkeit: | 90 % |
| Maximale Montagehöhe: | 21.0000 m |
| Min. Lagertemperatur: | -40 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Montagehöhe: | Ultra High-bay |
| Produktbreite: | 94.0000 mm |
| Produktgewicht: | 205.0000 g |
| Produkthöhe: | 85.5000 mm |
| Produktlänge: | 103.5000 mm |
| Spannungsart: | AC |
| Tageslichtsteuerung: | Ja |
| Taster Eingänge: | 0 |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Zhaga: | Nein |
Datenblätter
Produktdatenblatt: him84-uh-b.pdf
