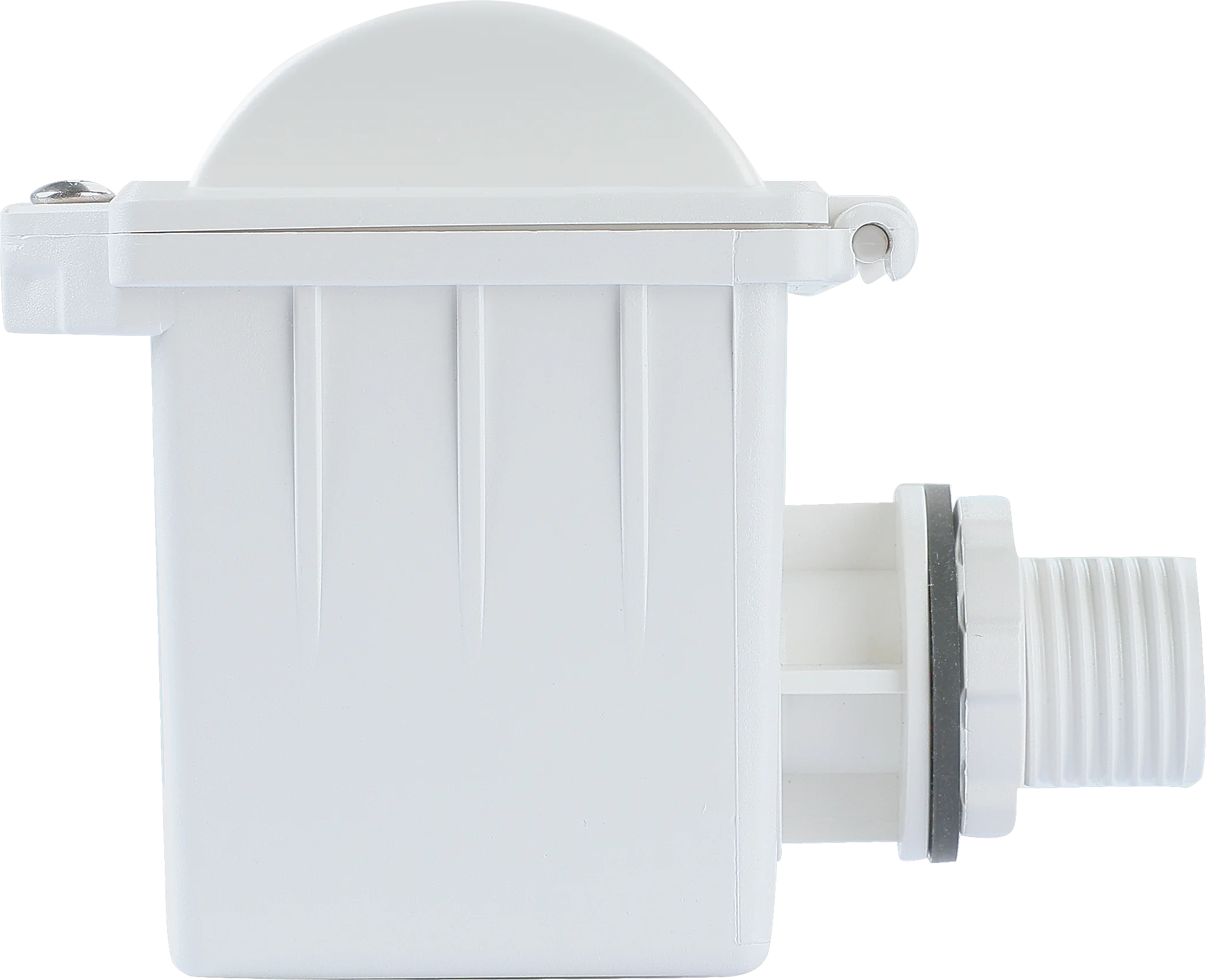

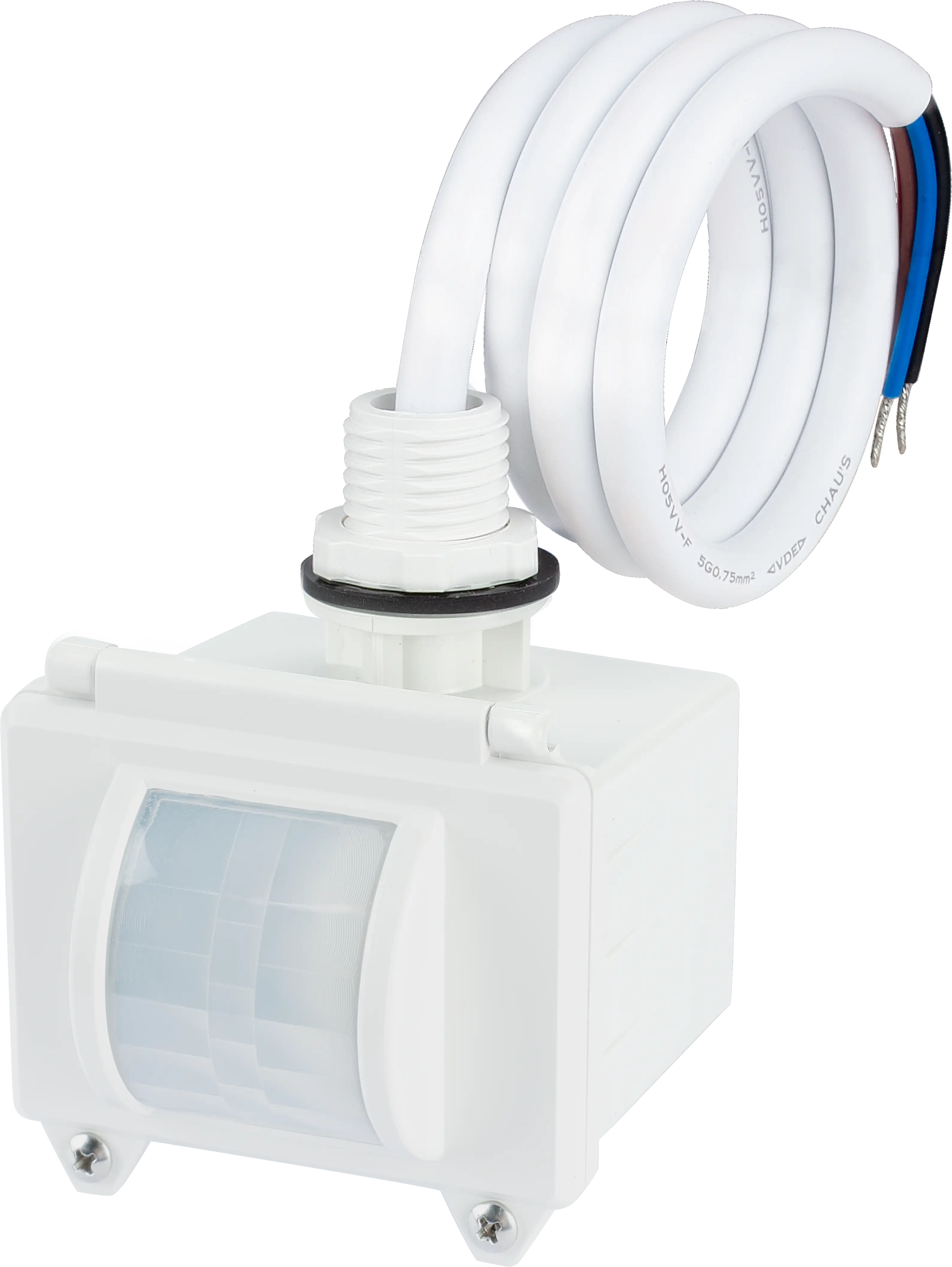

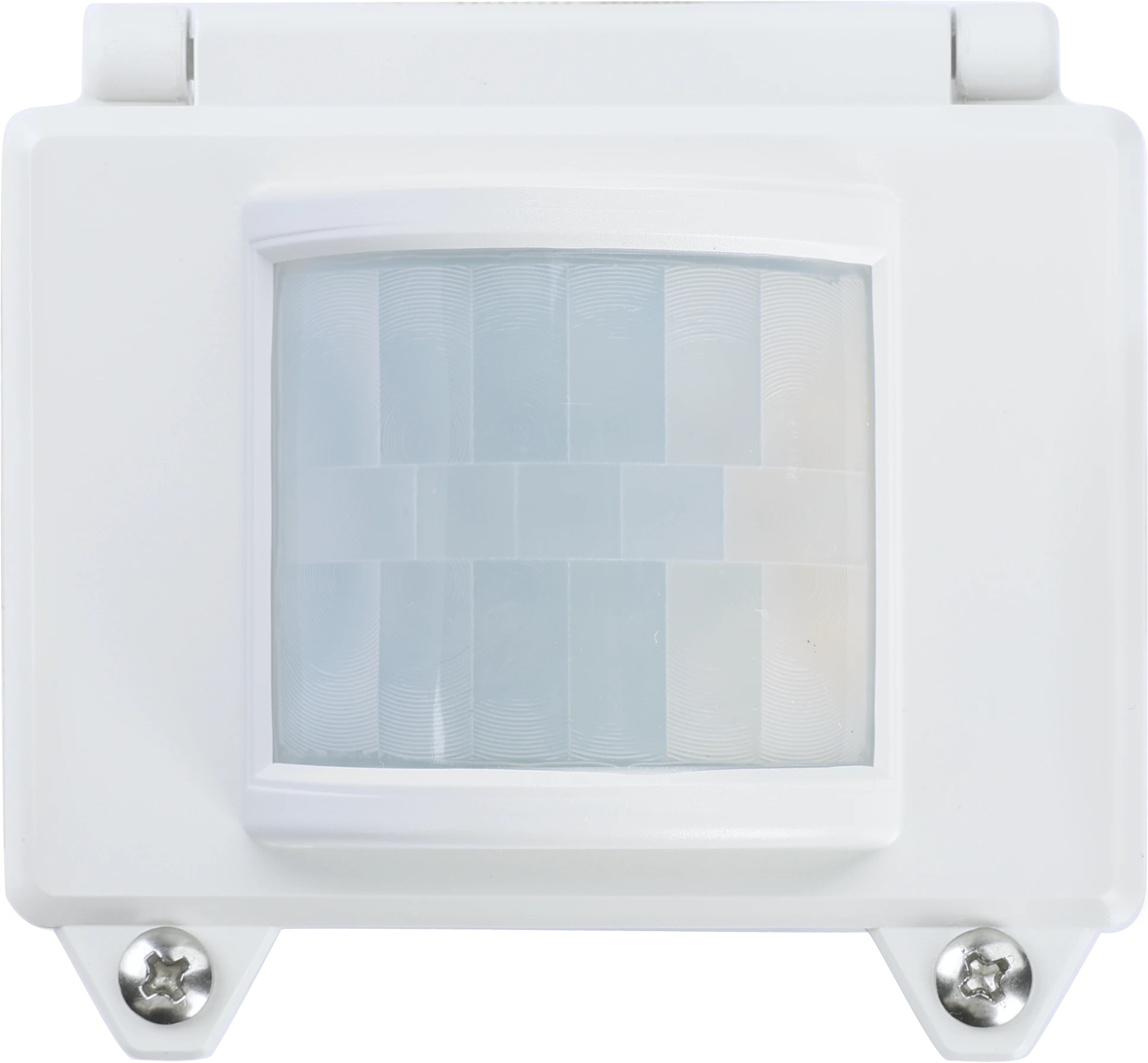

HIM84-B-L2
HF+PIR Highbay | Bluetooth DALI mit PSU | Conduit
FEATURES
- Hohe Genauigkeit: DUAL Sense mit HF- und PIR-Technologie
- Einfach: Dreistufige Steuerung & Tageslichtnutzung
- Einfache Konfiguration: Drahtloses Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Freistehende Installation für Decken bis zu 15m
- Lagerhaus
- Produktion
Produktinformationen "HIM84-B-L2"
HIM84 ist ein Bluetooth DALI / DALI2 High-Bay Dual-Sense (Mikrowelle + PIR) Bewegungsmelder, mit der Fähigkeit, bis zu 15m Installationshöhe. Er ist mit einer robusten IP65-Struktur ausgestattet. Dieses Produkt ist flexibel, es hat 3 verschiedene Installationsmethoden und 3 verschiedene Linsenoptionen, für die man wählen kann. Mit Bluetooth Wireless Mesh Networking, macht es die Kommunikation viel einfacher, ohne jede Verkabelung, die schließlich fügt Werte zu Leuchten und spart Kosten für Projekte.
| Anschlusstyp: | 2-adrig |
|---|---|
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Bluetooth-Plattform: | Nordic nRF52832 |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Detektionsbereich (Durchmesser): | 24x15 |
| Detektionsverfahren: | Dual-Sense (MW+PIR), Mikrowellensensor (MW), Passiv-Infrarot (PIR) |
| Detektionswinkel: | 360° |
| Dimm-Steuersignal: | DALI/DALI-2 |
| Eigenschaften: | Einstellbare Weißlichtsteuerung, Korridorfunktion, Tageslichtsteuerung |
| Einschwingzeit: | 20 s |
| Erforderlicher DALI-Strom: | 80.0000 mA |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Ja |
| IP-Schutzart: | IP65 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth) |
| Installationstyp: | Aufschraubvariante |
| Korridorfunktion: | Ja |
| Lagertemperatur: | 70 °C |
| Linsentyp: | High-bay |
| Max. Luftfeuchtigkeit: | 90 % |
| Maximale Montagehöhe: | 15.0000 m |
| Min. Lagertemperatur: | -40 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Montagehöhe: | Mid & High-bay |
| Produktbreite: | 81.5000 mm |
| Produktgewicht: | 195.0000 g |
| Produkthöhe: | 73.5000 mm |
| Produktlänge: | 91.5000 mm |
| Spannungsart: | AC |
| Tageslichtsteuerung: | Ja |
| Taster Eingänge: | 0 |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Zhaga: | Nein |
Datenblätter
Produktdatenblatt: him84-b-l2.pdf
