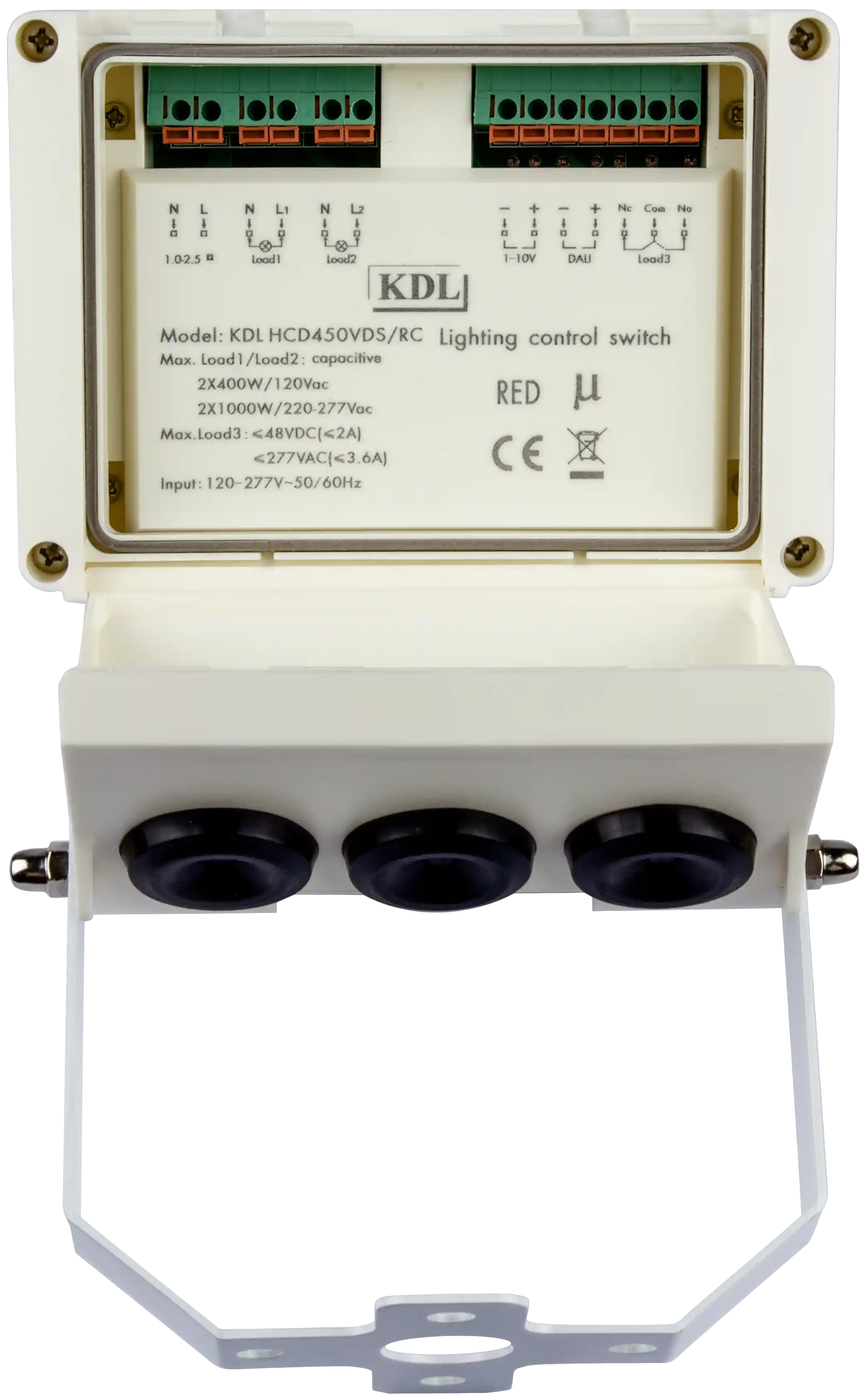

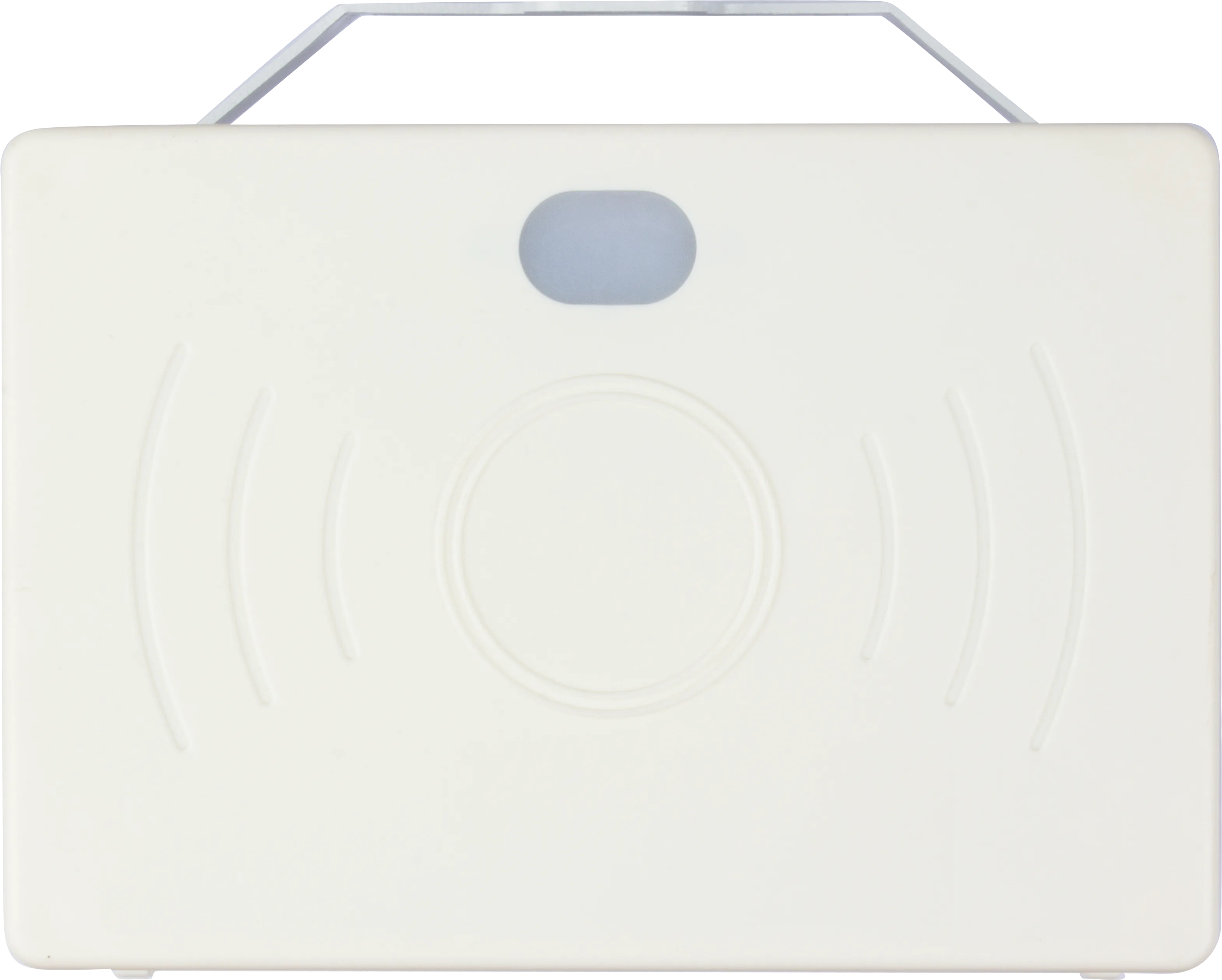

HCD450VDS/RC
HF Highbay | 1-10V /DALI Dimming | Wall/Surface mounting
Vorteile
- Durable: IP65 rated boosts reliability & extends lifespan
- Versatile: DALI + 0/1-10V Dimming + Tri-level + Daylight harvest + Circadian Rhythm
- User-Friendly: One-key commissioning with IR controller
ANWENDUNGEN
- Standalone installation for ceiling up to 20m
- Warehouse, Large storage room
- Production
Produktinformationen "HCD450VDS/RC"
HCD450VDS/RC is a HF Aisle Sensor. Occupancy detector with tri-level dimming control suitable for below applications such as warehouse and large storage room. Use for retrofit and new luminaire designs/installations.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | DALI |
| Befestigungsloch: | 7.0000 mm |
| Betriebsspannung: | 120 - 277 VAC |
| Daylight Harvest: | Ja |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 10×15 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 10.525GHz +/- 75MHz |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Stand-alone |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 82.3000 mm |
| Produktlänge: | 135.0000 mm |
| Produkttiefe: | 125.5000 mm |
| Schutzart: | IP65 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
