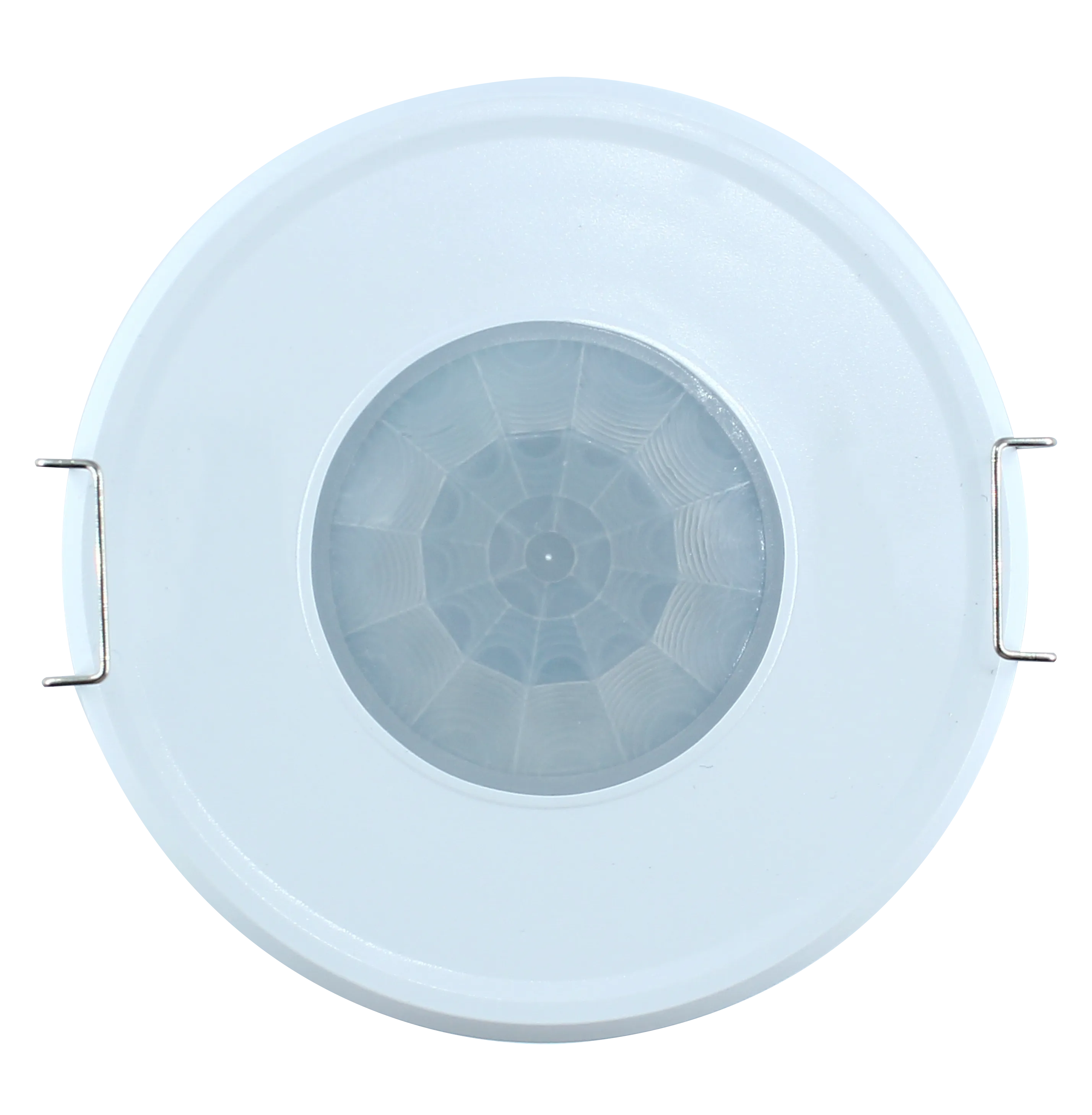

HBIR31
PIR Lowbay | Bluetooth DALI with PSU | Ceiling mounting
Vorteile
- Efficient: Standalone sensor for easy refurbishment
- Simple: Tri-level control & Daylight harvest
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh

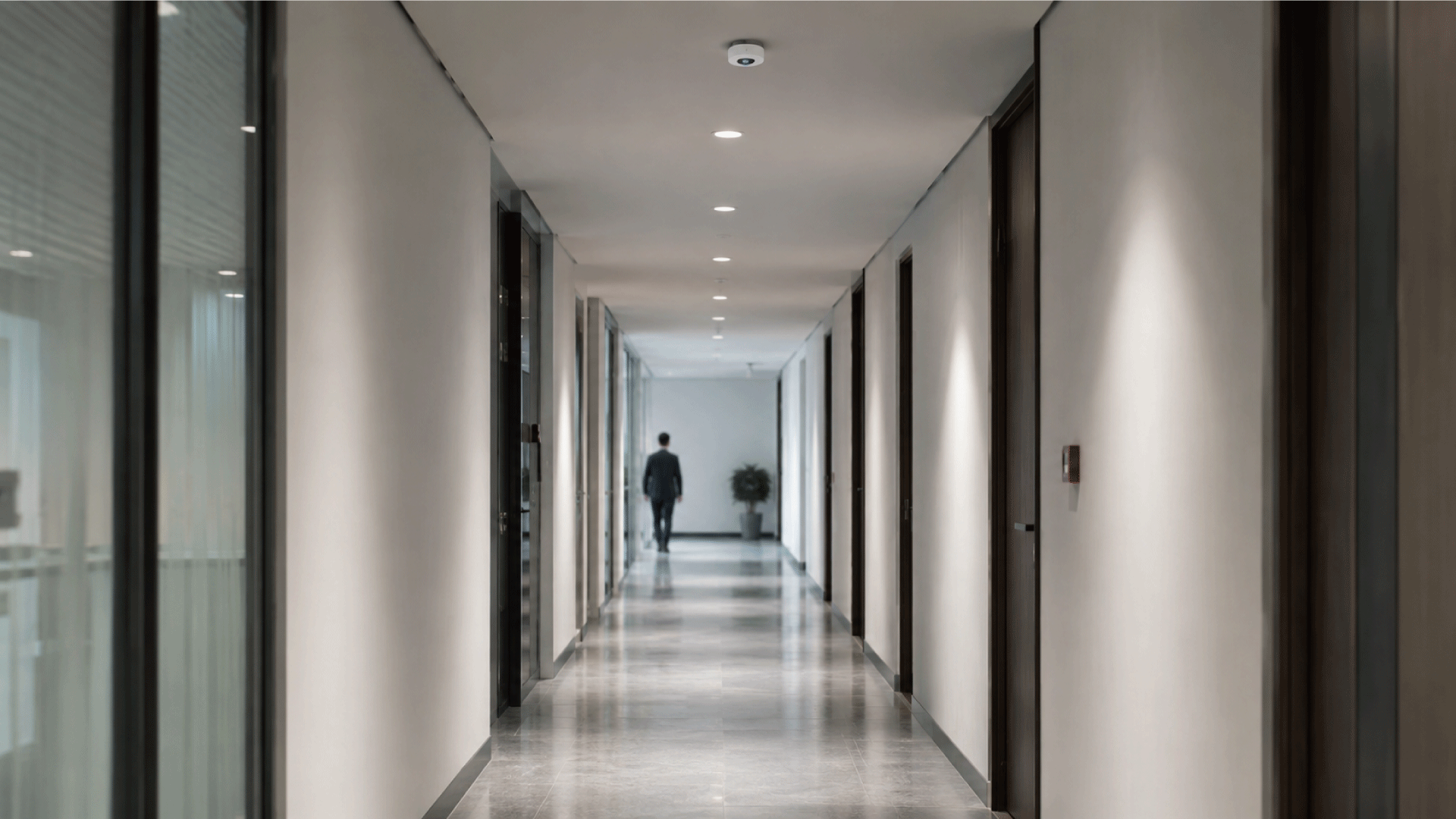

ANWENDUNGEN
- Standalone installation for ceiling up to 6m
- Office / Meeting rooms
- Schools / Classroom
Produktinformationen "HBIR31"
HBIR31 is a Bluetooth PIR standalone motion sensor with 80mA DALI power supply built in, which can control up to 40 LED drivers. It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects (especially for retrofit upgrade projects!). Meanwhile, simple device setup and commissioning can be done via Koolemsh app.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | DALI |
Befestigungsloch: | 66.0000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Daylight Harvest: | Nein |
Detection angle: | 360° |
Detektionsverfahren: | Passive Infrared (PIR) |
Erfassungsbereich (DxH): | 9x6 |
Erforderlicher DALI-Strom: | 80.0000 mA |
Features: | Daylight Harvest, Tri-level (Corridor Function) |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Stand-alone |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Lens type: | Standard Low-bay |
Maximale Montagehöhe: | 3.0000 m |
Montagehöhe: | Low-bay |
Product height: | 75.2000 mm |
Produkttiefe: | 78.0000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Taster Eingänge: | 2 |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Warming-up: | 20 s |
Zhaga: | No |
