HBIR29/AA
PIR Lowbay | Bluetooth DALI with PSU | Adjustable Angle
Vorteile
- Adjustable: Max.,70 degree angle + 360 degree rotatable for detection
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN

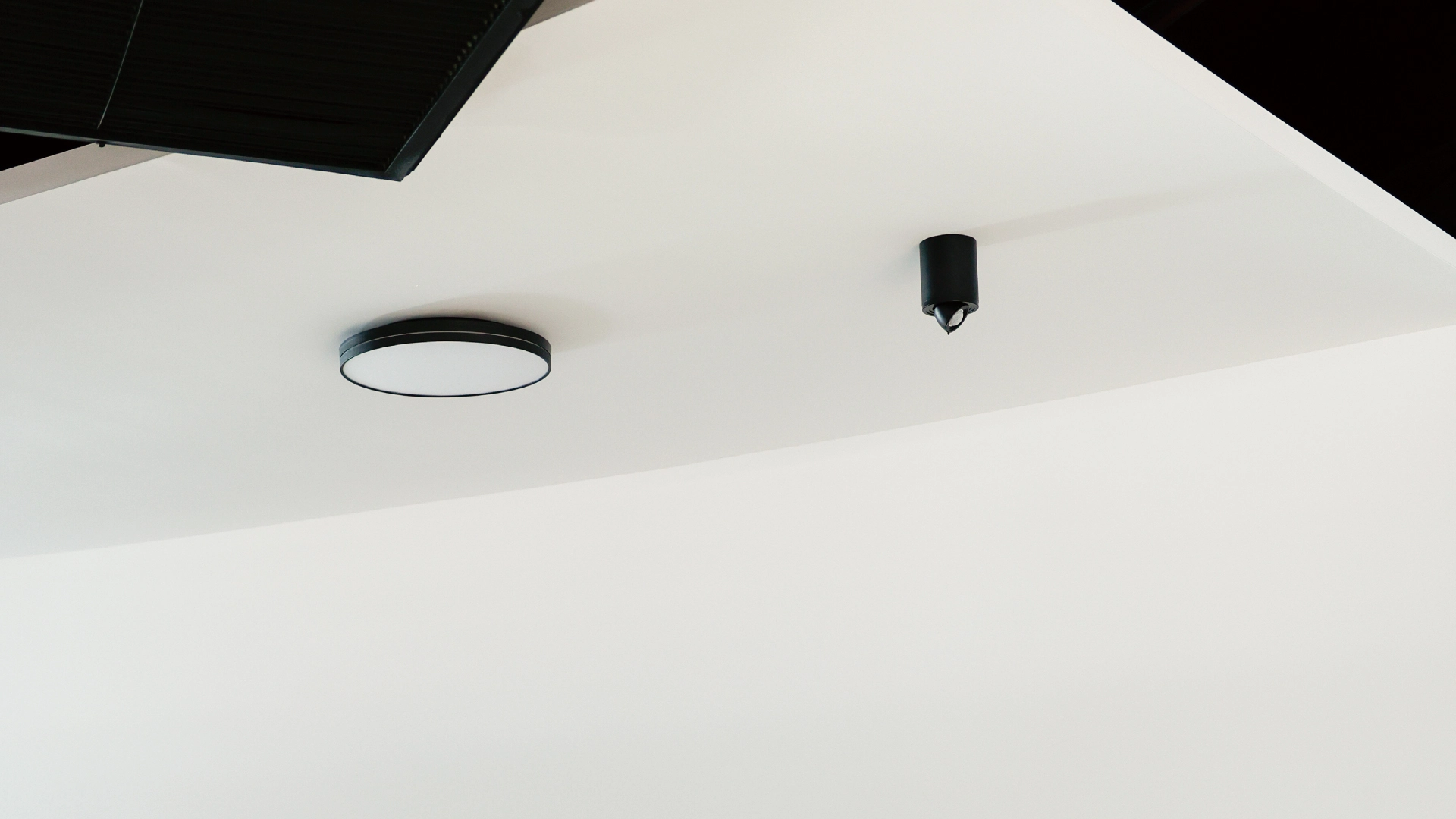

- For wall/surface mount application
- Corridor, Hallway
- Classrooms, Offices
Produktinformationen "HBIR29/AA"

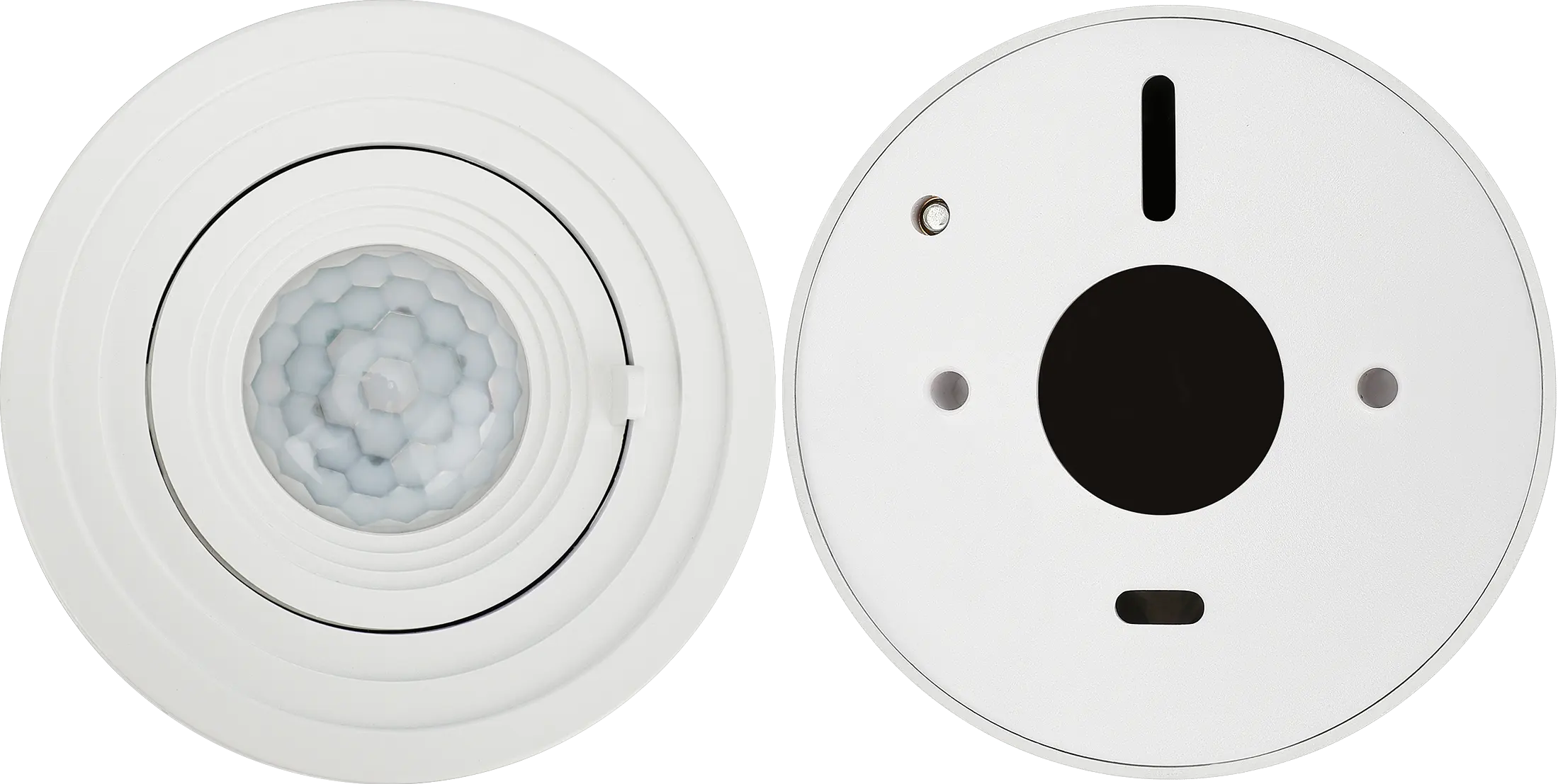

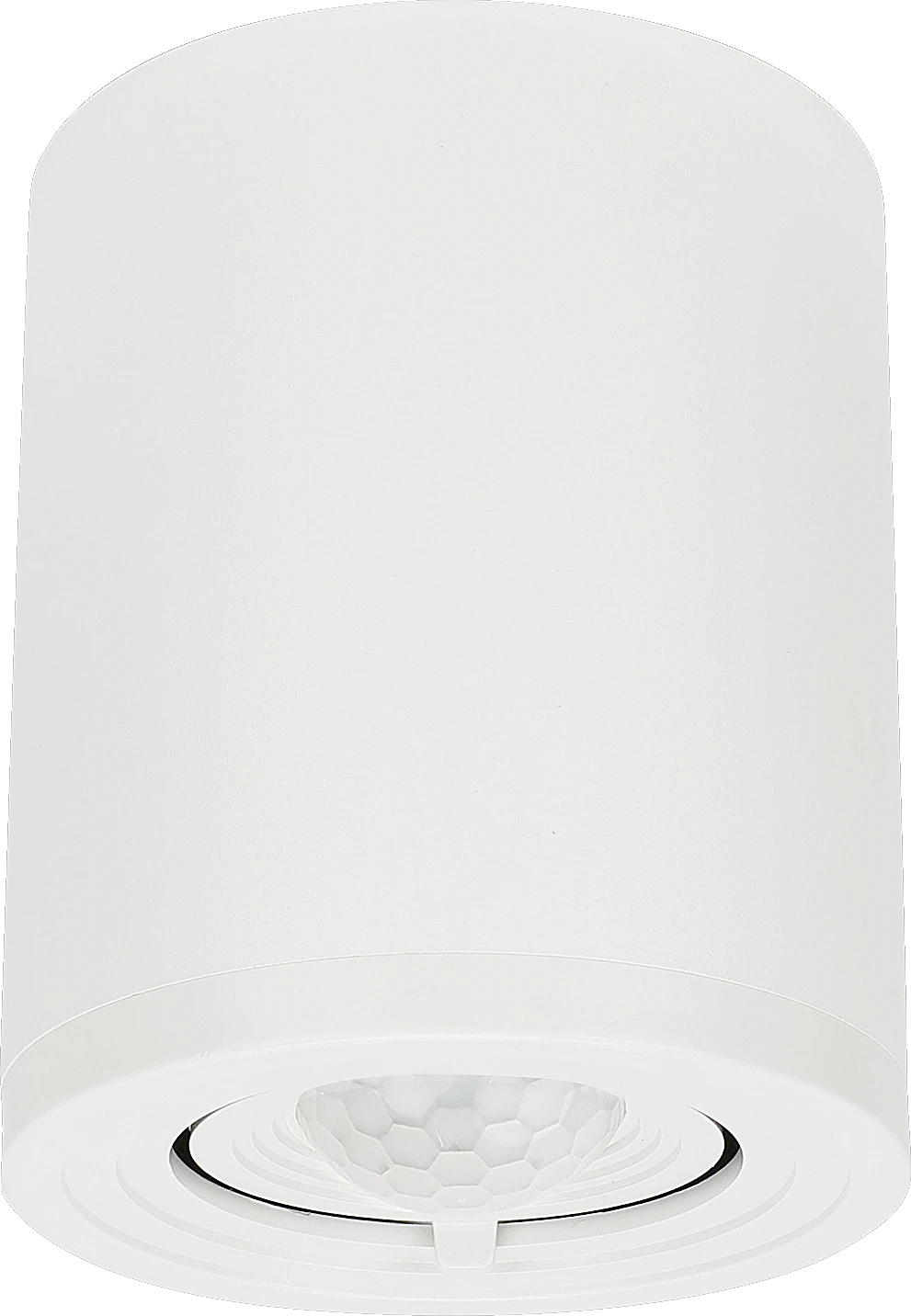

HBIR29/AA is a Bluetooth PIR motion sensor with built-in DALI output (90mA). Designed in a metal surface mount box, it features adjustable detection angles, capable of 360-degree rotation and extending up to 70 degrees for maximum angle adjustment .Using Bluetooth mesh networking via the Koolmesh app simplifies luminaire communication, ideal for retrofit projects and ensuring easy installation and cost savings.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | DALI & DALI-2 |
| Befestigungsloch: | 4.2000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 12x3 |
| Erforderlicher DALI-Strom: | 90.0000 mA |
| Features: | Adjustable Angle, Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Stand-alone |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 3.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 115.0000 mm |
| Produktlänge: | 94.0000 mm |
| Produkttiefe: | 94.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | 1 |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Zhaga: | No |
