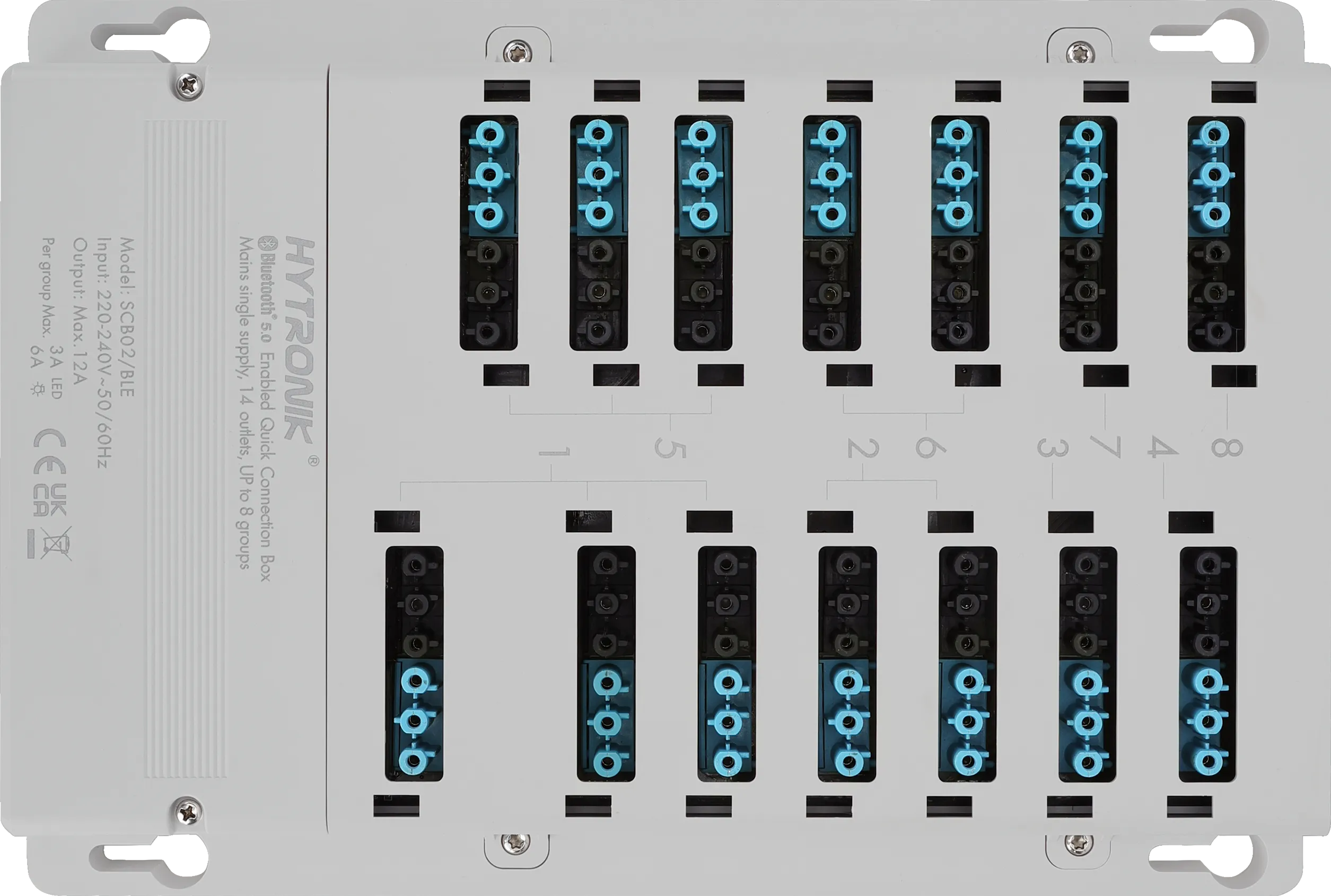

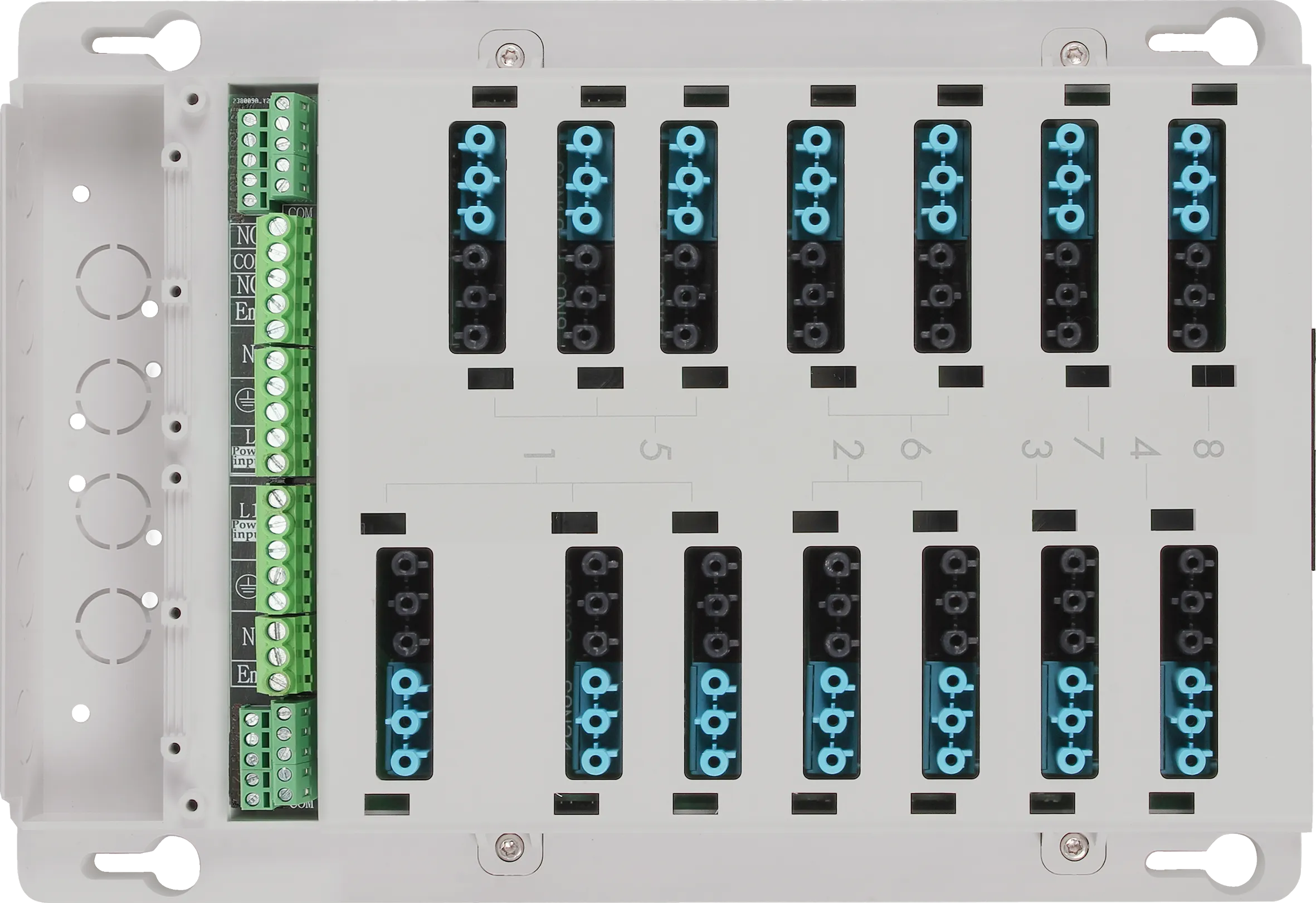

SCB02/BLE
Super Connection Box | Dimming & Switching | GST Types 6-poles x 14 lum. + 4 sensor
Vorteile
- Robust: 6-poles terminals with 2 selectable channels
- Support: VFC & ELT switch + 8 lum. channel via app
- Efficient: Dimming & switching control for 14 luminaires with 4 SELV sensor
ANWENDUNGEN
- Low-volt (SELV) application
- Offices
- Clasrooms
Produktinformationen "SCB02/BLE"
Dual-circuit design for applciations with both essential & non-essential supplies. Designed for low-volt (SELV) applcaitions with SELV sensor connection and SELV PUSH/retractive switch. GST type 6-pole terminal base quick connection box for dimming (DALI-2) & switching application, 14 luminaire outlets, 4 SELV RJ45 sensor outlets and 4 SELV switch inputs. Support up to 8 luminaire channels via app, and an extra channel for VFC (volt-free contact) and two extra channel for ELT switches.
Ausgangsschnittstelle: | Volt-free Contact (VFC) |
---|---|
Ausgangsspannung: | 220-240VAC 50/60Hz |
Befestigungsloch: | 20.0000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52840 |
Category - Modular Wiring Systems: | Dual-Circuit Connection Boxes |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Lagertemperatur: | 60 °C |
Lagertemperatur min.: | -20 °C |
Product height: | 47.5000 mm |
Produktlänge: | 335.0000 mm |
Produkttiefe: | 233.0000 mm |
Schutzart: | IP20 |
Taster Eingänge: | 4 |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Zhaga: | No |
