SAM4
HF Lowdbay | Dreistufige Dimmung | XH-4P-Anschluss
FEATURES
- Kompakt: Rechteckiges Standard-Plug&Play-Sensordesign
- Sicherheit: mit Nulldurchgangsrelaisbetrieb
- Einfach: Sensoreinstellung über DIP-Schalter
ANWENDUNGEN

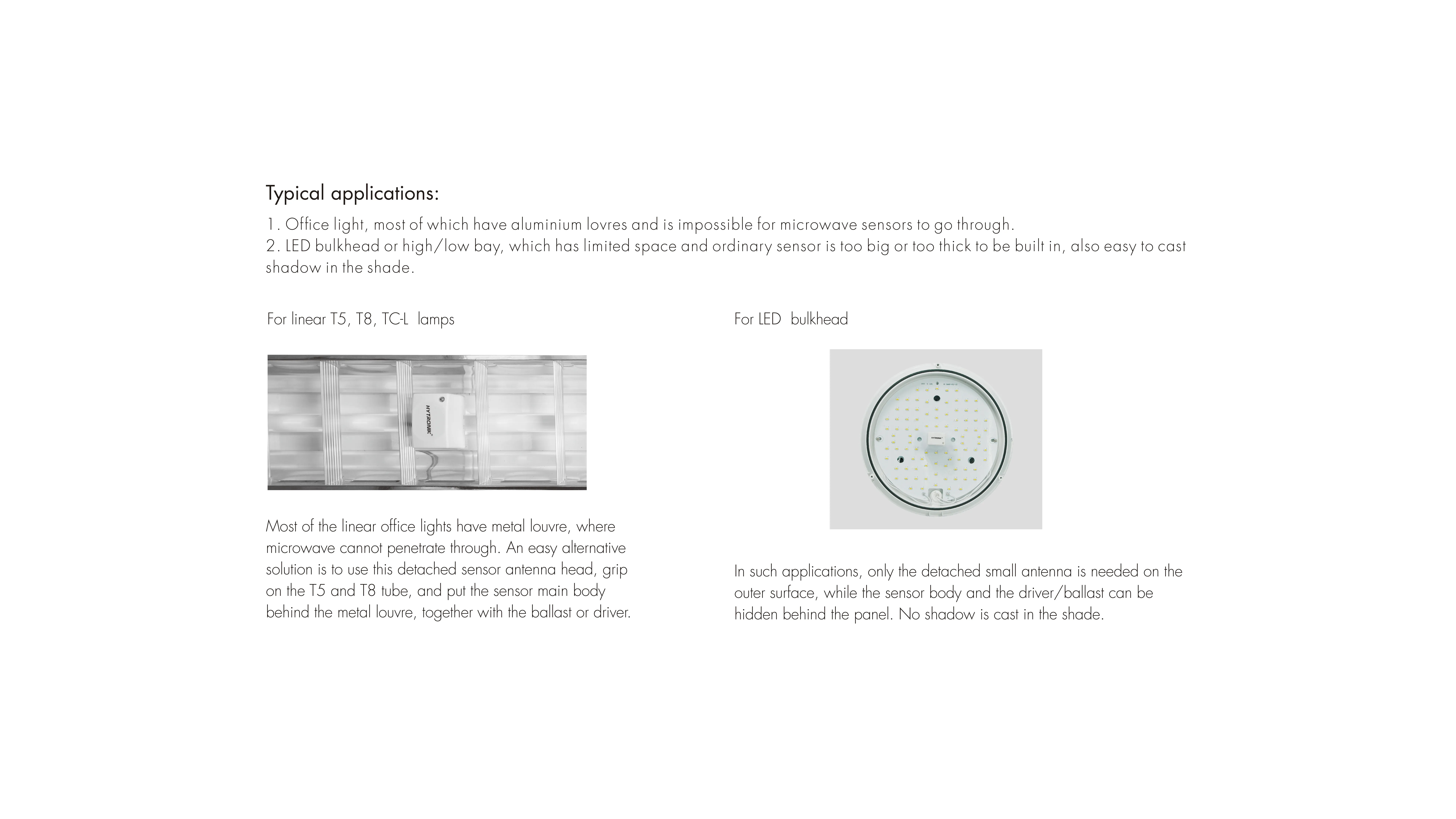

- Master-Leuchte mit Sensor
- Klassenzimmer
- Ämter
Produktinformationen "SAM4"

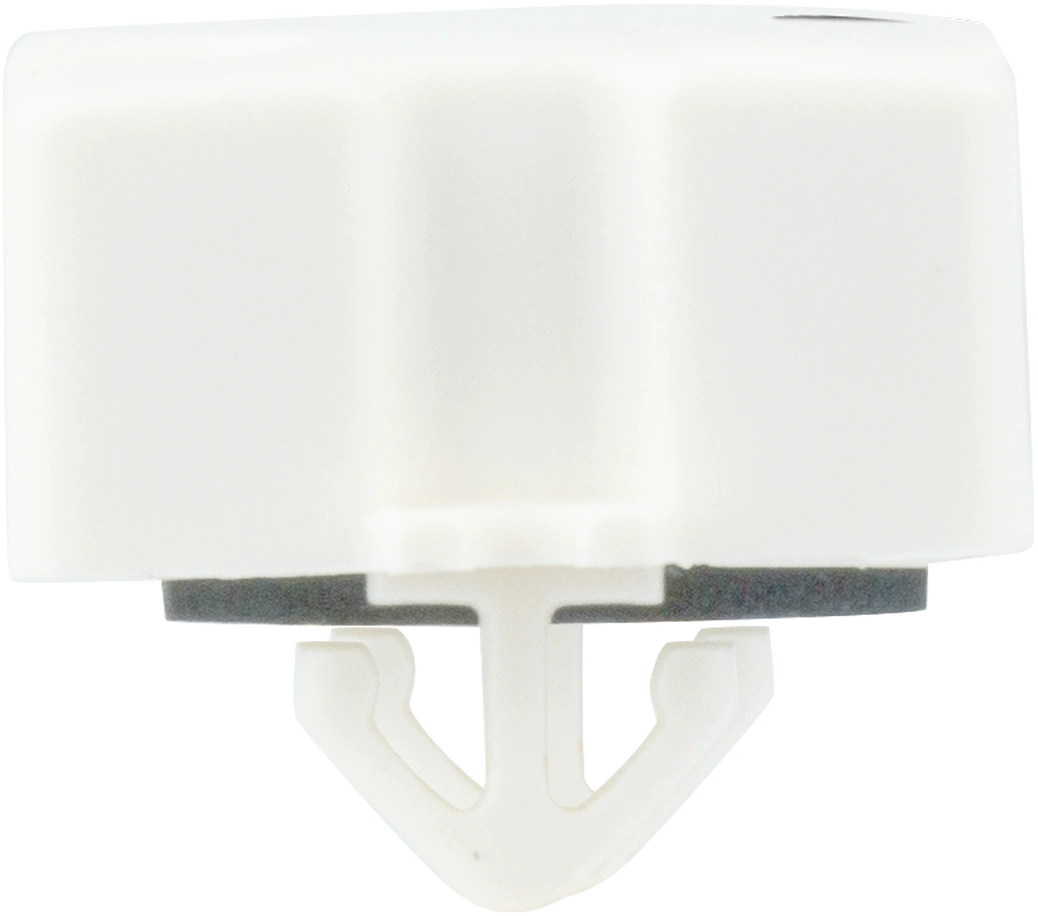

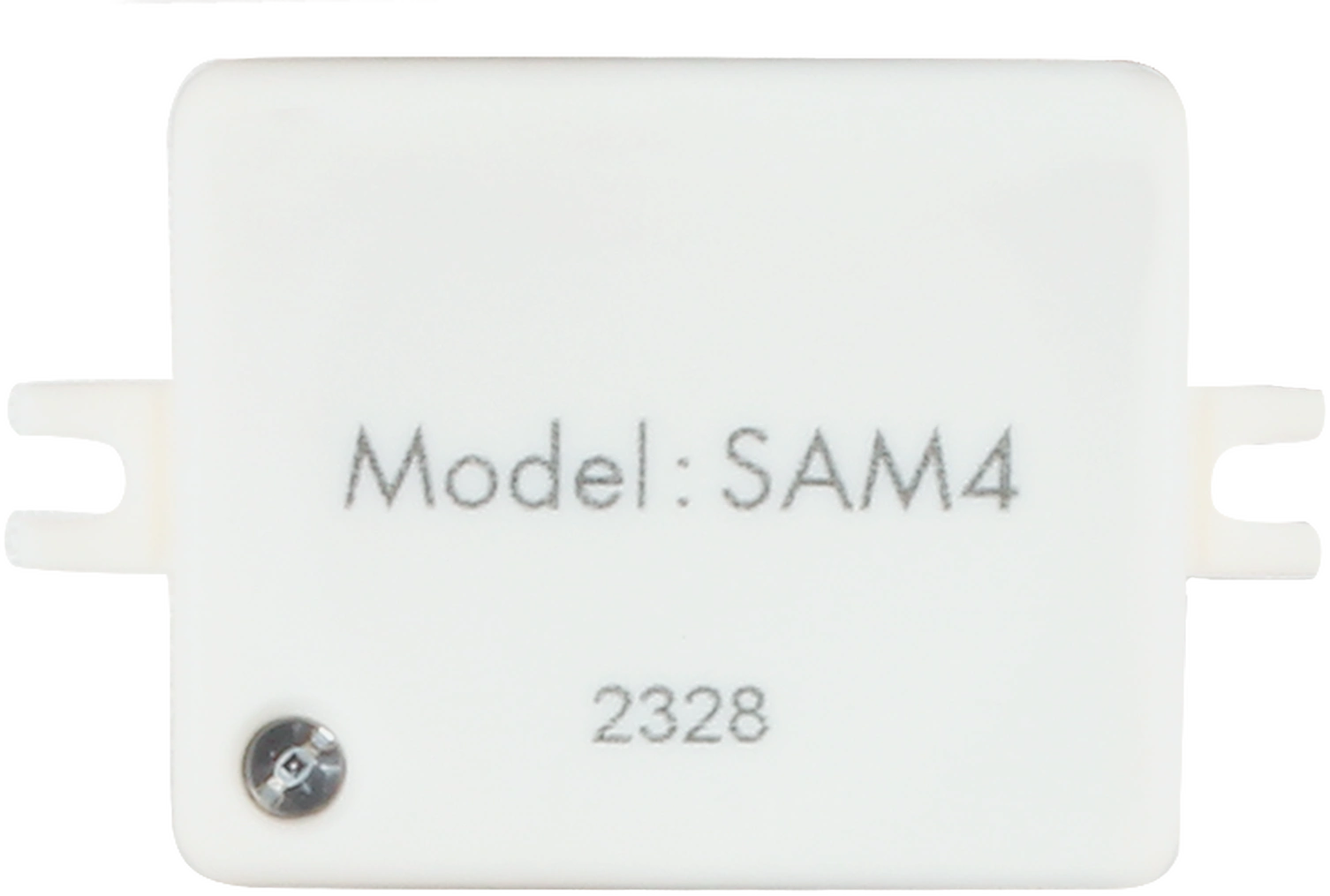

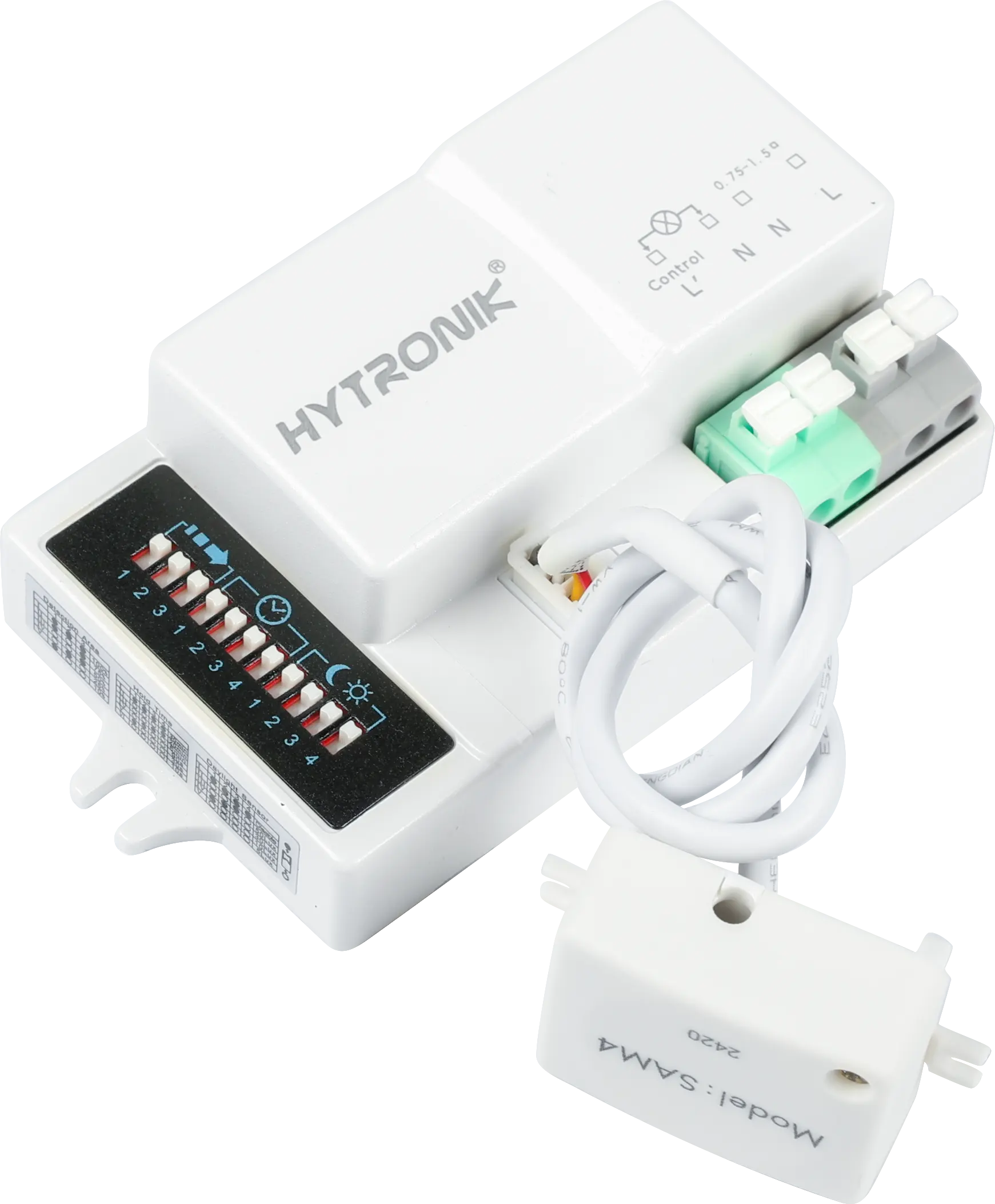

Der SAM4 ist ein HF-Sensorkopf. Er kann mit den linearen Steuereinheiten wie HC009S/KD und HC403V-KD arbeiten. Er bietet eine große Anzahl von Plug'n'Play-Optionen, um eine größere Flexibilität bei Leuchtendesigns zu ermöglichen.
| Anschlusstyp: | RJ12 |
|---|---|
| Betriebsspannung: | 5 VDC |
| Detektionsbereich (Durchmesser): | 12x6 |
| Detektionsverfahren: | Mikrowellensensor (MW) |
| Detektionswinkel: | 30° - 150° |
| Eigenschaften: | Korridorfunktion |
| Einbauöffnung: | 2.5000 mm |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | DIP-Schalter |
| Installationstyp: | Einbau, Plug & Play Sensoren |
| Korridorfunktion: | Ja |
| Lagertemperatur: | 70 °C |
| Max. Luftfeuchtigkeit: | 90 % |
| Maximale Montagehöhe: | 6.0000 m |
| Min. Lagertemperatur: | -40 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Montagehöhe: | Low-bay |
| Produktbreite: | 25.5000 mm |
| Produktgewicht: | 36.0000 g |
| Produkthöhe: | 12.0000 mm |
| Produktlänge: | 30.7000 mm |
| Spannungsart: | DC |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -20 °C |
| Zhaga: | Nein |
Datenblätter
Produktdatenblatt: sam4.pdf
