SAM15
HF Highbay | DALI-2 Broadcast Output | Zhaga Book 18 Standard
Vorteile
- Compact: Small IP65 Zhaga Book 18 sensor
- Power: 40mA DALI power supply built-in
- User-friendly: All sensor settings via IR controller
ANWENDUNGEN

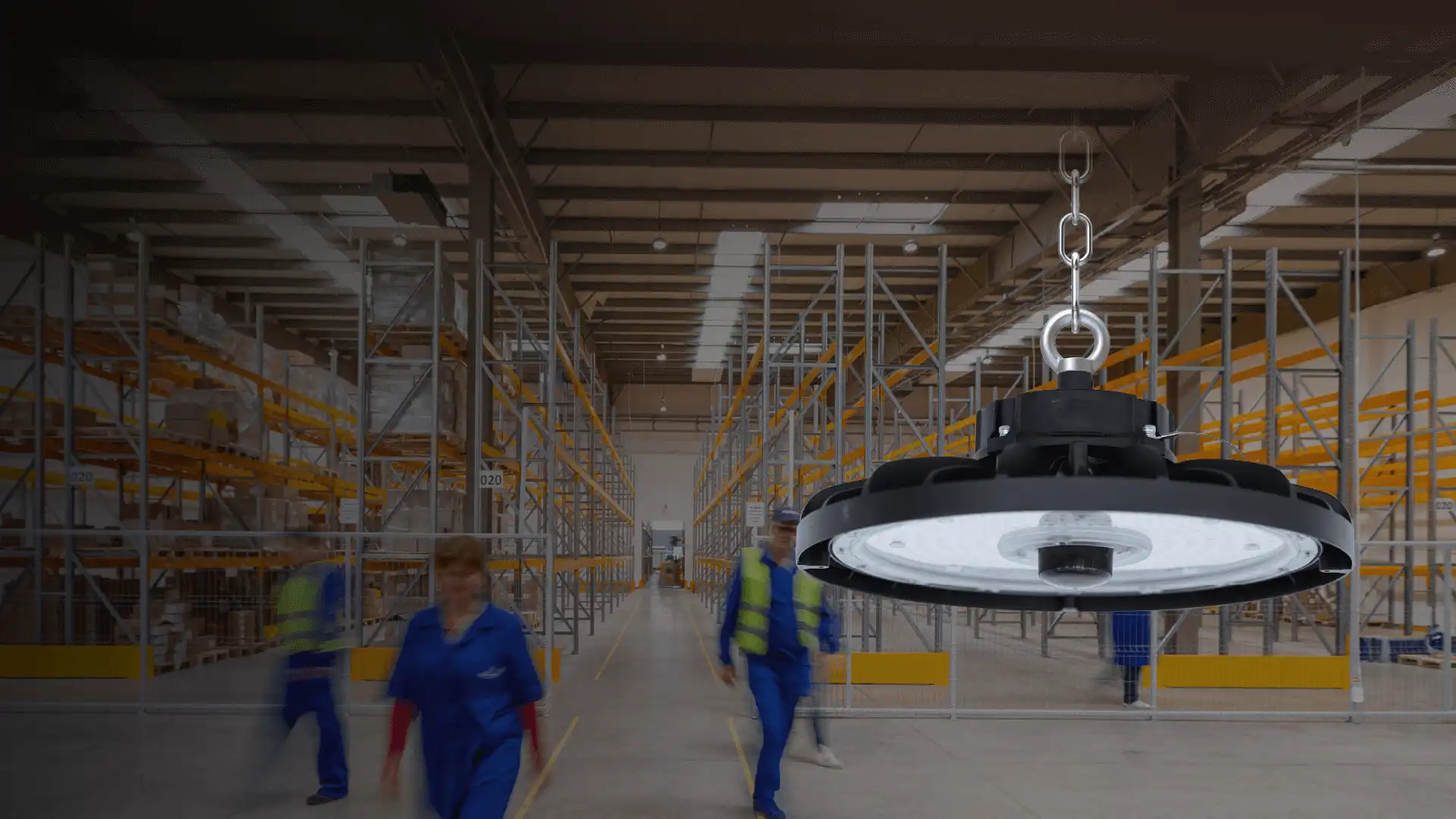

- UFO luminaires with a height of up to 12m
- Warehouse/ Logistic
- Outdoor/Street lights
Produktinformationen "SAM15"

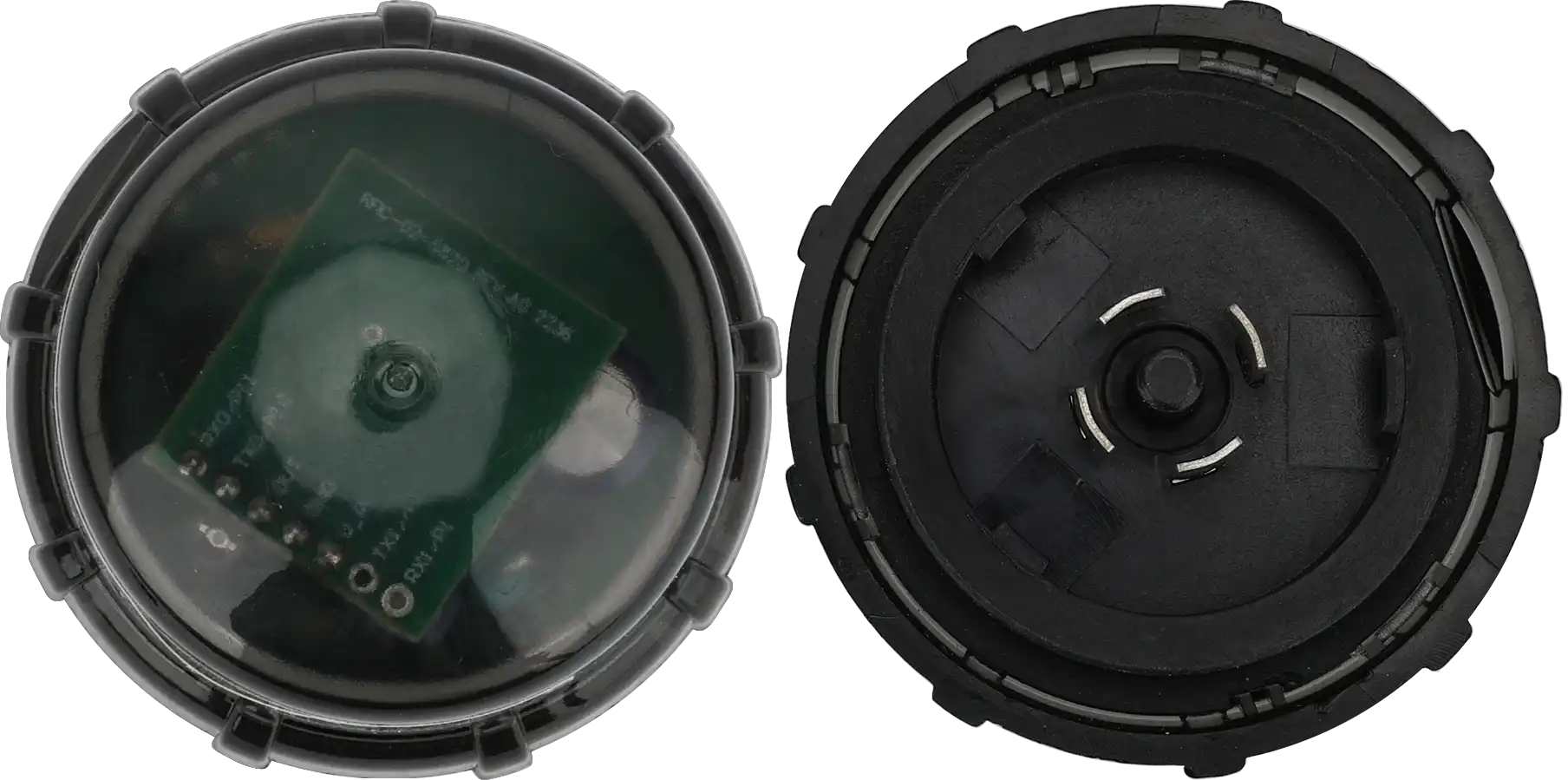

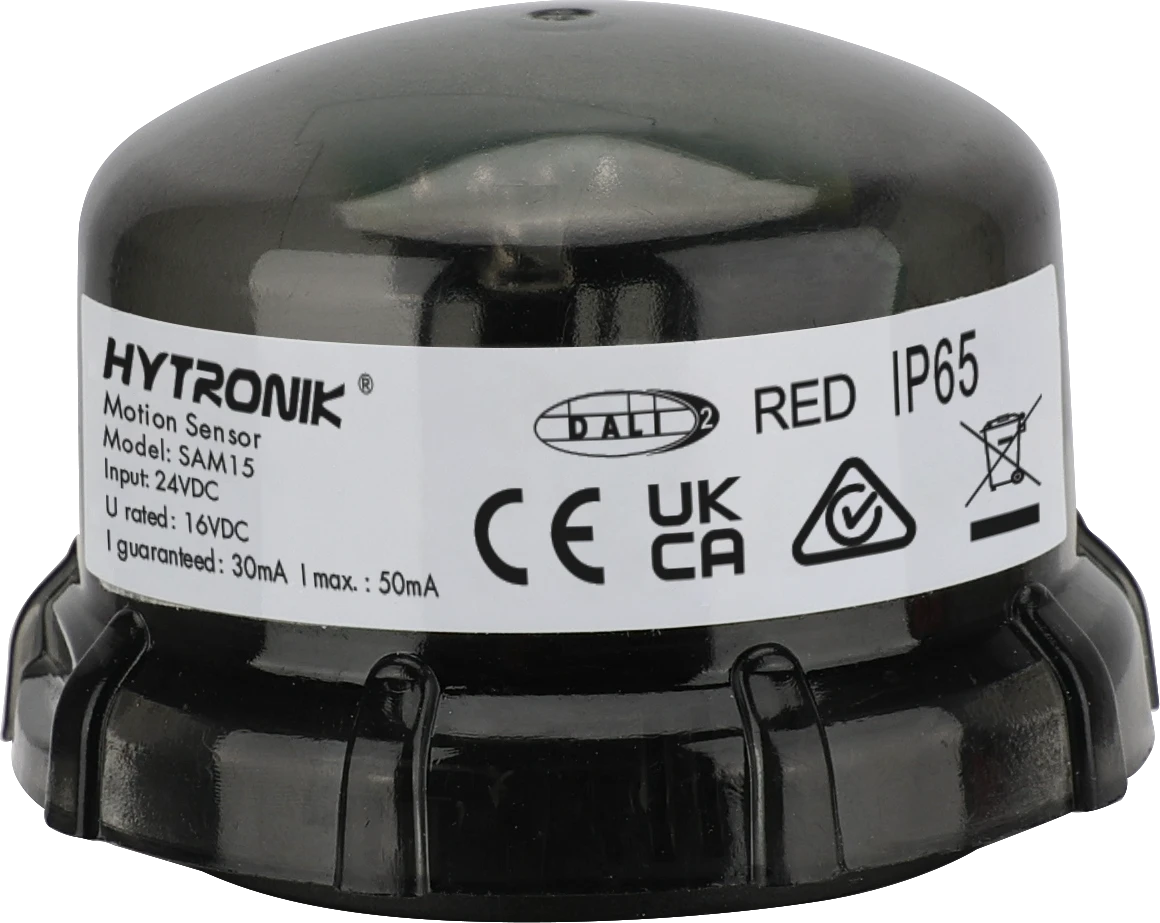

SAM15 is a Zhaga Book 18 standard HF motion sensor with built-in DALI-2 output (40mA DALI power supply). It allows lighting designers/manufacturers to connect seamlessly to luminaires. All sensor parameters can be programmed via the remote controller HRC-11, including sensitivity, time, lux level, and brightness settings. Designed with a robust IP65 structure, SAM15 is perfect for high-bay applications, accommodating installations up to 12m in height, making it ideal for outdoor lighting such as streetlights.
Anschlusstyp: | Zhaga book 18 |
---|---|
Ausgangsschnittstelle: | DALI-2 |
Betriebsspannung: | 24VDC |
Detection angle: | 360° |
Detektionsverfahren: | Microwave (MW) |
Erfassungsbereich (DxH): | 14x12 |
Erforderlicher DALI-Strom: | 40.0000 mA |
Features: | Daylight Harvest |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | Remote Controller |
Installationstyp: | Built-in, Zhaga |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Maximale Montagehöhe: | 12.0000 m |
Montagehöhe: | High-bay |
Product height: | 35.0000 mm |
Produkttiefe: | 50.8000 mm |
Schutzart: | IP65 |
Taster Eingänge: | |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | DC |
Zhaga: | Yes |
