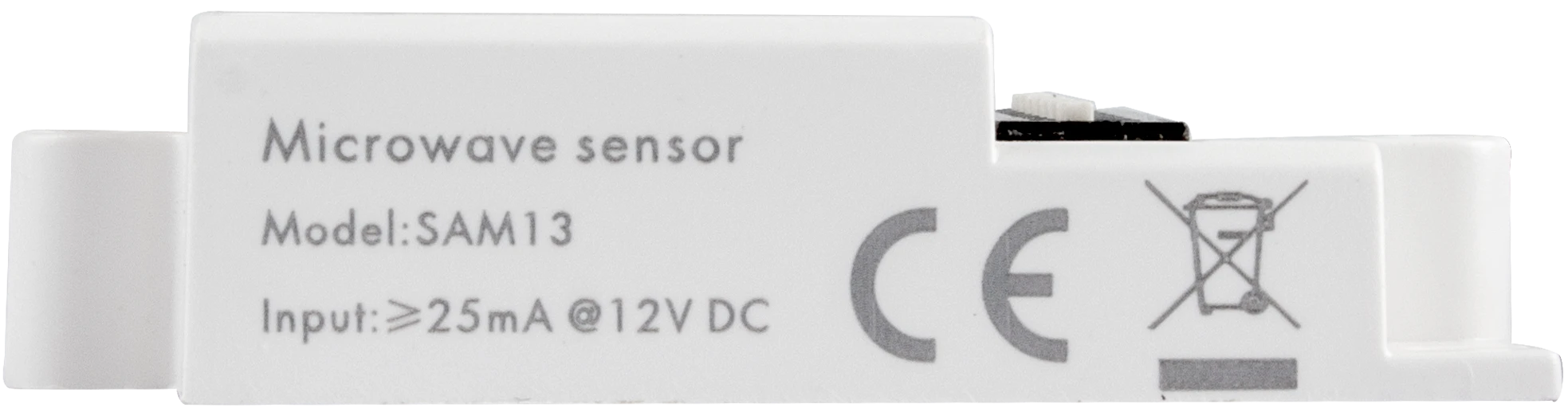

SAM13

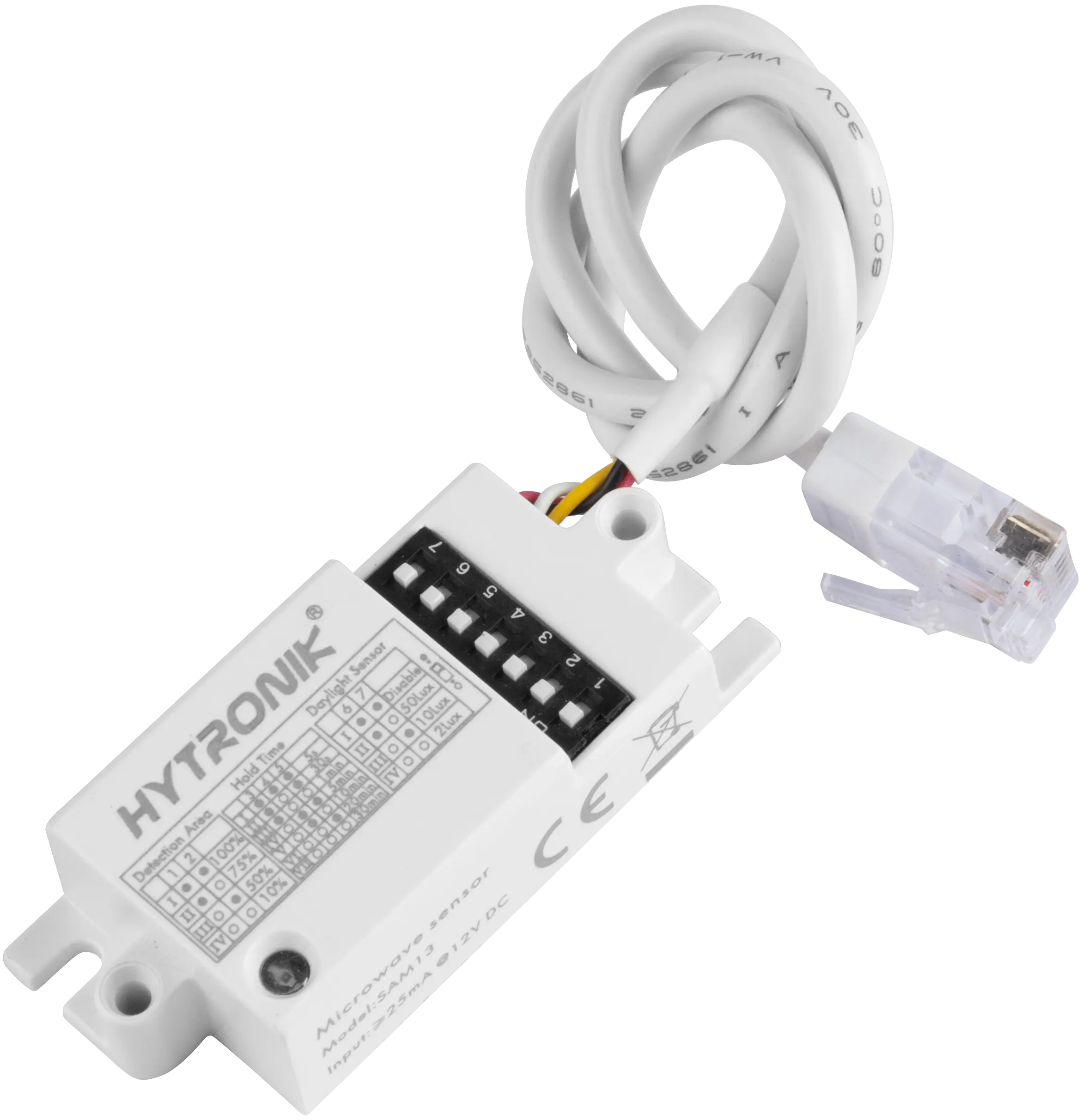

HF Lowdbay | ON/OFF | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robust HF antenna design against wireless interference

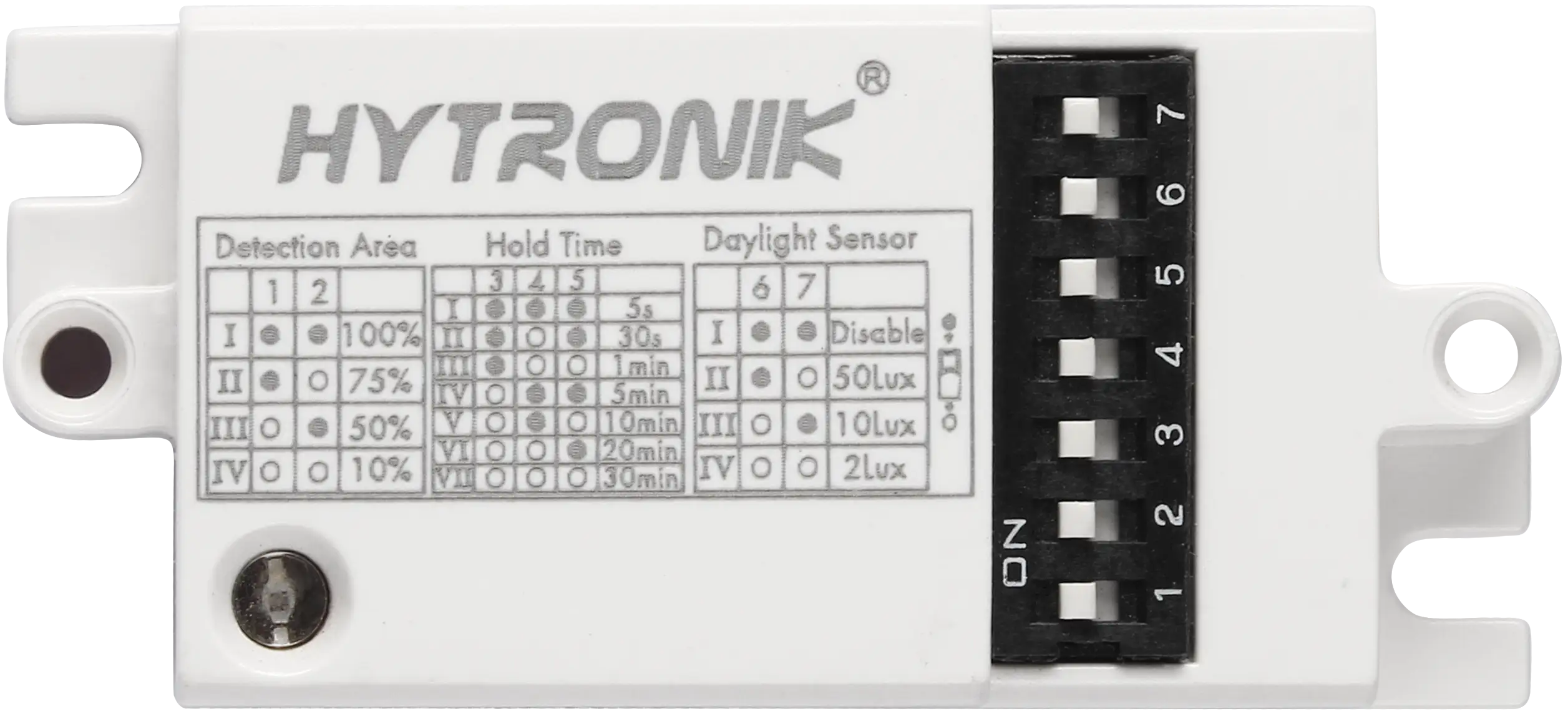

- Easy: Sensor setting via DIP-switches
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "SAM13"
SAM13 is a HF sensor head and compatible with the On/Off Contro. It can work with the linear shaped control base HC038 and HC438. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Befestigungsloch: | 2.5000 mm |
| Betriebsspannung: | 5 VDC |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x6 |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | DIP-switch |
| Installationstyp: | Built-in, Plug & Play Sensor Heads |
| Montagehöhe: | Low-bay |
| Product height: | 12.5000 mm |
| Produktlänge: | 50.5000 mm |
| Produkttiefe: | 22.5000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
