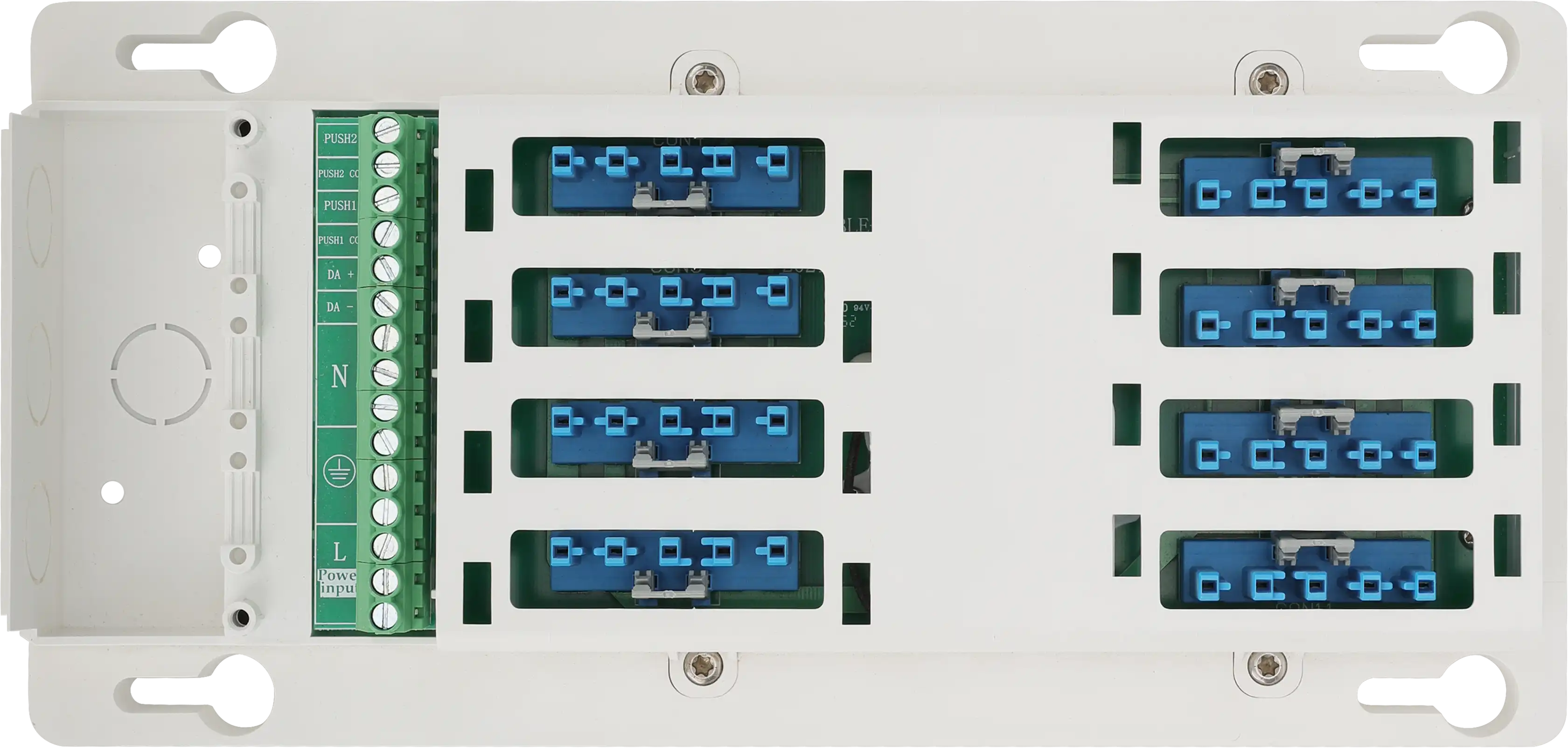

QCB02/BLE-D2
Quick Connection Box | DALI/DALI2 | GST Types 5-poles x 8 lum. + 1 sensor
Vorteile
- Robust: 5-poles terminals with 8 x luminaire outlets
- Clean: Reduce wiring labour hours and improve safety
- Flexible: Built-in Bluetooth 5.0 control module
ANWENDUNGEN
- Remote wireless control via Koolmesh
- Classrooms
- Offices
Produktinformationen "QCB02/BLE-D2"
• Dimmable control applications - DALI/DALI-2
• Intelligent control with Bluetooth 5.0 SIG mesh module built in
• 4 types of built-in Bluetooth 5.0 control module to select from
• Luminaire outlet: Wago 5-pole terminal base (L’, N, E, Dim+, Dim-)
• Black housing and white housing available to choose from
• Tamper-proof structure design
• Expandable: easy extension to another QCB02/BLE wirelessly
• Rating of system: Max. 100mA DALI/DALI-2 power supply
• Flame-retardant material for safety protection
Ausgangsschnittstelle: | DALI & DALI-2 |
---|---|
Ausgangsspannung: | 220-240VAC 50/60Hz |
Befestigungsloch: | 20.0000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Category - Modular Wiring Systems: | Single-Circuit Connection Boxes |
Erforderlicher DALI-Strom: | 100.0000 mA |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Lagertemperatur: | 60 °C |
Lagertemperatur min.: | -20 °C |
Product height: | 45.0000 mm |
Produktlänge: | 299.5000 mm |
Produkttiefe: | 143.5000 mm |
Schutzart: | IP20 |
Taster Eingänge: | 2 |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Zhaga: | No |
