HTG01/F
Real-time keeper | Bluetooth repeater module | Srew fixation
Vorteile
- Tiny: Installation holes for switch mounting boxes
- Versatile: Bluetooth signal extension and real-time chip
- Convinient: Accurate timekeeping for up to 12 weeks during power loss
ANWENDUNGEN
- Warehouses, manufacturing plants
- Large areas with "signal dead spots"
- Sites with general on/off cycles
Produktinformationen "HTG01/F"

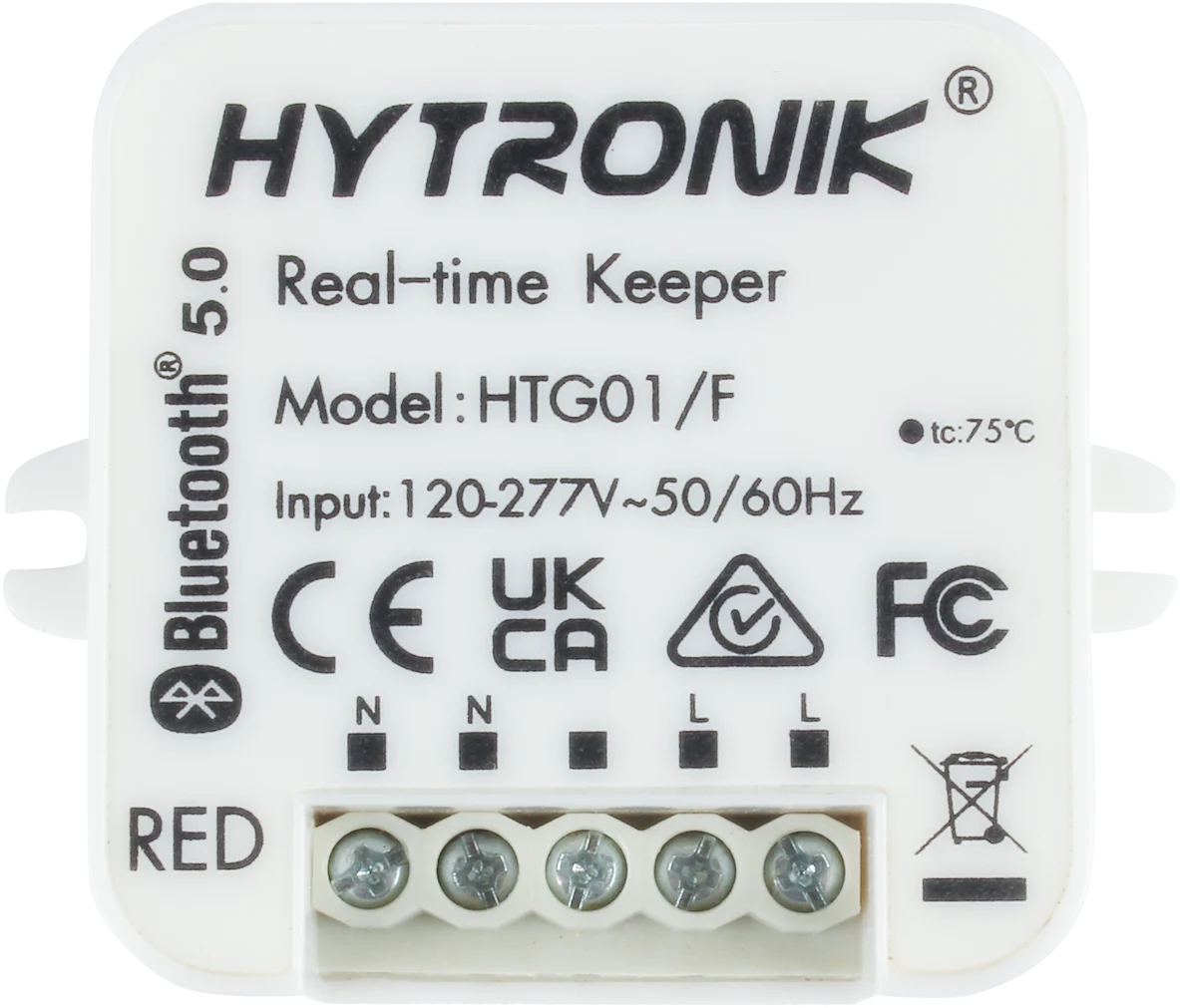

HTG01/F is Bluetooth modules with a real-time chip built in that can keep real time running for up to 12 weeks during power loss, which is very convenient for Bluetooth system/network where there is constant need for power on/off. When a product group mesh network is created, the entire network takes HTG01/F as the authoritative time.
Befestigungsloch: | 3.1000 mm |
---|---|
Betriebsspannung: | 120 - 277 VAC |
Bluetooth Frequenz: | 2.4 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Category - System Level Components: | Real-time Keeper/Repeater Module |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Product height: | 22.0000 mm |
Produktlänge: | 58.0000 mm |
Produkttiefe: | 46.0000 mm |
Schutzart: | IP20 |
Umgebungstemperatur: | 60 °C |
Umgebungstemperatur min.: | -20 °C |
