HTG01

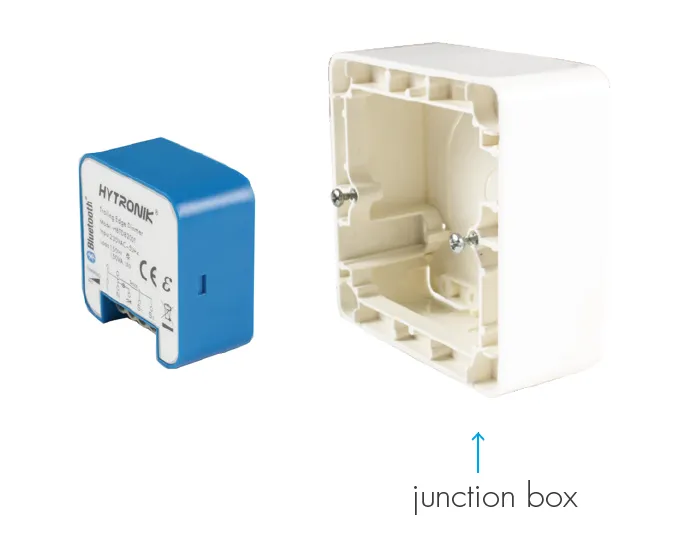

Real-time keeper | Bluetooth repeater module | Junction box
Vorteile
- Tiny: Fits in many mounting boxes
- Versatile: Bluetooth signal extension and real-time chip
- Convinient: Accurate timekeeping for up to 12 weeks during power loss
ANWENDUNGEN
- Warehouses, manufacturing plants
- Sites with general on/off cycles
- Large areas with "signal dead spots"
Produktinformationen "HTG01"
HTG01 is a Bluetooth modules with a real-time chip built in that can keep real time running for up to 12 weeks during power loss, which is very convenient for Bluetooth system/network where there is constant need for power on/off. When a product group mesh network is created, the entire network takes HTG01 as the authoritative time.
| Betriebsspannung: | 120 - 277 VAC |
|---|---|
| Bluetooth Frequenz: | 2.4 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| Category - System Level Components: | Real-time Keeper/Repeater Module |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Product height: | 22.0000 mm |
| Produktlänge: | 46.0000 mm |
| Produkttiefe: | 46.0000 mm |
| Schutzart: | IP20 |
| Umgebungstemperatur: | 60 °C |
| Umgebungstemperatur min.: | -20 °C |
