HMW28/PRO
HF Lowbay Occupancy | ON/OFF | Surface mounting
Vorteile
- High accuracy: True Occupancy technology for sensitive detection
- Simple: Daylight, detection range / holdtime
- Robust: configuration via remote controller
ANWENDUNGEN
- Standalone installation for ceiling up to 3m
- Office/ Meeting rooms
- Schools
Produktinformationen "HMW28/PRO"

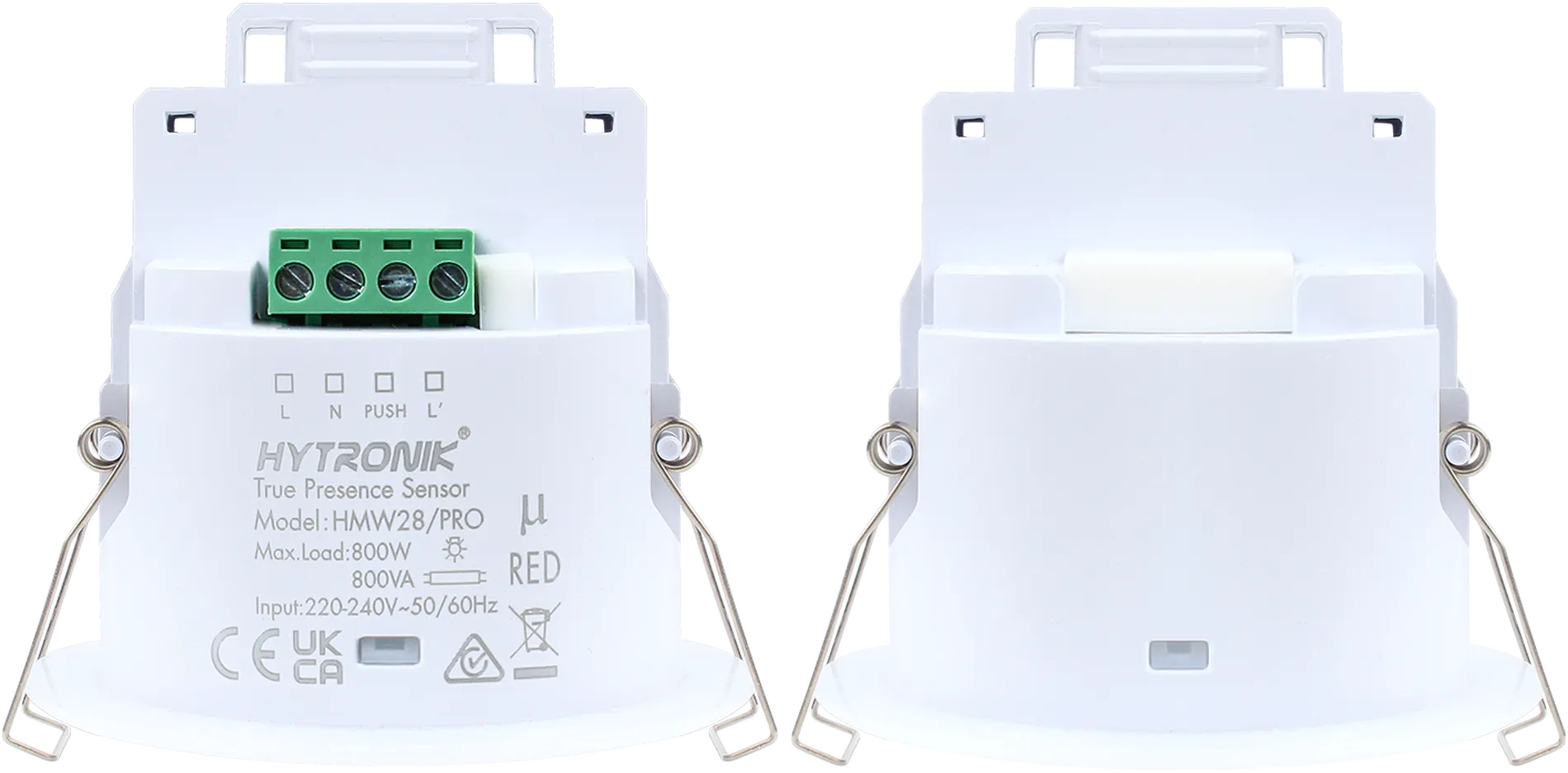

HMW28/PRO is Microwave standalone motion sensor integrated with Hytronik True occupancy detection technology, On/Off control with one relay channel output, which is NO (normally open contact). The Hytronik True occupancy detection technology works to detect human breathing rather than the mirror movements. No matter if the person sit/stand statically or turns their back to the sensor. The sensor can accurately recognize occupancy and keeps the lights on all the time. It is ideal for typical indoor applications such asclassroom, office, healthcare, and other commercial areas.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | Relais On/Off |
Ausgangsspannung: | 220-240VAC 50/60Hz |
Befestigungsloch: | 66.0000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Daylight Harvest: | Nein |
Detektionsverfahren: | Microwave True Occupancy |
Erfassungsbereich (DxH): | 10x3 |
Features: | Daylight Harvest |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | Remote Controller |
Installationstyp: | Stand-alone |
Lens type: | Standard Low-bay |
Maximale Montagehöhe: | 3.0000 m |
Montagehöhe: | Low-bay |
Product height: | 73.0000 mm |
Produkttiefe: | 78.0000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Zhaga: | No |
