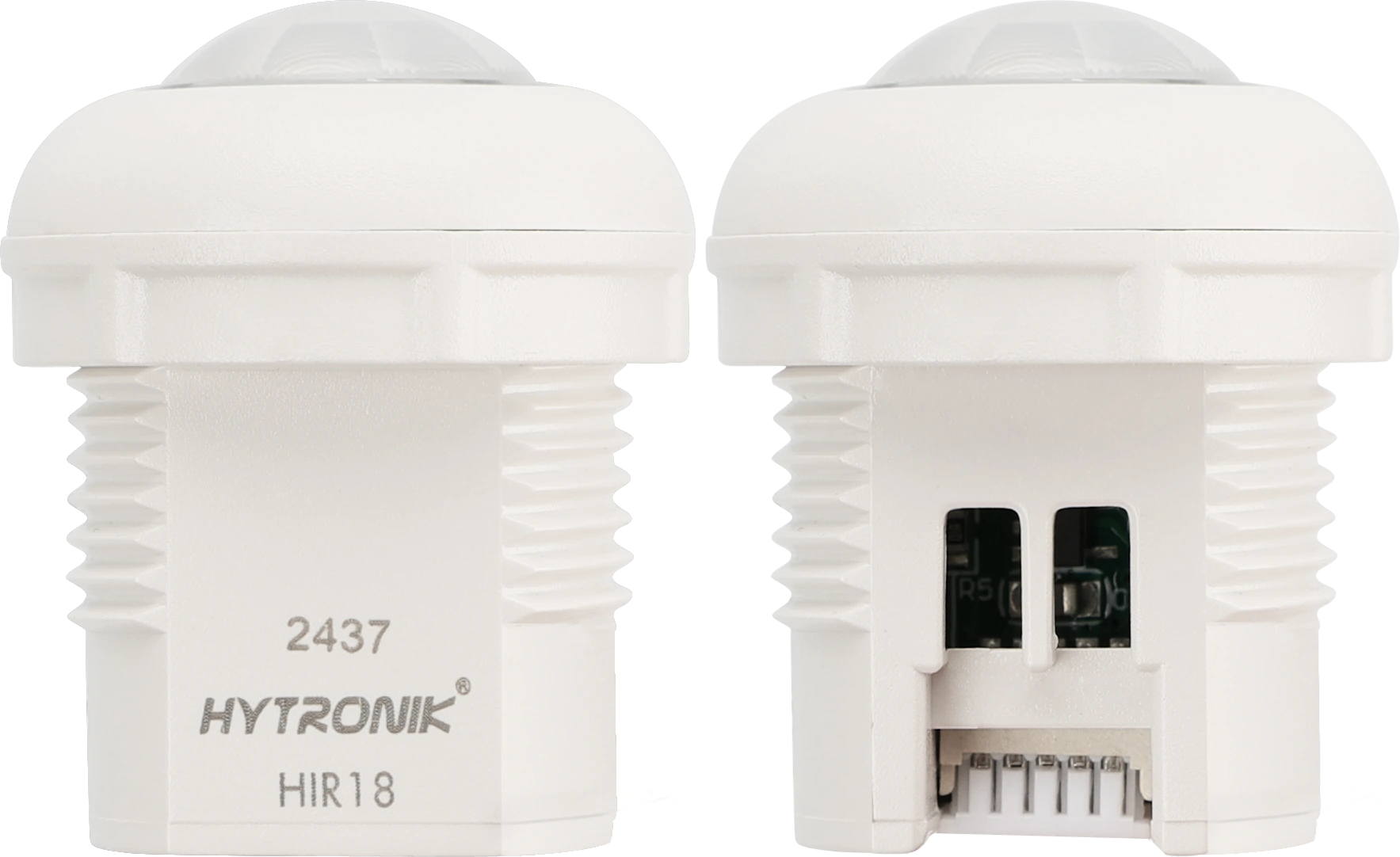

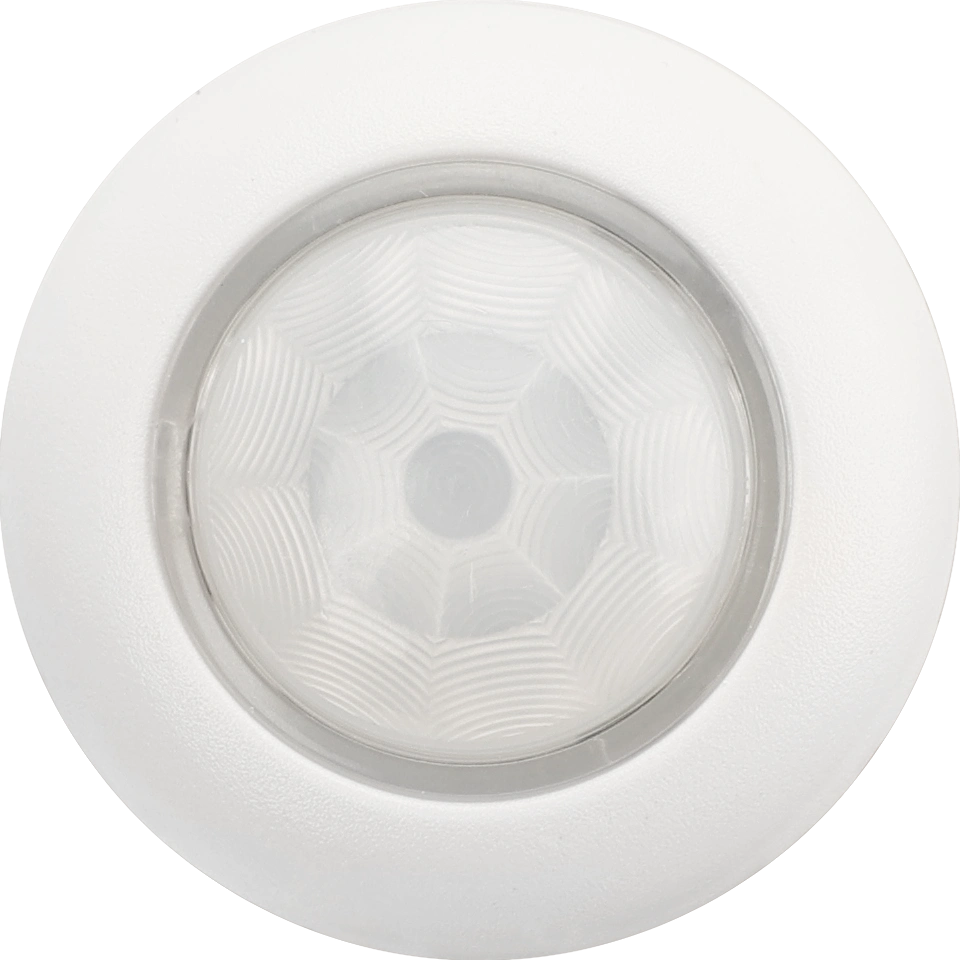

HIR18
PIR Lowbay | ON/OFF | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: On/Off control
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN

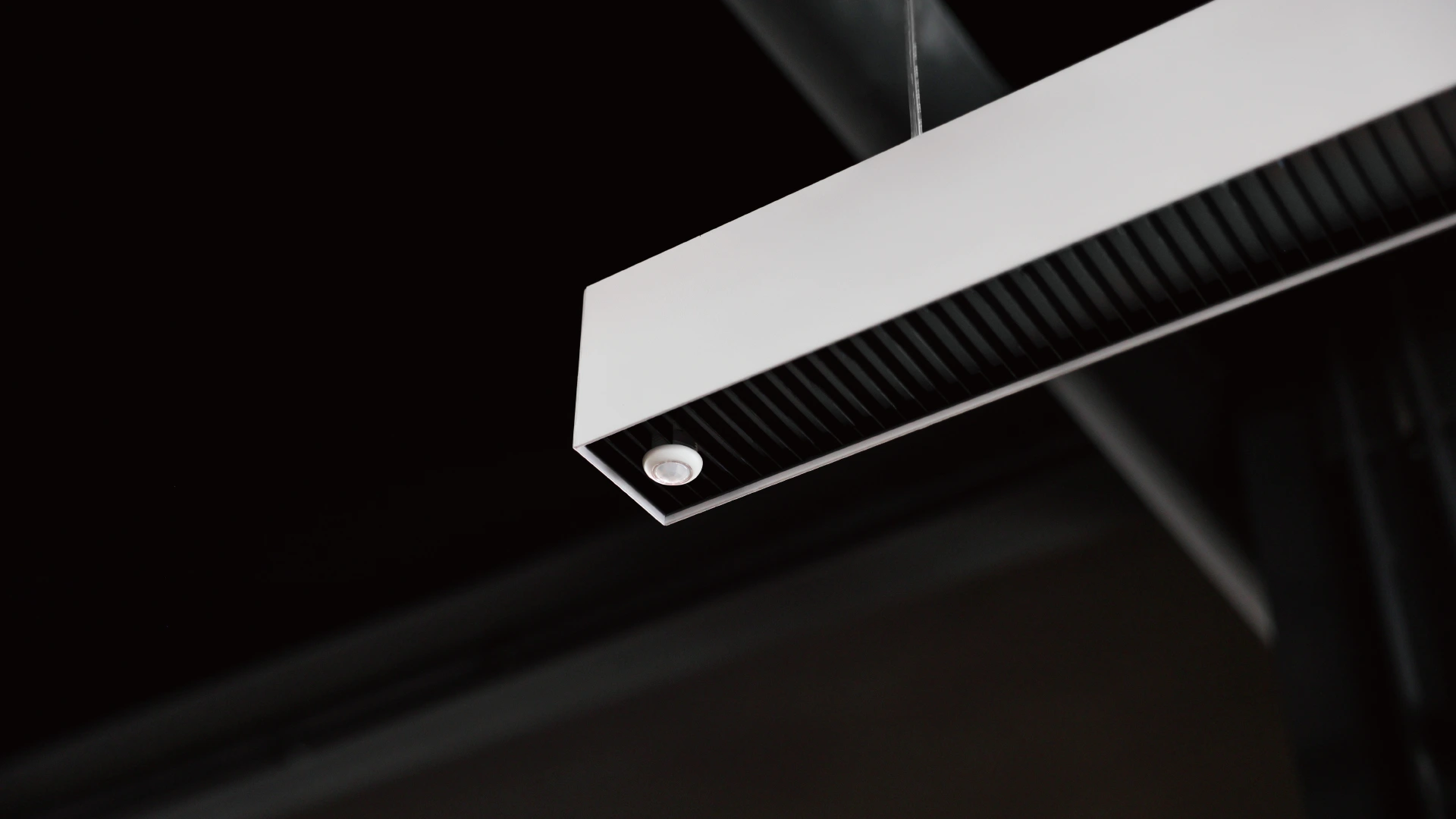

- Master luminaire with sensor
- Offices
- Classrooms
Produktinformationen "HIR18"
HIR18 is a PIR sensor head and compatible with the On/Off Control It can work with the linear shaped control base such as HC038 and HC438. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Befestigungsloch: | 31.8000 mm |
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Nein |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 12x3 |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Built-in, Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 3.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 26.0000 mm |
| Produkttiefe: | 31.8000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
