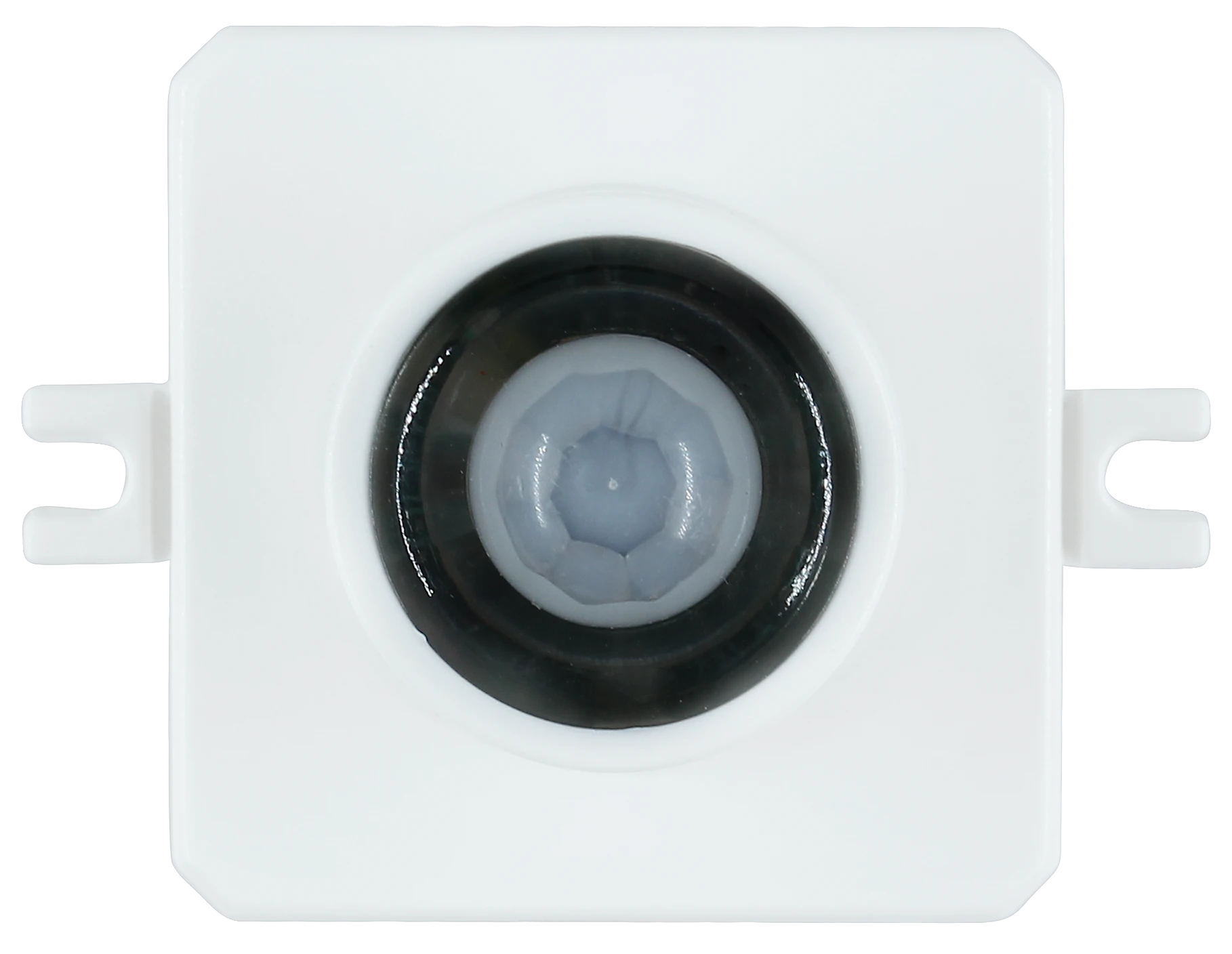

HIR02/RC12
PIR Lowbay | ON/OFF | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Simple: On/Off control
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Master luminaire with sensor
- Classrooms
- Offices
Produktinformationen "HIR02/RC12"
HIR02/RC12 is a PIR sensor head. It can work with the linear shaped control base such as HC038 and HC438. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Betriebsspannung: | 5 VDC |
|---|---|
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 6x3 |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |

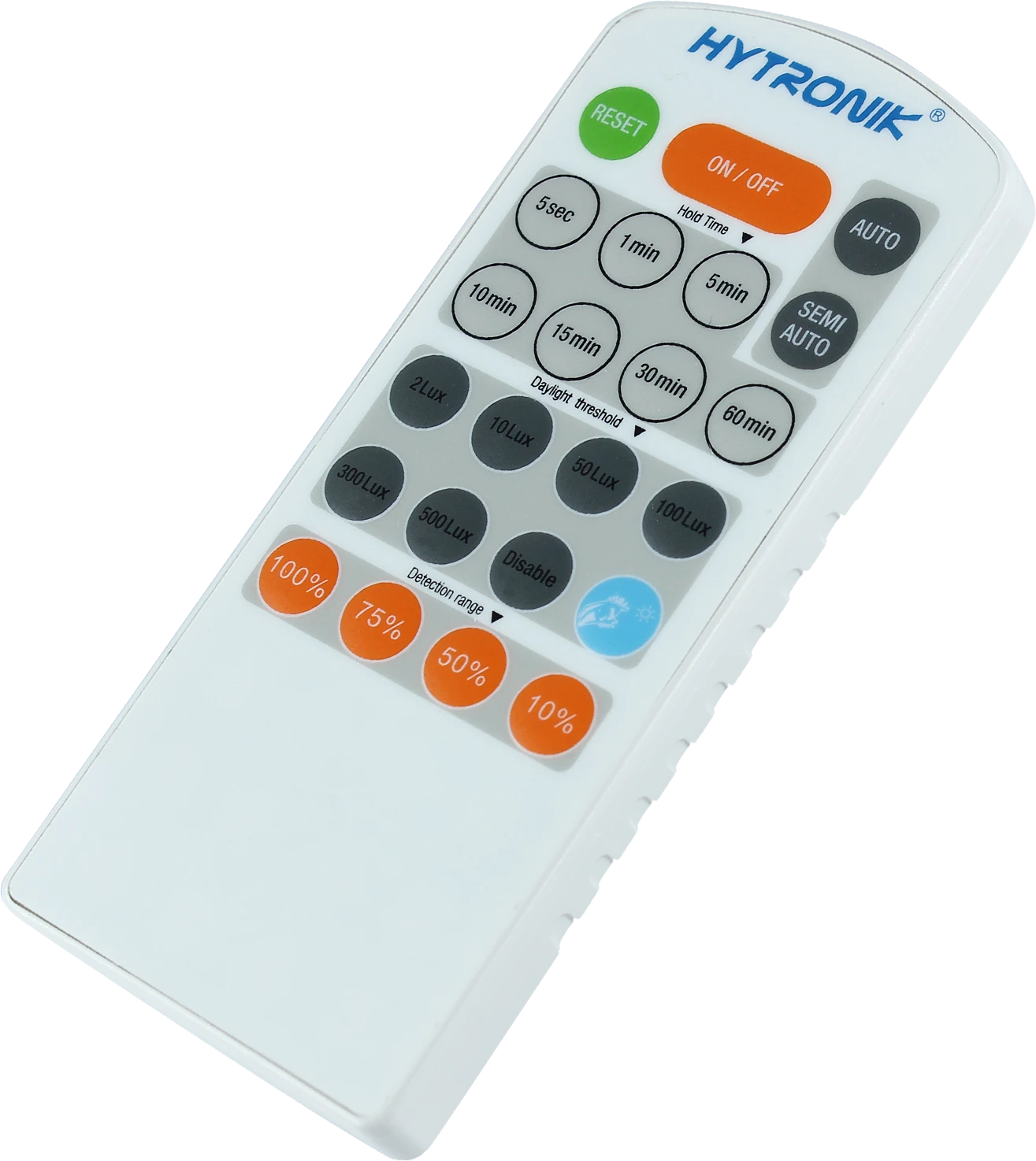

| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Built-in, Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 3.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 25.8000 mm |
| Produktlänge: | 39.5000 mm |
| Produkttiefe: | 30.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
