HIM30-B-L3
HF+PIR Highbay | ON/OFF | Conduit screw+Horizontal lenses
Vorteile
- High accuracy: DUAL Sense with HF and PIR technology
- Autonomous: On/off occupancy control for up to 1000W
- User-Friendly: With one-key commissioning via IR controller/Rotary Switch
ANWENDUNGEN
- Screw to the Luminaire by conduit
- Warehouse
- Production
Produktinformationen "HIM30-B-L3"

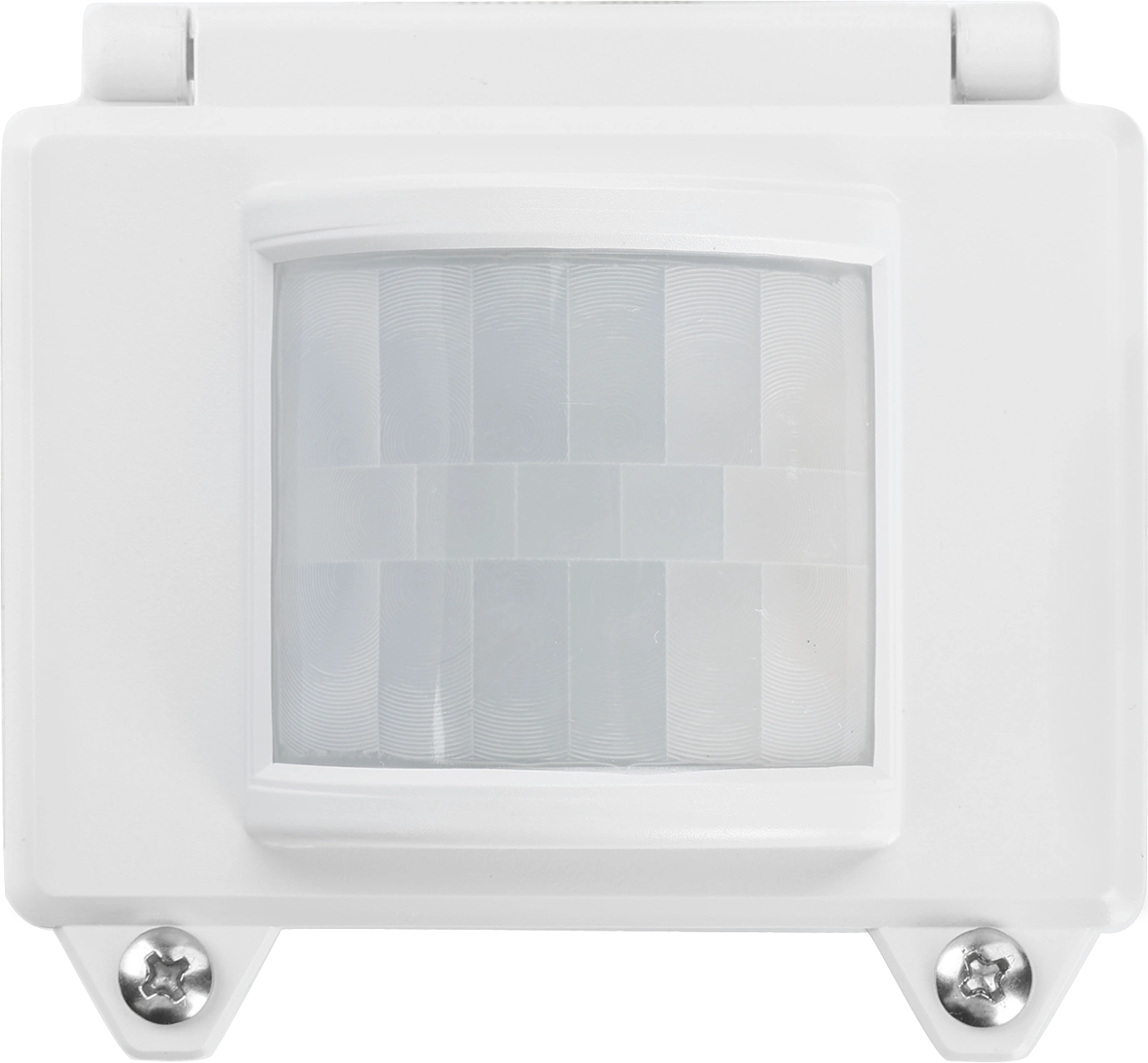

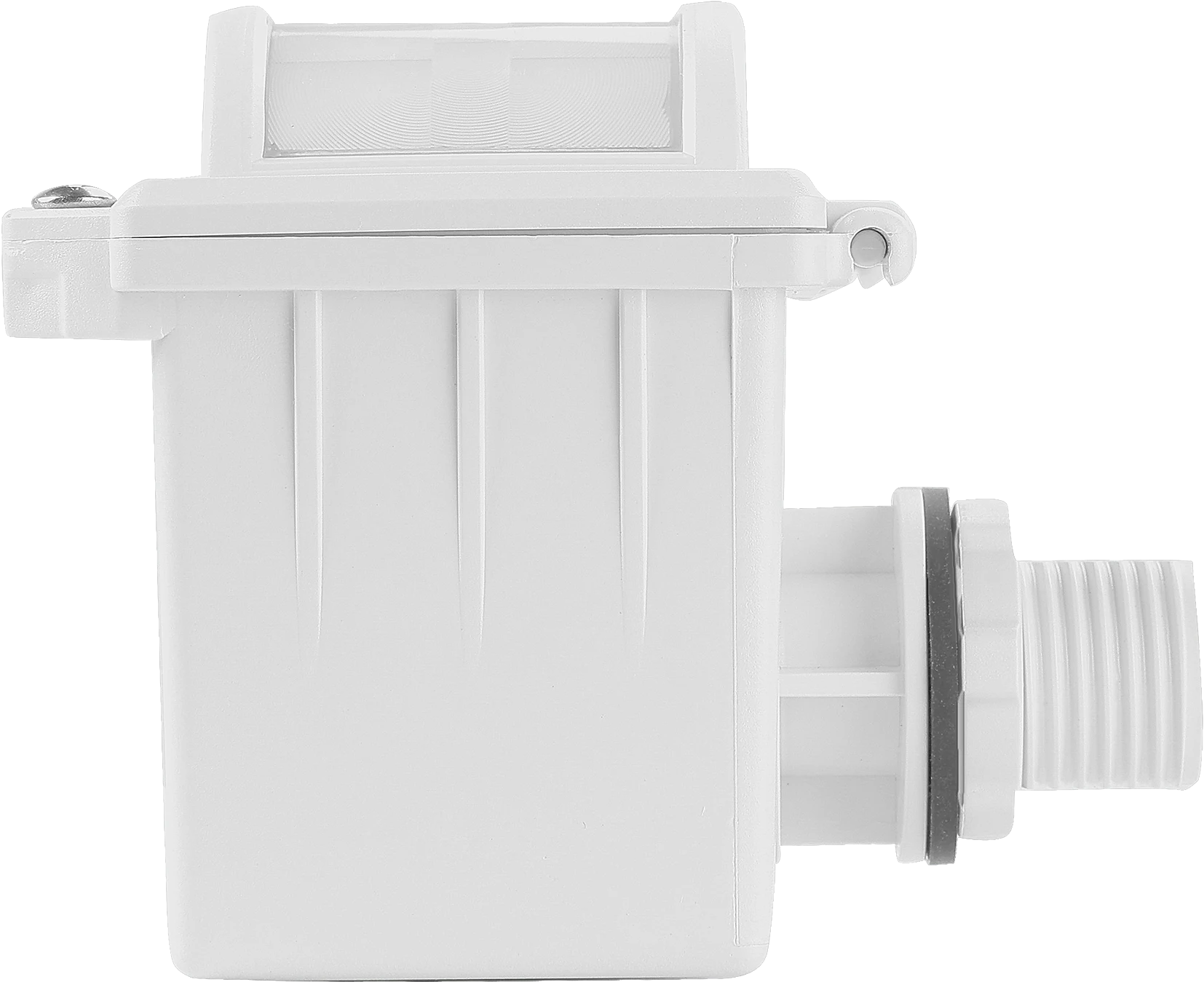

HIM30 is an IP65 High Bay Dual Sense Sensor featuring both HF and PIR technologies. It provides On/Off control and is suitable for high bay installations. The sensor includes a remote control and a rotary switch for easy adjustments.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | Relais On/Off |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Dual-Sense (MW+PIR) |
Erfassungsbereich (DxH): | 10×12 |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | Remote Controller |
Installationstyp: | Conduit screws |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Lens type: | High-bay |
Maximale Montagehöhe: | 12.0000 m |
Montagehöhe: | High-bay |
Product height: | 73.5000 mm |
Produktlänge: | 91.4000 mm |
Produkttiefe: | 75.0000 mm |
Schutzart: | IP65 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Taster Eingänge: | |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Warming-up: | 30 s |
Zhaga: | No |
