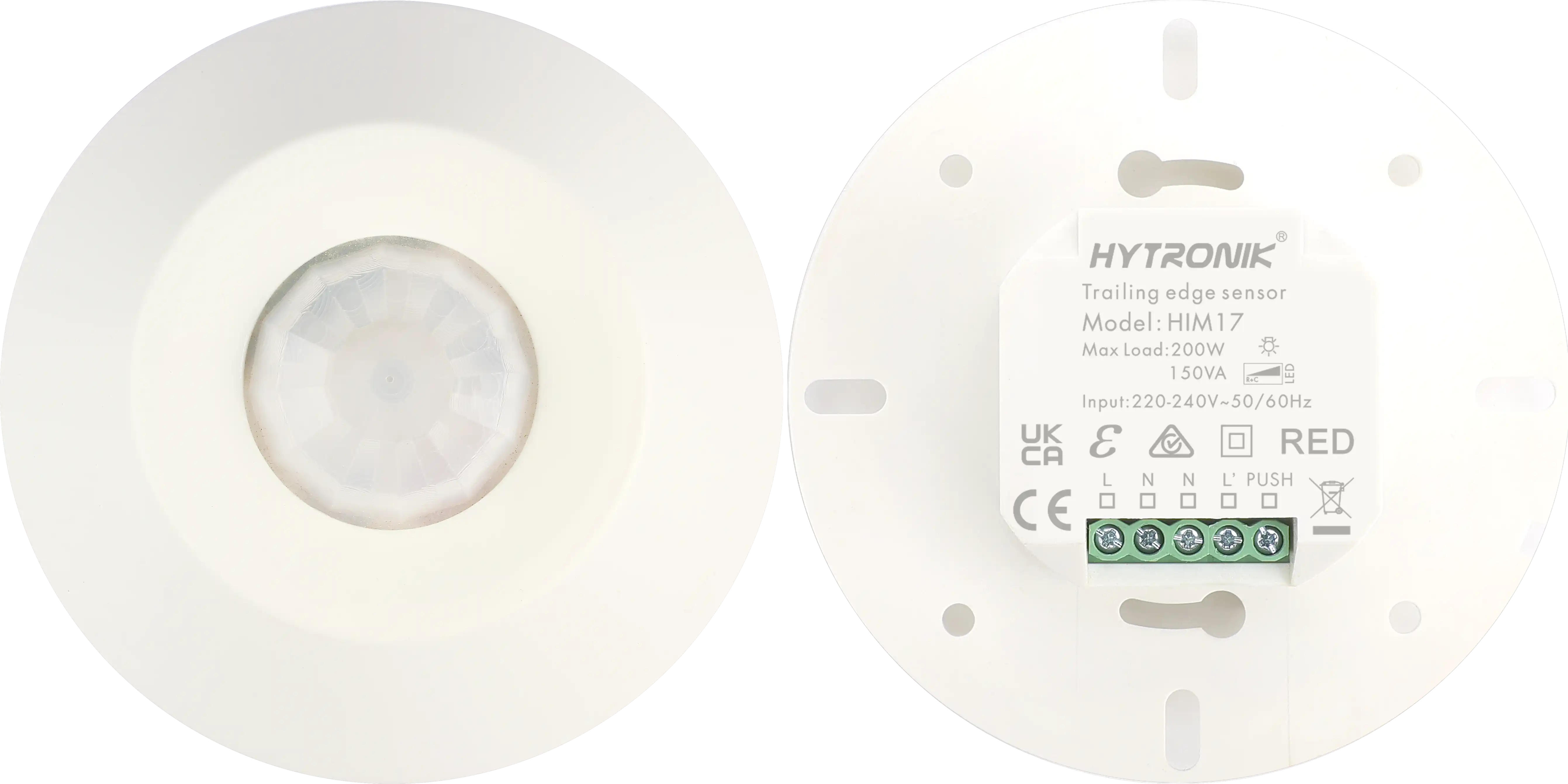

HIM17
PIR + HF Lowbay | Trailing edge + Tri-level | Remote Controller
Vorteile
- Compact: Standard rectangular sdand alone sensor design
- Simple: Trailing edge sensor with tri-level control
- User-Friendly: With one-key commissioning with Remote Control
ANWENDUNGEN
- Standalone installation for ceiling up to 6m
- Classrooms with blackboards and student zones
- Offices with two zones
Produktinformationen "HIM17"
HIM17 is a standalone dual sense motion sensor featuring both HF and PIR technologies. It operates as a trailing edge sensor and includes tri-level control functionality. This sensor allows for precise lighting adjustments based on occupancy levels, optimizing energy usage and enhancing user comfort in indoor environments.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | Trailing edge (Phasenabschnittsteuerung) |
| Befestigungsloch: | 38.6000 mm |
| Betriebsspannung: | 120 - 277 VAC |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Dual-Sense (MW+PIR) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Stand-alone |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 55.2000 mm |
| Produktlänge: | 109.0000 mm |
| Produkttiefe: | 109.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | 1 |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
