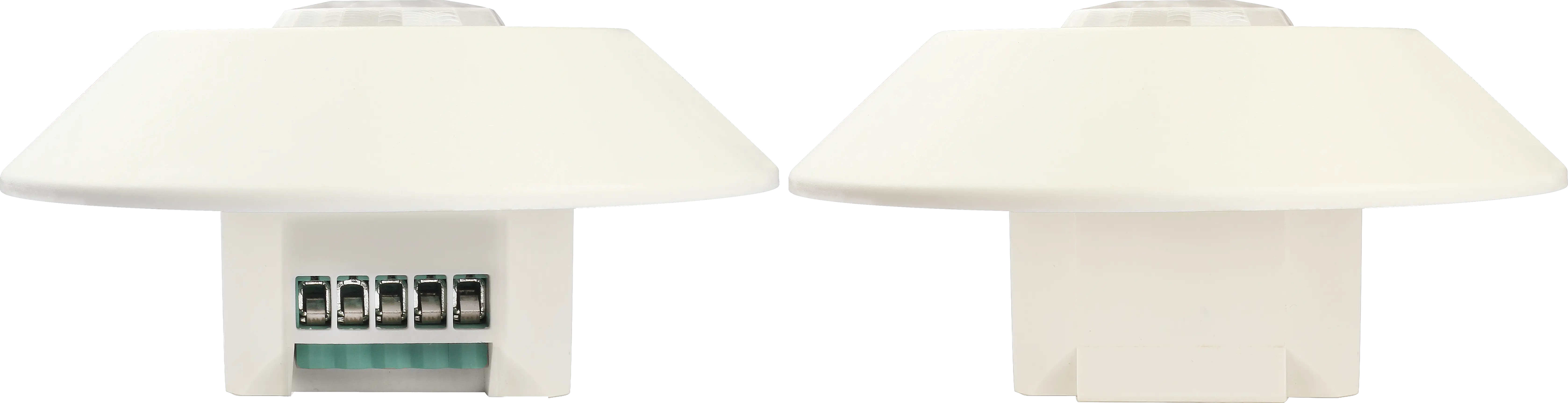

HIM16
PIR + HF Lowbay | Trailing edge + Dayligh harvest | Remote Controller
Vorteile
- Compact: Standard rectangular sdand alone sensor design
- Simple: trailing edge sensor with daylight harvest
- User-Friendly: With one-key commissioning with Remote Control
ANWENDUNGEN
- Classrooms with blackboards and student zones
- Classrooms
- Offices with two zones
Produktinformationen "HIM16"
HIM16 is a standalone dual sense motion sensor equipped with both HF and PIR technologies. It operates as a trailing edge sensor and includes daylight harvesting capabilities. This sensor is designed to optimize energy efficiency by adjusting lighting levels based on occupancy and available natural light, making it suitable for various indoor environments.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | Trailing edge (Phasenabschnittsteuerung) |
| Befestigungsloch: | 38.6000 mm |
| Betriebsspannung: | 120 - 277 VAC |
| Daylight Harvest: | Ja |
| Detektionsverfahren: | Dual-Sense (MW+PIR) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Daylight Harvest |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Stand-alone |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 55.2000 mm |
| Produktlänge: | 109.0000 mm |
| Produkttiefe: | 109.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | 1 |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
