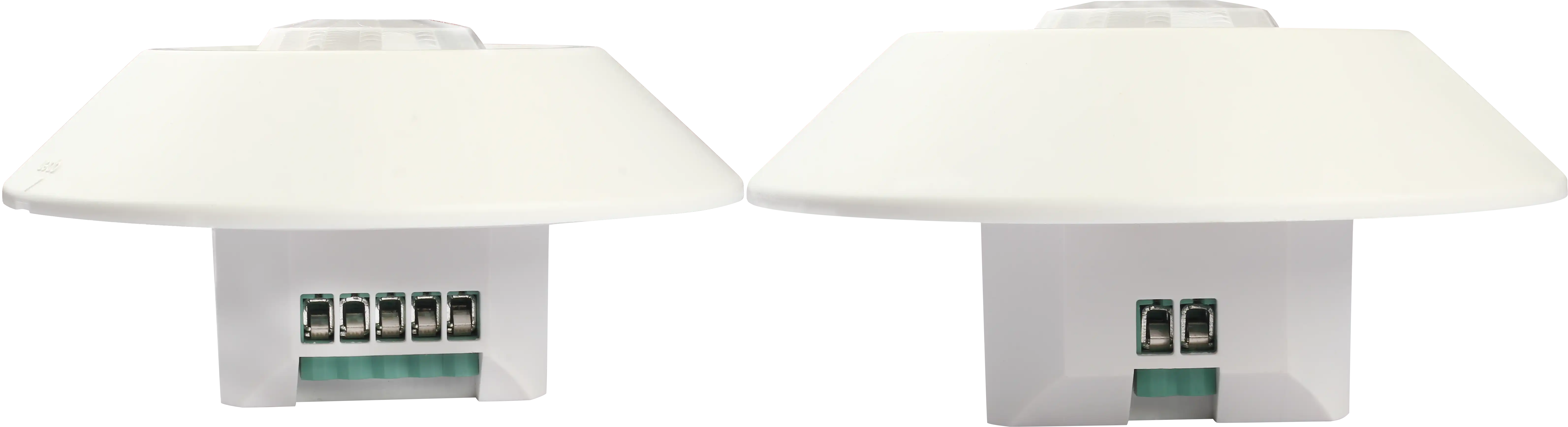

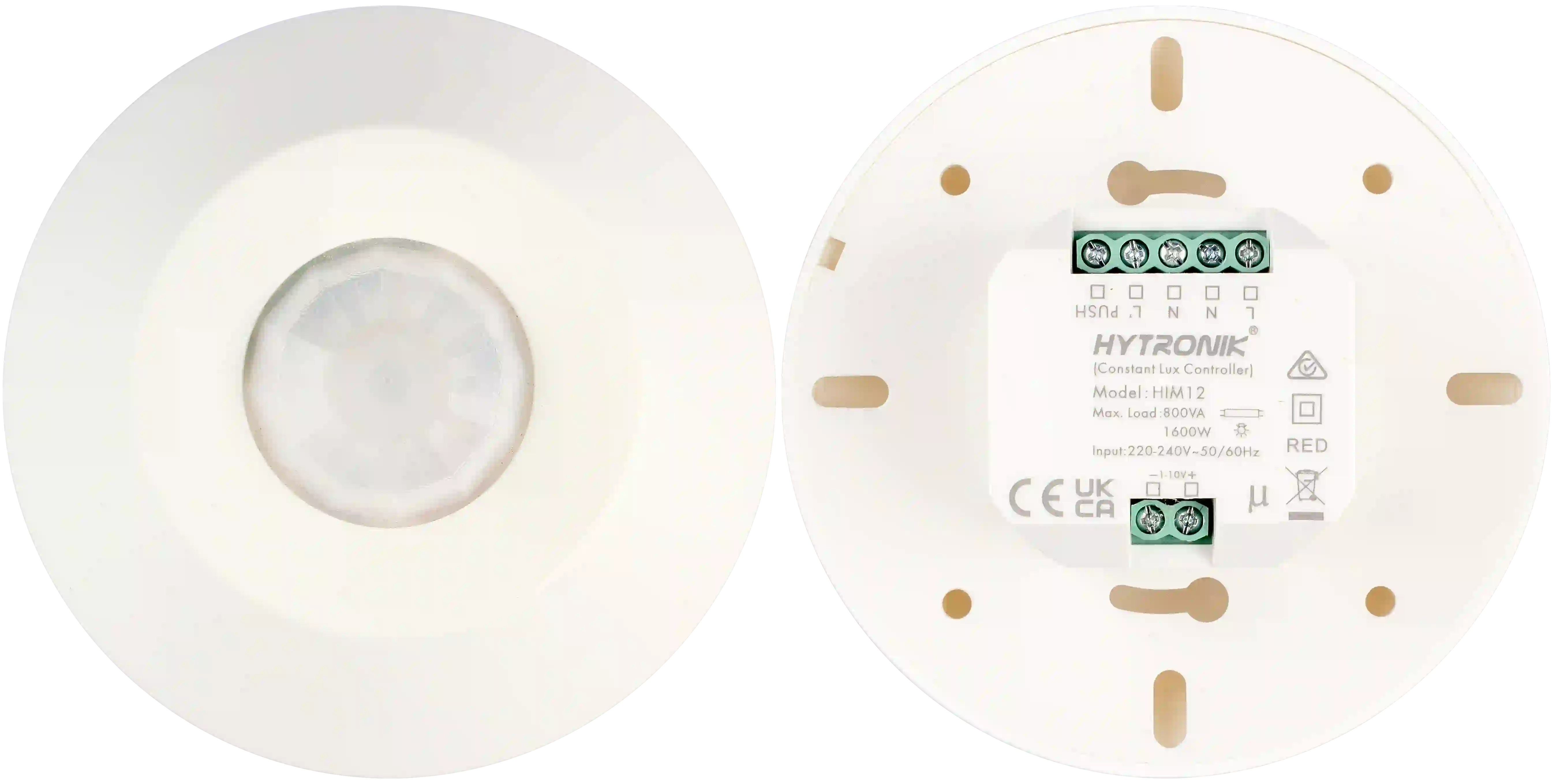

HIM12
PIR + HF Lowbay | Daylight Harvest | Remote Controller
Vorteile
- Compact: Standard rectangular sdand alone sensor design
- Simple: Daylight harvest with photocell
- User-Friendly: With one-key commissioning with Remote Control
ANWENDUNGEN
- Standalone installation for ceiling up to 6m
- Classrooms
- Offices
Produktinformationen "HIM12"
HIM12 is a standalone dual sense motion sensor equipped with both HF and PIR technologies. It offers daylight harvest feature and comes with a remote control for easy adjustments, making it ideal for efficient lighting management.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | 1-10V |
Befestigungsloch: | 38.6000 mm |
Betriebsspannung: | 120 - 277 VAC |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Dual-Sense (MW+PIR) |
Erfassungsbereich (DxH): | 12x6 |
Features: | Daylight Harvest |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Nein |
Inbetriebnahmemethoden: | Remote Controller |
Installationstyp: | Stand-alone |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Lens type: | Standard Low-bay |
Maximale Montagehöhe: | 3.0000 m |
Montagehöhe: | Low-bay |
Product height: | 69.1000 mm |
Produktlänge: | 109.0000 mm |
Produkttiefe: | 109.0000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Taster Eingänge: | 1 |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Zhaga: | No |
