HIM049V
HF+PIR Ultra HighBay | ON/OFF/0-10V | IP65/Batten-fit/Bolt-on mount
Vorteile
- High accuracy: DUAL Sense with HF and PIR technology
- 2 in1: 0-10V dimming + ON/OFF control
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Batten-fit/Bolt-on mount style
- Industry
- Warehouses
Produktinformationen "HIM049V"

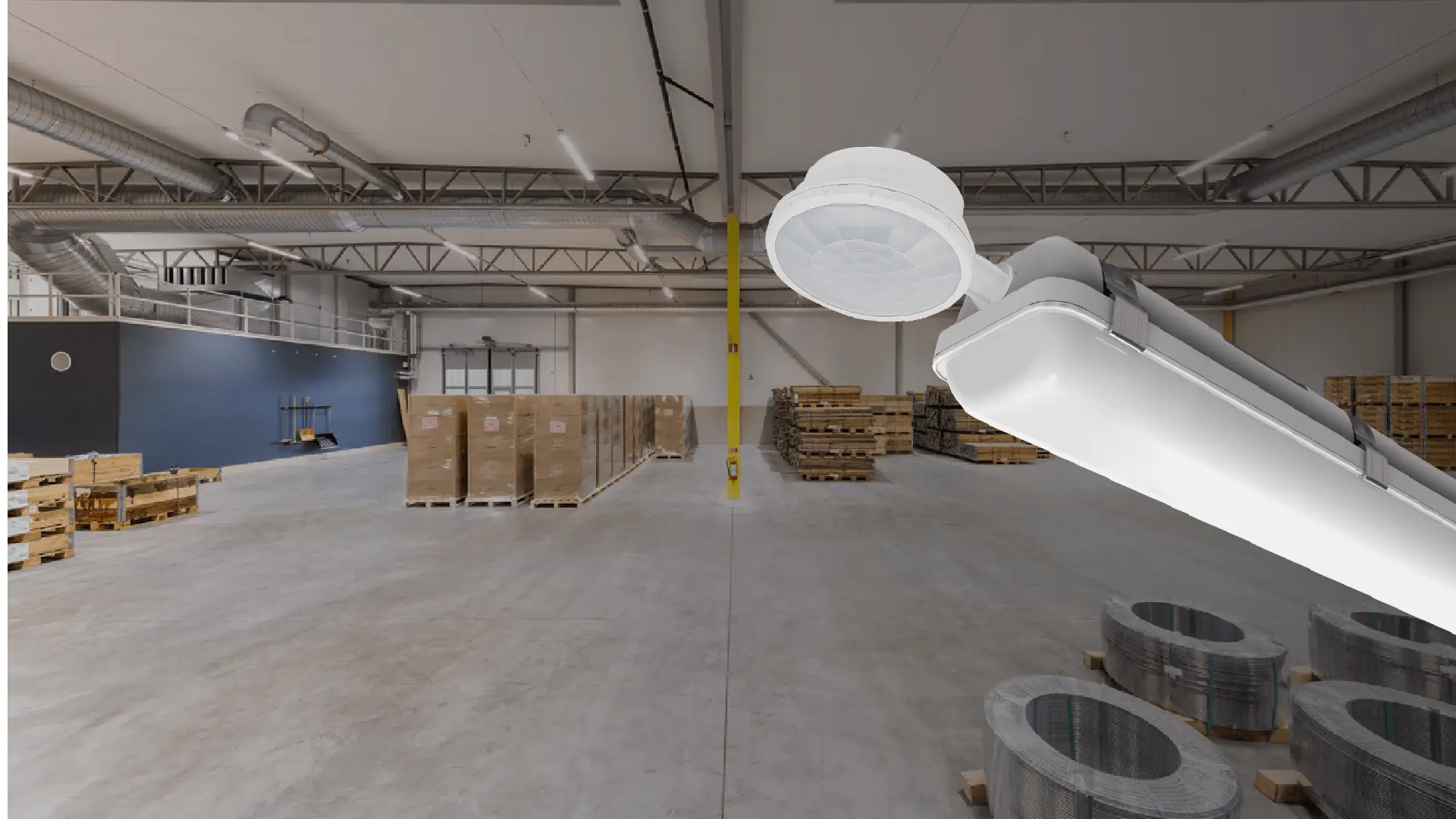

HIM049V is a 0-10V ultra high-bay Dual-senseTM motion sensor (Microwave + PIR) with on/off relay control, designed for batten-style luminaires. It's IP65 rated and perfect for Industry , warehouses, and other commercial/industrial areas.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | 0-10V |
| Befestigungsloch: | 75.0000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Daylight Harvest: | Nein |
| Detection angle: | 360° |
| Detektionsverfahren: | Dual-Sense (MW+PIR) |
| Erfassungsbereich (DxH): | 28×21 |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Batten Mount |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Ultra high-bay |
| Maximale Montagehöhe: | 21.0000 m |
| Montagehöhe: | Ultra High Bay |
| Product height: | 48.3000 mm |
| Produktlänge: | 138.0000 mm |
| Produkttiefe: | 94.0000 mm |
| Schutzart: | IP65 |
| Taster Eingänge: | |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
