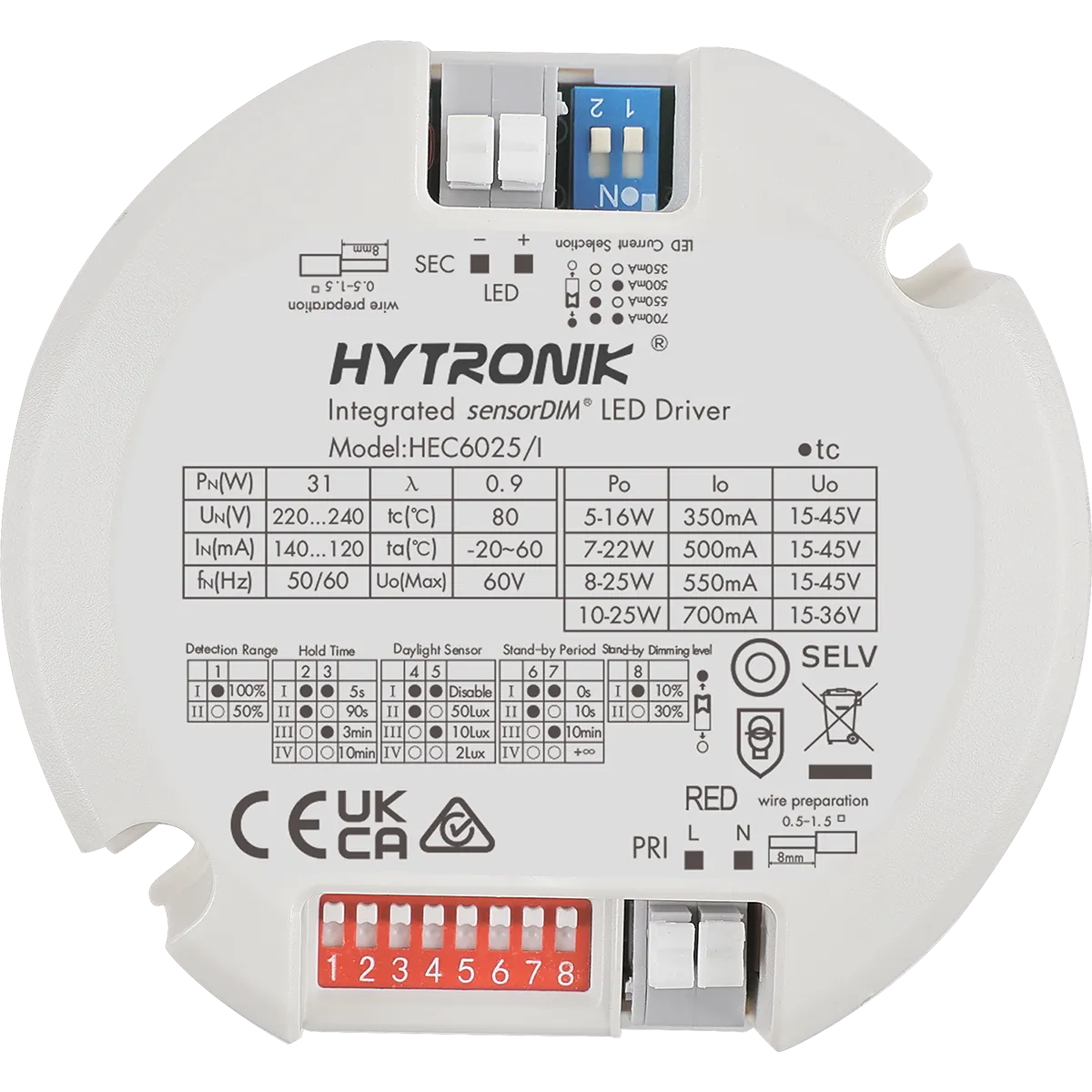

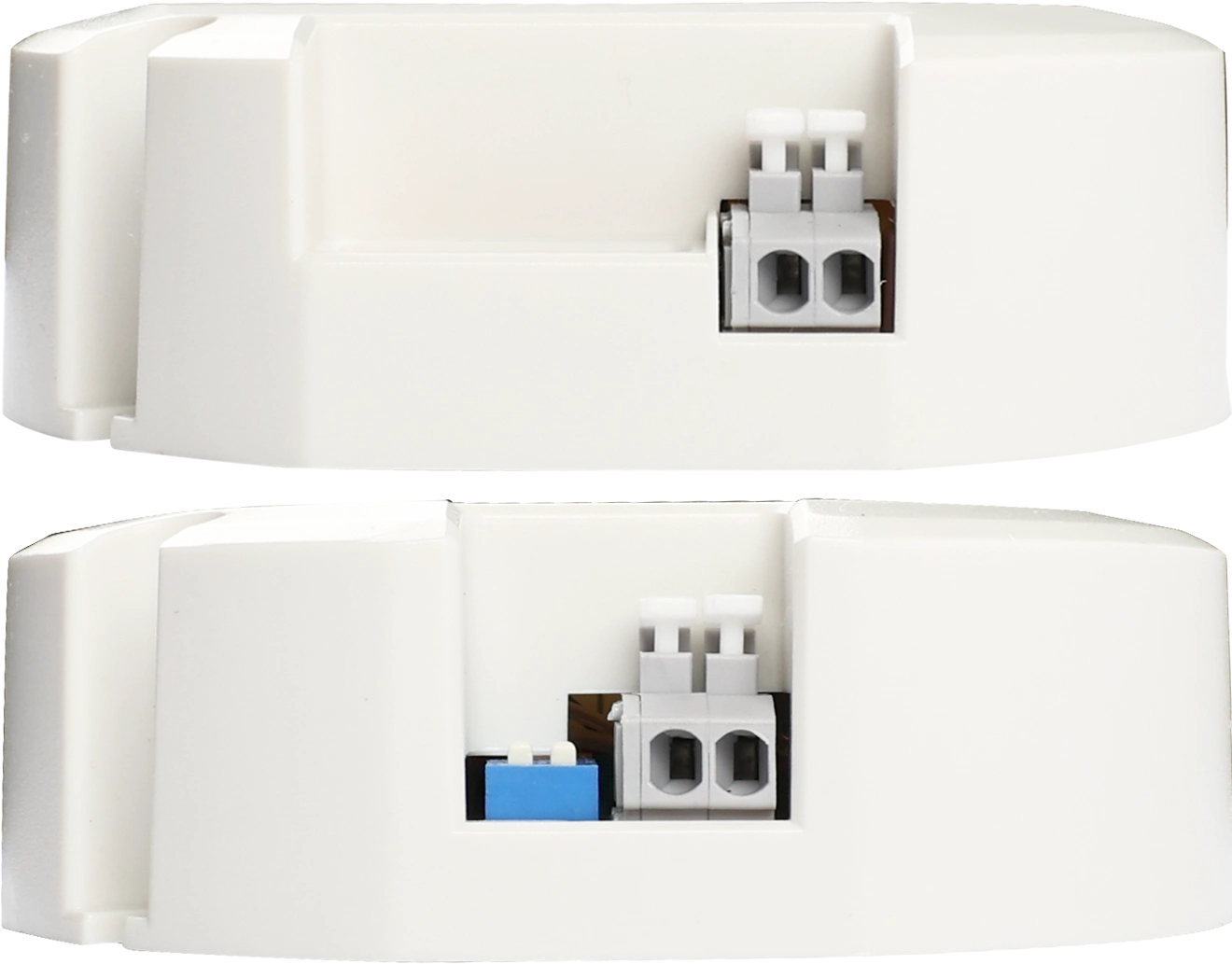

HEC6025/I
LED Driver + HF Sensor | 5-25W | Photocell Advance
Vorteile
- Compact: 8.2cm diameter to fit in the luminaire
- 2-in-1: 25W driver + occupancy sensor up to 6m
- Easy control: Corridor function and Dip-switch config
ANWENDUNGEN
- Retrofit and new luminaire designs/installations
- Meeting Room
- Classroom, Office, Commercial Lighting
Produktinformationen "HEC6025/I"
HEC6025/I is integrated HF Sensor and LED Driver with maximum power output of 31W. Such 2 in 1 integrated design is a very cost-effective solution, it is ideal for new luminaires design for lighting manufacturers. It comes with Switch-Dim interface by using Push switch (retractive switch).
| Ausgangsleistung: | 5W~25W |
|---|---|
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Daylight Harvest: | Ja |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | DIP-switch |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 26.5000 mm |
| Produktlänge: | 82.0000 mm |
| Produkttiefe: | 82.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 60 °C |
| Umgebungstemperatur min.: | -20 °C |
| Warming-up: | 20 s |
| Wirkungsgrad: | 84 % |
| Zhaga: | No |
