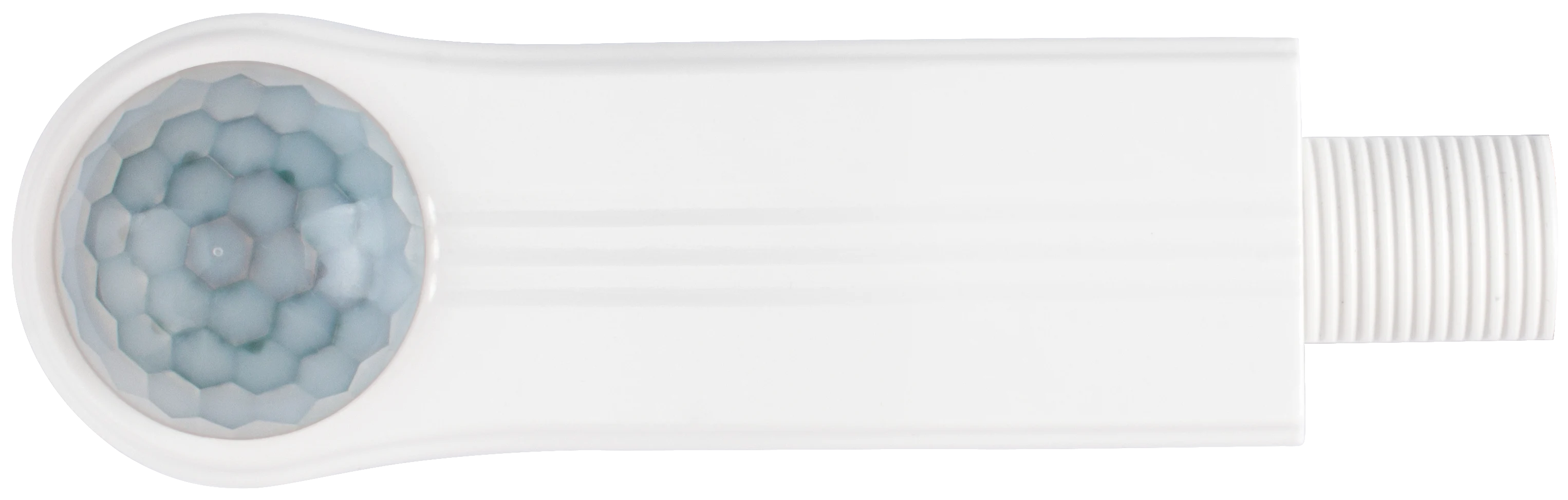

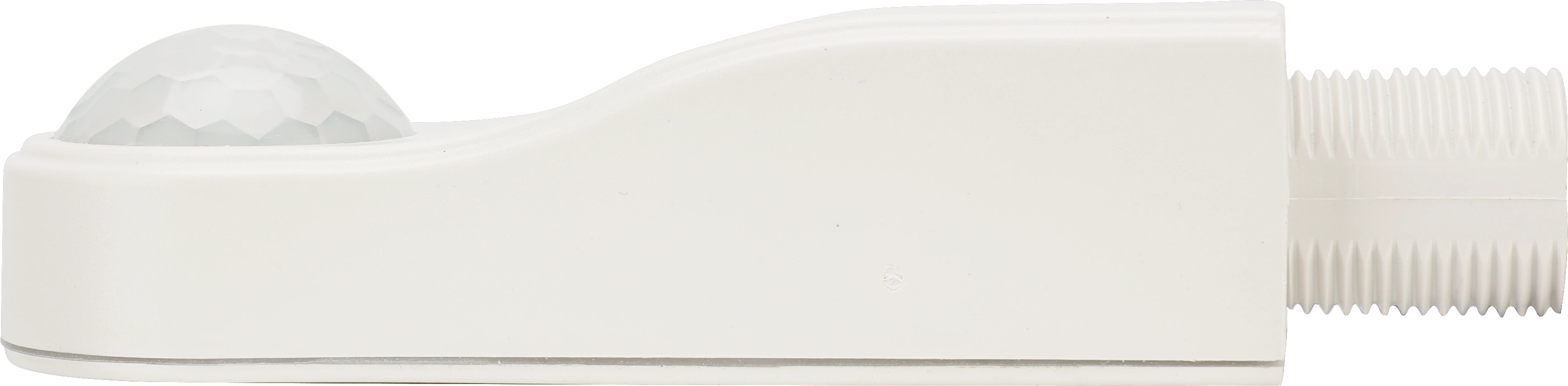

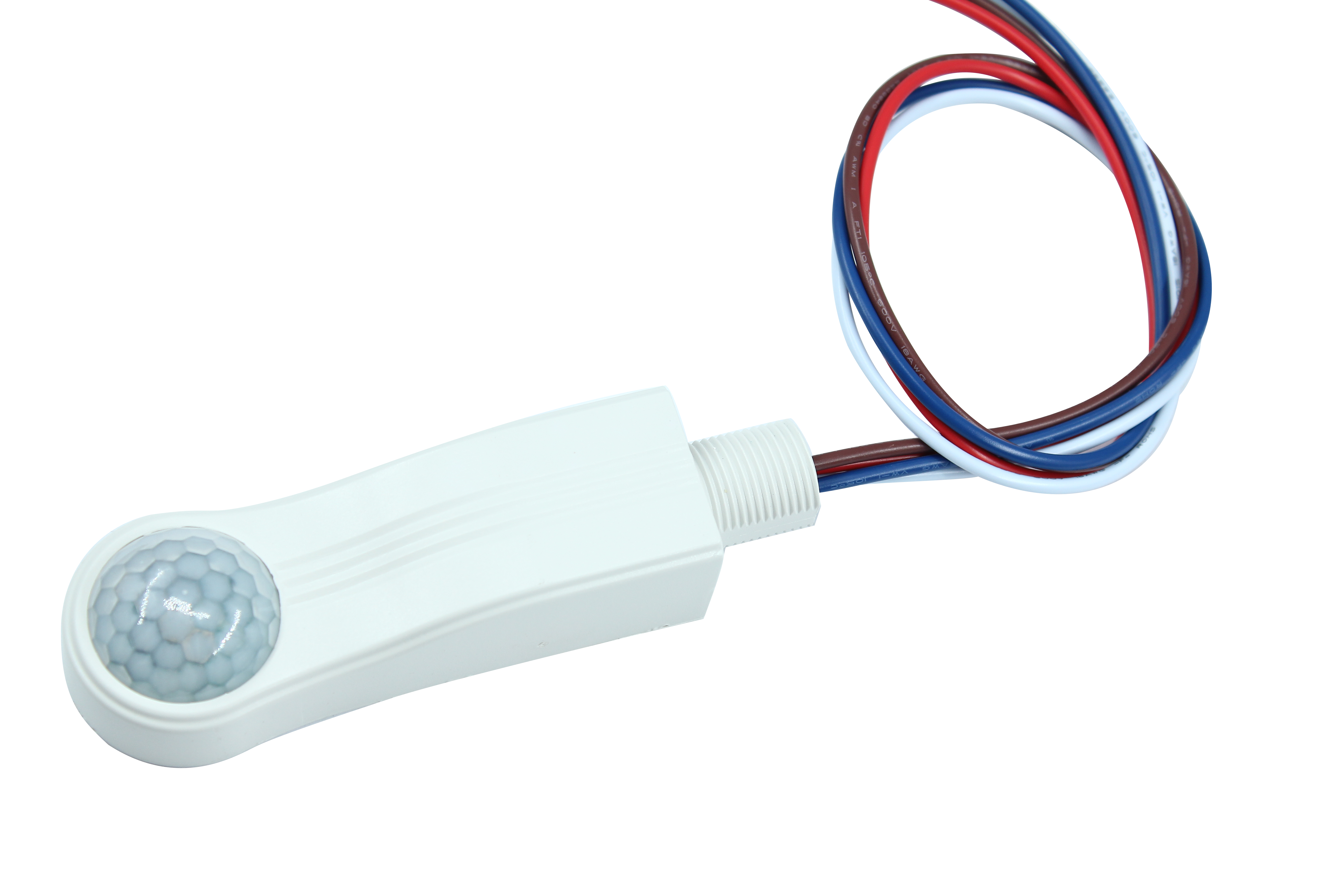

HCD049
PIR Highbay | DALI and IR Controller | Batten-fit/Bolt-on mount
Vorteile
- Adaptable: Removable shielding accessory for different detection ranges
- Efficient: With 30mA DALI Broadcast output
- User-Friendly: With one-key commissioning with IR controller
ANWENDUNGEN
- Batten-fit/Bolt-on mount style

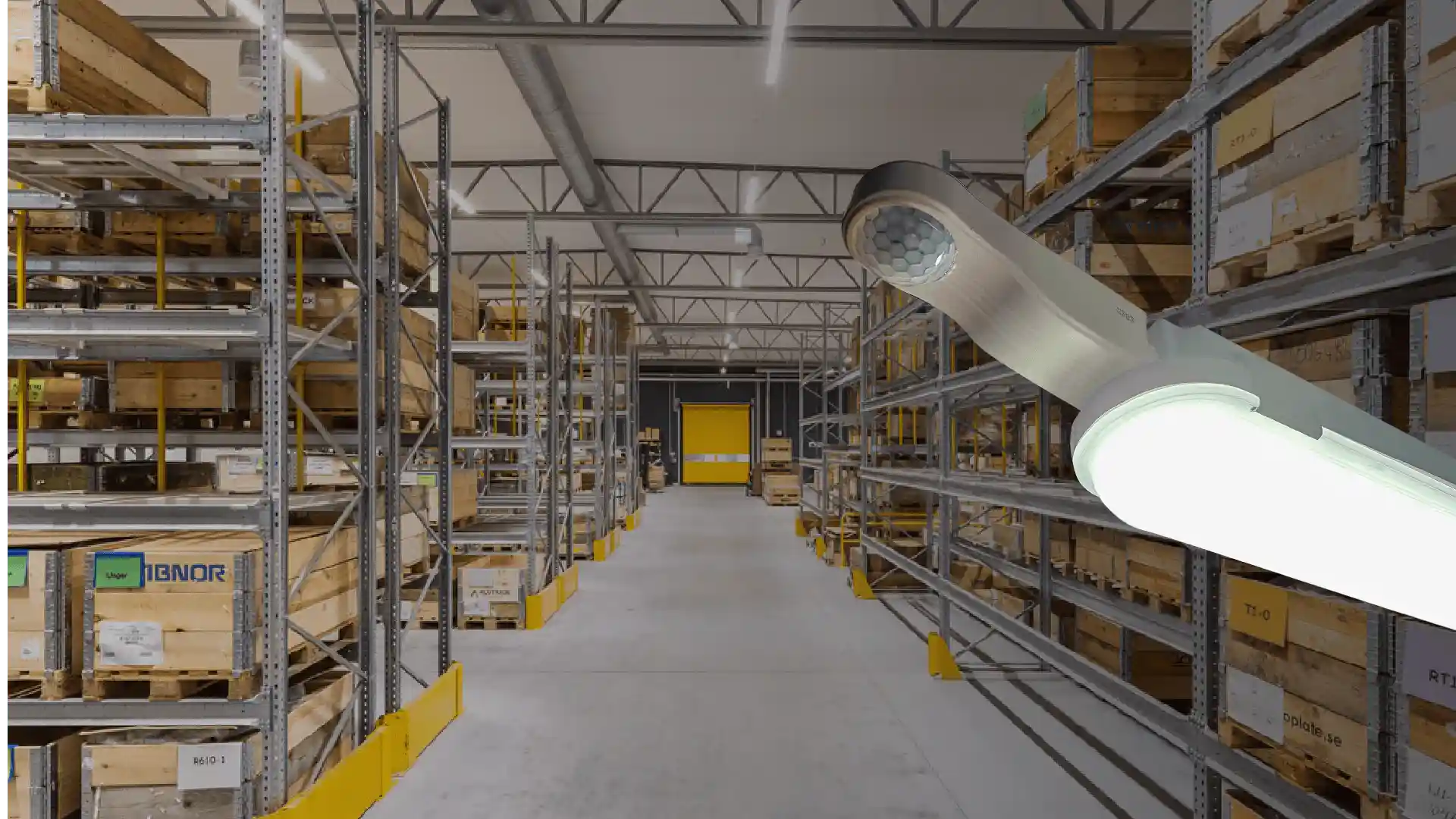

- Warehouse, Industry
- Offices, Classrooms
Produktinformationen "HCD049"
HCD049 is a DALI-2 high-bay PIR motion sensor, with capability of up to
15m installation height. HCD049 has a daylight sensor built-in, and is
specifically designed for mounting onto a batten style luminaire. All sensor
parameters can be programmed through remote controller HRC-11.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | DALI & DALI-2 |
| Befestigungsloch: | 40.0000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 10×12 |
| Erforderlicher DALI-Strom: | 30.0000 mA |
| Features: | Daylight Harvest |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 0 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Batten Mount |
| Lagertemperatur: | 80 °C |
| Lagertemperatur min.: | -30 °C |
| Lens type: | High-bay |
| Maximale Montagehöhe: | 12.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 28.2000 mm |
| Produktlänge: | 107.0000 mm |
| Produkttiefe: | 34.0000 mm |
| Schutzart: | IP65 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
