HC419VRC/DH
HF Lowbay | Photocell Advance | Setting via Dip-Switch/IR controller
Vorteile
- Compact: Super compact size - Daylight harvest Sensor
- Flexibale: Synchronization Contro in maximum 10pcs
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch/ IR controller
ANWENDUNGEN
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Produktinformationen "HC419VRC/DH"

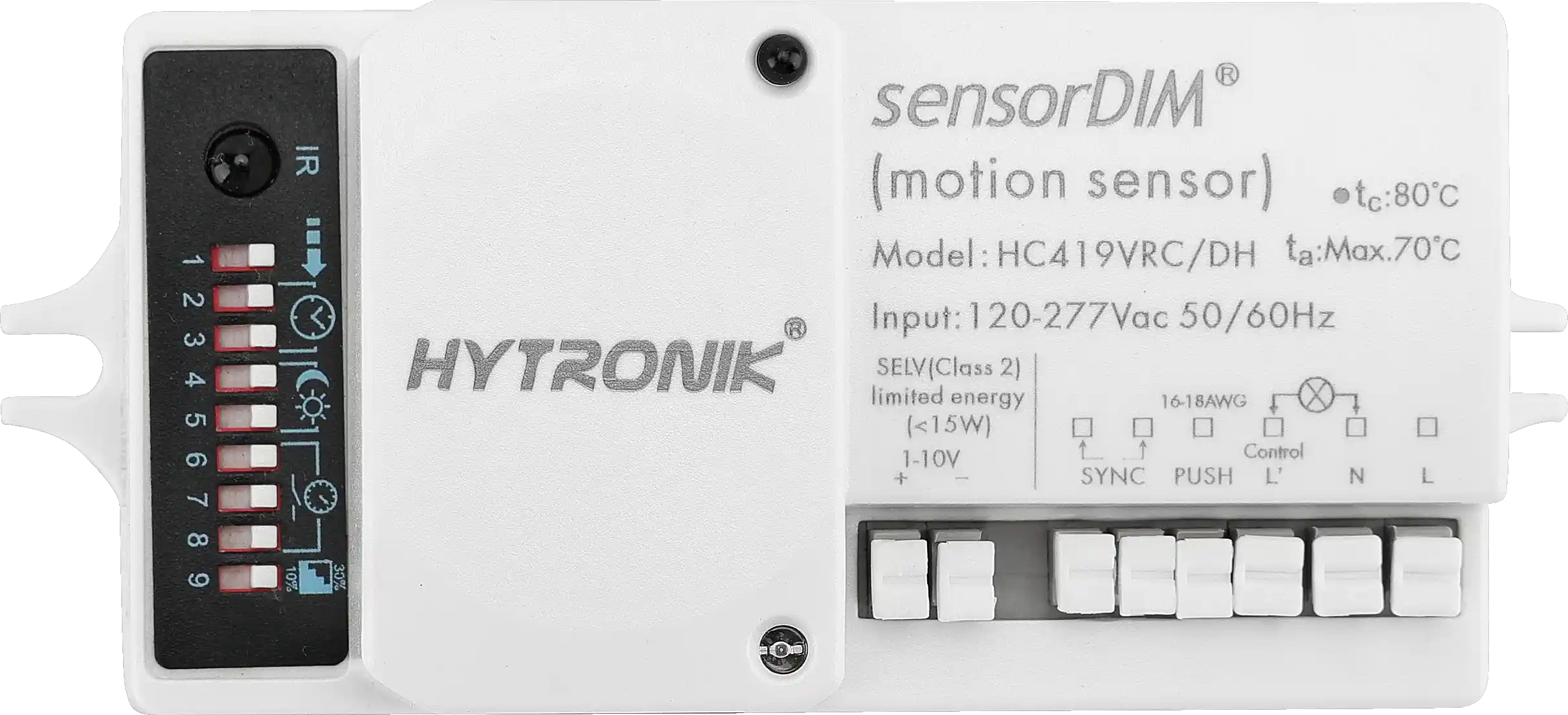

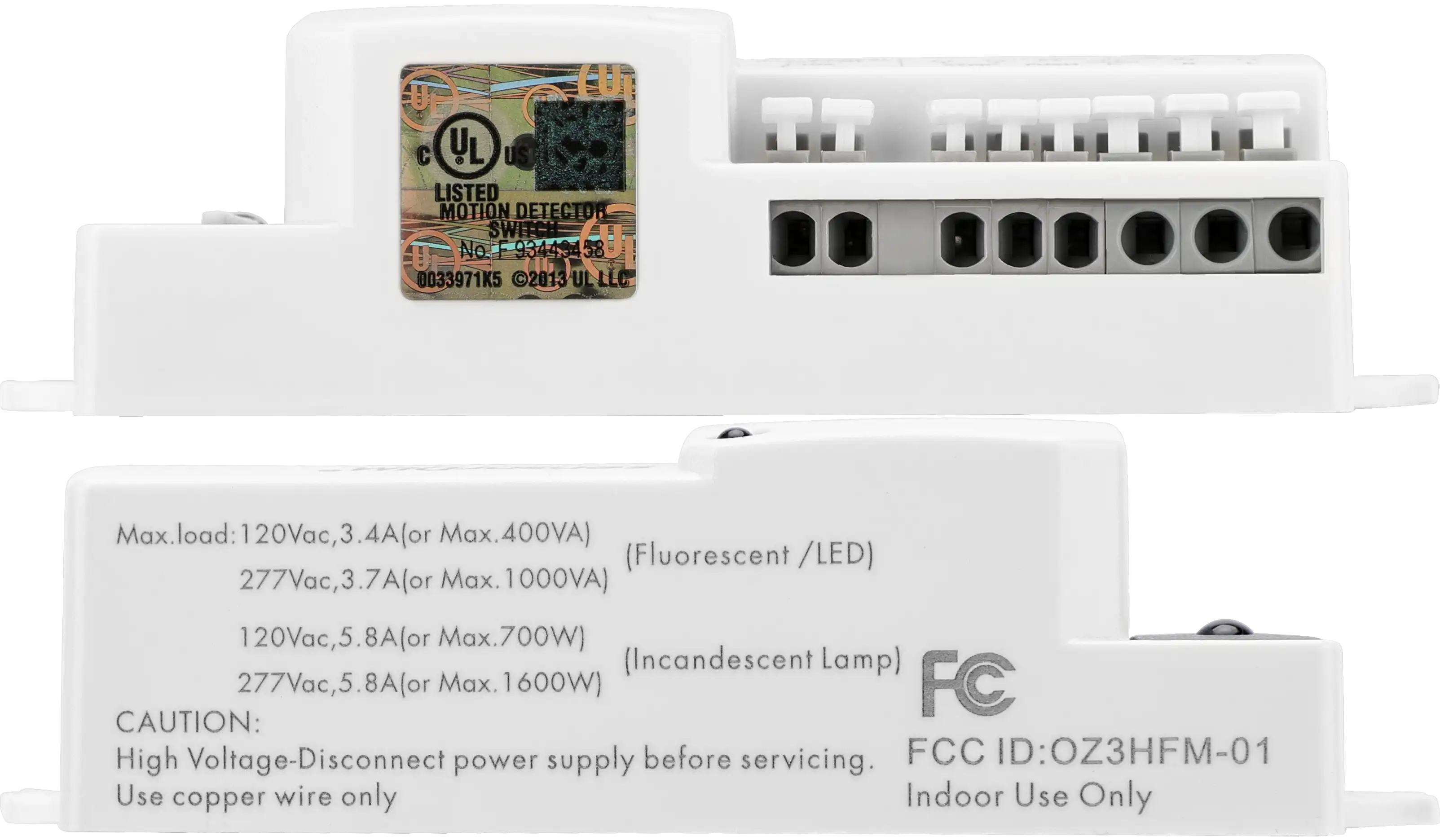

HC419VRC/DH is a built-in HF motion sensor featuring 1-10V dimming control and relay output. It utilizes Photocell Advance™ for daylight sensing. Sensor settings can be configured via DIP-Switches and handset HRC-11. It also supports Switch-Dim (PUSH) operation and includes a Sync terminal for synchronized control.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | 1-10V |
| Betriebsspannung: | 120 - 277 VAC |
| Daylight Harvest: | Ja |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Erfassungsbereich (DxH): | 12x6 |
| Features: | Daylight Harvest, Human Centric Lighting |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | Remote Controller |
| Installationstyp: | Built-in |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | Mid Bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 28.0000 mm |
| Produktlänge: | 102.0000 mm |
| Produkttiefe: | 45.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Photocell Advance |
| Tri-level (Korridorfunktion): | Nein |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
