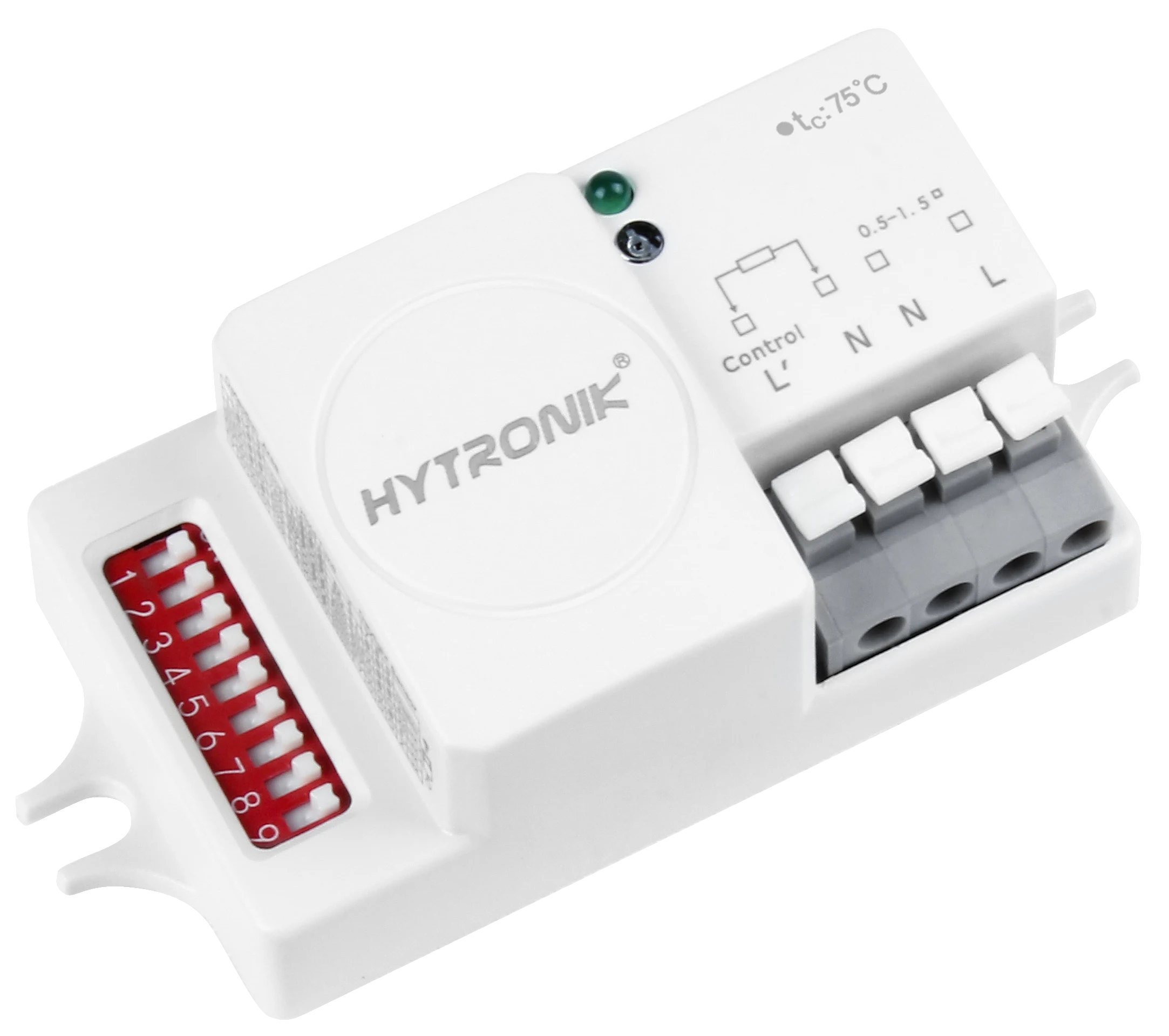

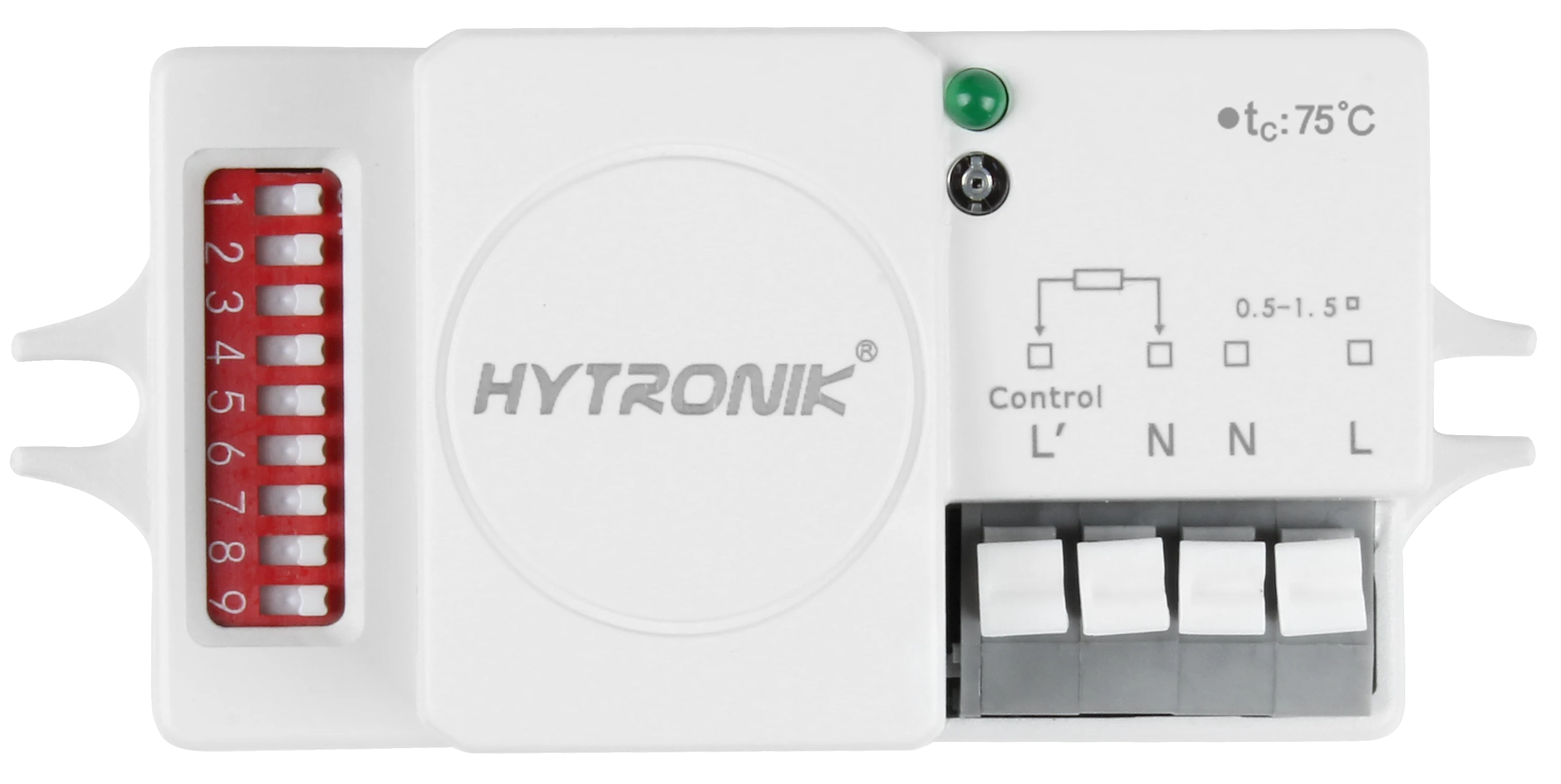

HC005S/H
HF-Hochbay | ON/OFF über Dip-Schalter | Fotozelle Advance
FEATURES
- Kompakt: Super kompakte Größe - ON/OFF Sensor
- Einfach: Konfiguration von Tageslicht, Erfassungsbereich und Haltezeit über Dip-Switch
- Robust: Nulldurchgangs-Erkennungsschaltung für erhöhte Lebensdauer des Relais
ANWENDUNGEN
- Für runde Leuchten bis zu 15 m Höhe
- Industrie
- Lagerhaus
Produktinformationen "HC005S/H"
HC005S/H ist ein Präsenzmelder mit Ein/Aus-Steuerung, der für den Einsatz in Innenräumen geeignet ist.
| Anschlusstyp: | 2-adrig |
|---|---|
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Detektionsbereich (Durchmesser): | 24x15 |
| Detektionsverfahren: | Mikrowellensensor (MW) |
| Detektionswinkel: | 30° - 150° |
| Dimm-Steuersignal: | Relais An/Aus |
| Einbauöffnung: | 4.2000 mm |
| Einschwingzeit: | 10 s |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | DIP-Schalter |
| Installationstyp: | Einbau |
| Lagertemperatur: | 70 °C |
| Max. Luftfeuchtigkeit: | 90 % |
| Maximale Montagehöhe: | 14.0000 m |
| Min. Lagertemperatur: | -40 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Montagehöhe: | Mid & High-bay |
| Produktbreite: | 36.5000 mm |
| Produktgewicht: | 54.0000 g |
| Produkthöhe: | 23.5000 mm |
| Produktlänge: | 80.5000 mm |
| Spannungsart: | AC |
| Tageslichtsensor-Option: | Fortgeschrittene Fotowiderstand |
| Tageslichtsteuerung: | Nein |
| Umgebungstemperatur max.: | 70 °C |
| Umgebungstemperatur min.: | -20 °C |
| Zhaga: | Nein |
Datenblätter
Produktdatenblatt: hc005s-h.pdf
