DS05
Daylight Sensor | ON/OFF | Photocell Advance
Vorteile
- Compact: Super compact size - ON/OFF Daylight Sensor
- Autonomous: On/Off occupancy control for up to 800W
- Easy: Dayligh settings via Dip-Switch/IR controller
ANWENDUNGEN
- For round shape luminaire
- Office / Meeting rooms
- Schools / Classroom
Produktinformationen "DS05"
DS05 can built
inside the fixture completely. The fixture is effectively controlled by the
Photocell AdvanceTM daylight sensor, automatic on/off operation based
upon daylight.
Anschlusstyp: | Standard 2 cables |
---|---|
Ausgangsschnittstelle: | Relais On/Off |
Befestigungsloch: | 4.2000 mm |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Daylight Harvest: | Ja |
Detection angle: | 30° - 150° |
Detektionsverfahren: | No motion (nur Tageslicht) |
Features: | Manuelle Übersteuerung |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Nein |

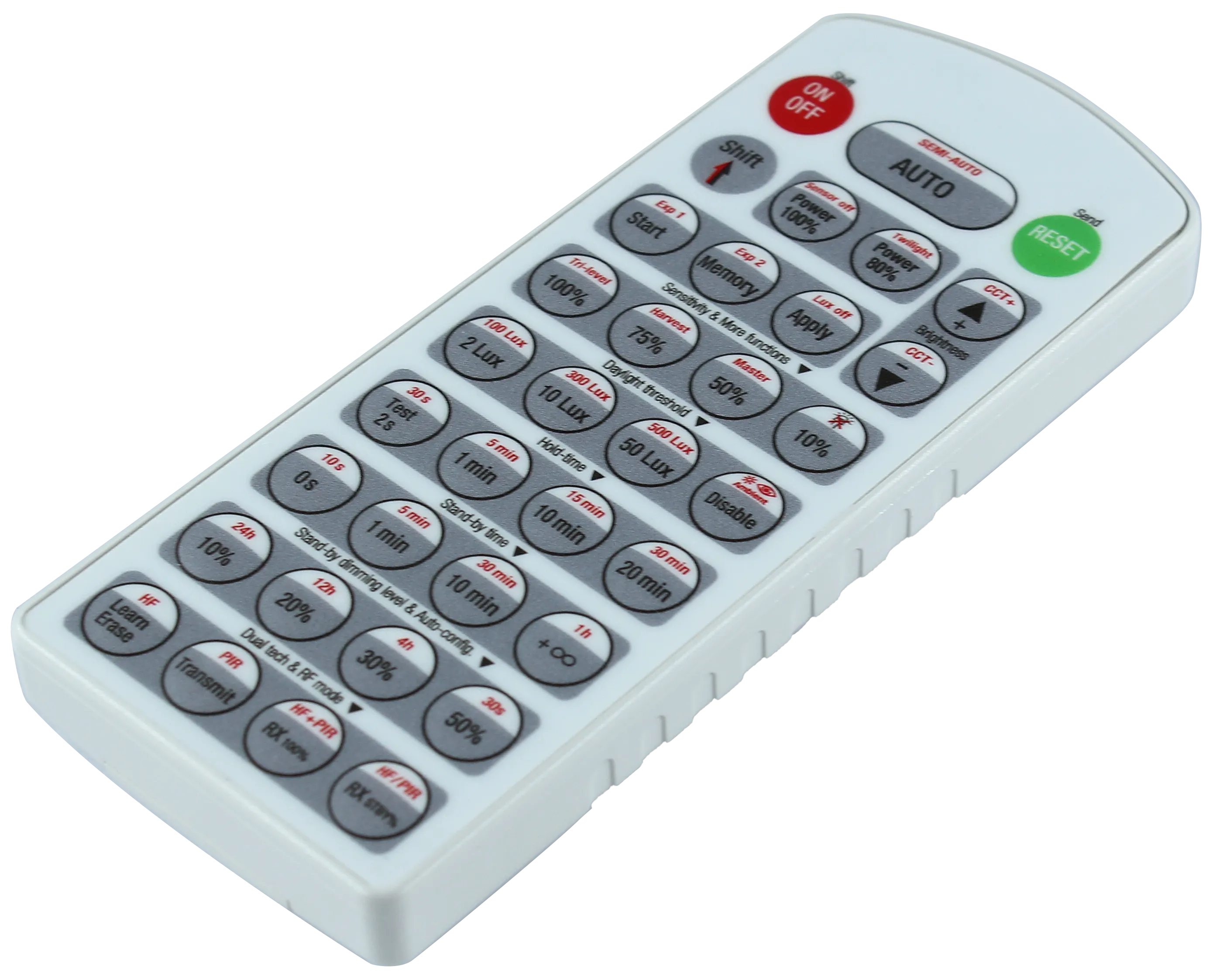

Inbetriebnahmemethoden: | Remote Controller |
Installationstyp: | Built-in |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Product height: | 24.9000 mm |
Produktlänge: | 80.5000 mm |
Produkttiefe: | 36.5000 mm |
Schutzart: | IP20 |
Tageslicht Sensor Option: | Photocell Advance |
Taster Eingänge: | |
Tri-level (Korridorfunktion): | Nein |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | AC |
Warming-up: | 20 s |
Zhaga: | No |
